User Manual for American DJ 4-Stream DMX Bridge for ADJ Airstream DMX Pro Click to enlarge the picture
Contents of the user manual for the American DJ 4-Stream DMX Bridge for
- Product category: DMX Devices American DJ
- Brand: American DJ
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for American DJ DMX Devices
 |
User manual for the American DJ 4-Stream DMX Bridge for contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any American DJ product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official American DJ user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a American DJ product will considerably shorten its lifespan!
|

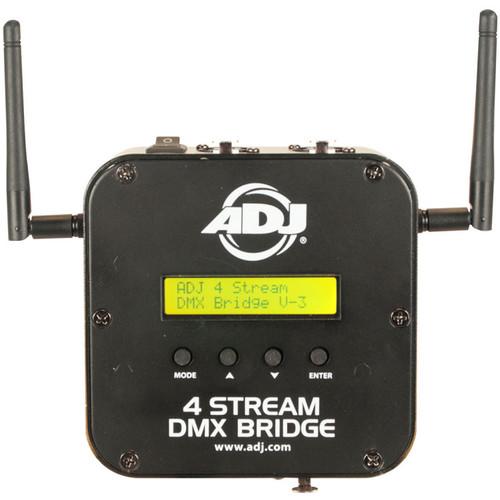

Product description The American DJ 4-Stream DMX Bridge is a compact 4-universe wired/wireless device which seamlessly bridges Wi-Fi, Art-Net, sACN, and WiFly signals to control compatible DMX devices using the iOS Airstream DMX Pro app and is well suited for small production events, nightclubs, bars, or any event or venue which requires hidden data cables and who are looking for a robust, 4 DMX universe APP-based lighting control solution.
The 4-Stream DMX Bridge creates a private, standalone 2.4 GHz Wi-Fi network, which is capable of coexisting in busy RF environments alongside other wireless technologies, ensuring a constant and wireless DMX signal to control compatible DMX devices via DMX-512, Art-Net, sACN, or WiFly.

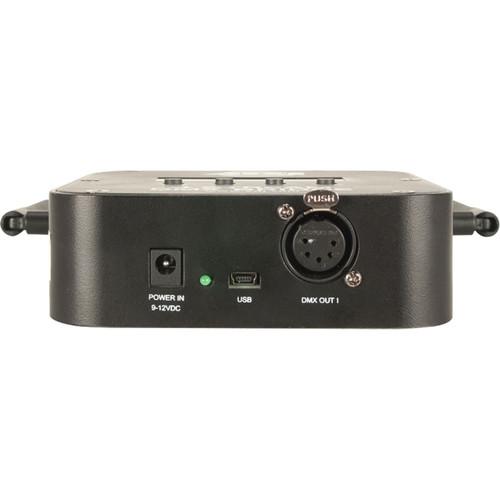

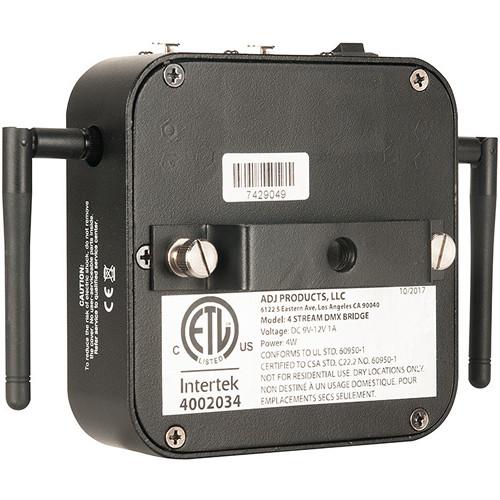

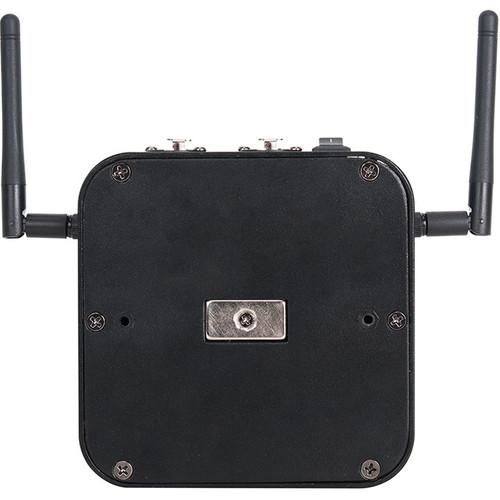

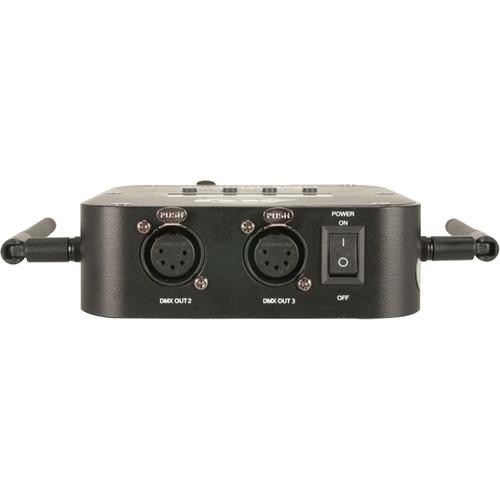

Other notable features include separate Wi-Fi and WiFly wireless antennas, three 5-pin DMX outputs, a mini-USB port, a 4-button control panel, an LCD system menu display with an LED network activity signal indicator, on/off switch, an external 9-12 VDC power supply, a mini omega bracket for easy clamp/truss mounting, and a magnetic back for easy attachment to metal surfaces. The system also includes easy configuration from a PC connected via USB Mini-B port using the 4 Stream DMX Bridge Setup Windows app or over Wi-Fi using the ADJ 4 Stream DMX Bridge Config iOS APP. - Features
-
- Seamless wireless bridge to DMX compatible devices
- Supports standard network protocols, Art-Net, sACN, and WiFly
- Private, standalone 2.4 GHz DSSS Wi-Fi network
- No existing network needed or connect to external network
- Supports up to 4 DMX Universes (3 wired and 1 WiFly wireless)
- Control compatible WiFly devices up to 2500' away
- 14 WiFly wireless channels
- Easy clamp/truss mounting
- Magnetic back for easy attachment to metal surfaces
- Easy configuration using iOS App
- Dedicated control App with 4 DMX universes available in the Apple App store

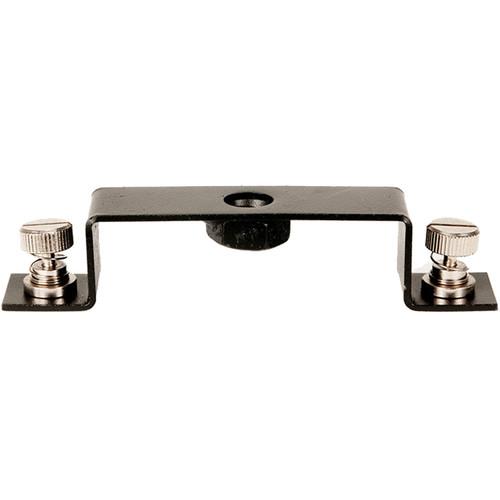

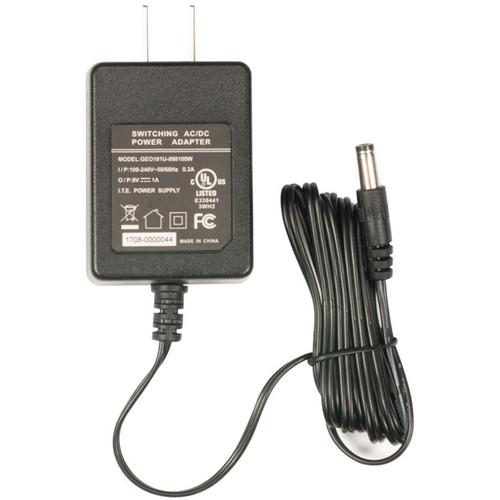

UPC: 818651026269 In the Box American DJ 4-Stream DMX Bridge for ADJ Airstream DMX Pro Mini-Omega Bracket Power Supply Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the American DJ 4-Stream DMX Bridge for ADJ Airstream DMX Pro in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersAmerican DJ 4 STREAM DMX BRIDGE Specs | DMX | DMX-512 with 4 Universes | | Supports | Standard Network Protocols, Art-Net, sACN and WiFly | | DMX Connectors | 3 x 5-Pin Neutrik DMX Data Output (Universe 1, 2, 3) | | Transceiver | ADJ WiFly Wireless DMX Transceiver (Universe 4) | | Wireless Frequency | Private Standalone 2.4 GHz DSSS Wi-Fi Network | | Wireless Range | Wi-Fi: Up to 50' / 15.2 m
EXR WiFLY (Open Line of Sight): Up to 2500' / 762 m | | Channels | 14 x WiFly Channels | | Display | LED System Menu Display
4-Button Control Panel
Status Indicator: Network Activity LED | | Mounting | Magnetic Back for Attachment to Metal Surfaces
Omega Bracket for Truss Mount | | Antennas | WiFly Antenna
Wi-Fi Antenna | | Approvals | CE | cETLus | | Temperature | 35 to 113°F / 2 to 45°C | | Power Supply | 9 to 12 VDC, 1.0 A | | Dimensions (L x W x H) | 6.9 x 5.2 x 4.9" / 175.3 x 132.8 x 124.5 mm | | Weight | 1.1 lb / 0.5 kg | | | | Package Weight | 2.4 lb | | Box Dimensions (LxWxH) | 12.0 x 7.5 x 5.6" |
Rating80% users recommend this product to others. And what about you?
This product has already been rated by 57 owners. Add your rating and experience with the product.
