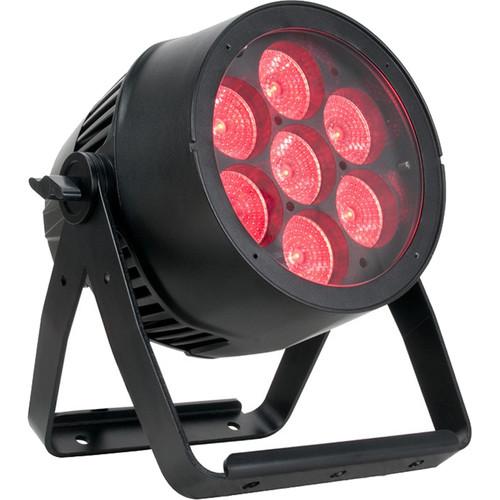

Product description The 7PZ IP from American DJ is a heavy duty, metal IP65 outdoor rated 105W LED Par with motorized zoom and WiFLY EXR wireless DMX control, well suited for professional indoor and outdoor events. The instrument features seven 15W quad (4-in-1 RGBW) LEDs with 64 built-in color macros and includes five dimming curves plus smooth 0-100% electronic dimming. The powered zoom offers a range of 5 to 45°.
There are five operational modes including Color Change, Color Fade, Auto (Program Run), Sound Active, and DMX-512, which offers 12 DMX channel modes. The 4-button LED display menu allows for easy navigation and programming. The wireless WiFLY control offers a range of up to 2500'. The instrument includes 5-pin and 3-pin DMX inputs and outputs, as well as a powerCON input and pass-through. The dual-bracket yoke allows fixtures to be hung or set on the ground. The 7PZ IP ships with a 3.3' powerCON True1 Edison power cable. - Optical
-

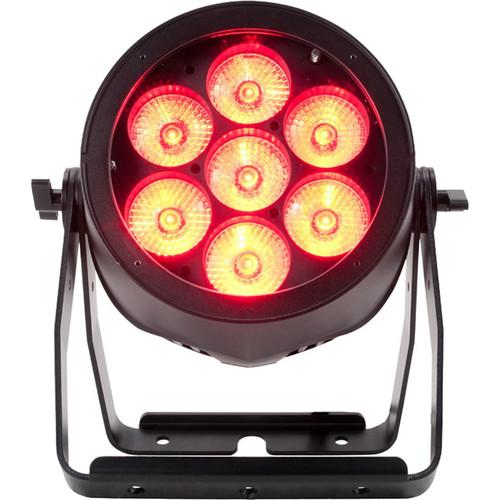

- Light Source: 7 x 15 W Quad (RGBW) LEDs
- LED Life Expectancy: 50,000 hours

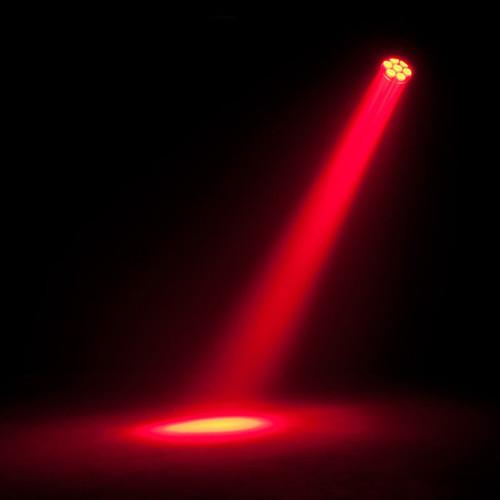

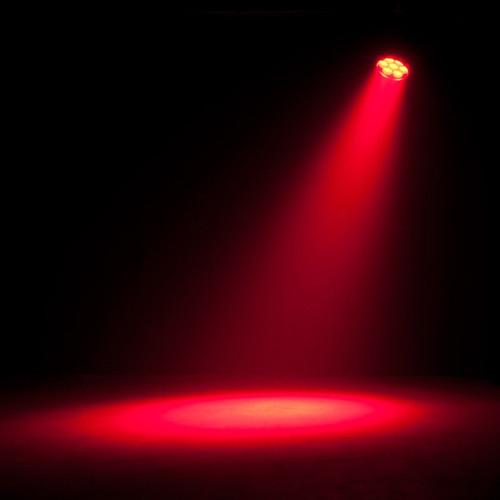

- Beam Angle: 5 to 45 degrees
- Refresh Rate: 1.8 kHz
- Features
-
- Outdoor Rated: IP65
- powerCON TRUE1 power in/out
- Motorized Zoom (5 to 45 degrees)
- Compatible with ADJ’s WiFLY EXR wireless DMX protocol
- Strobe (electronic)
- 64 built-in Color Macros
- 5 Operational Modes:
- Color Change Mode
- Color Fade Mode
- Auto (Program Run) Mode
- Sound Active Mode
- DMX-512 Mode

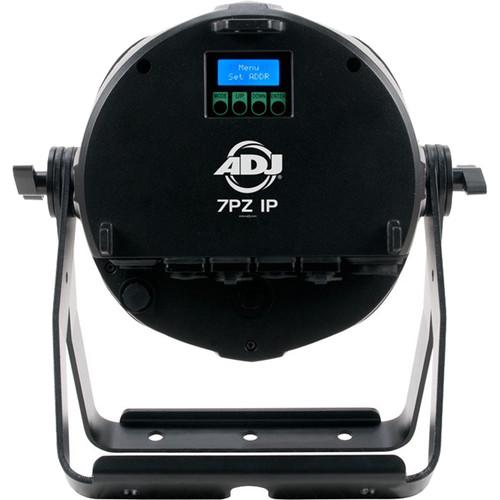

- 4-button LED display on rear panel
- Electronic Dimming: 0 – 100%
- Flicker Free
- WiFLY EXR DMX Range: 2,500 feet /700M (line of site)
- WiFLY On/Off
- Dual bracket yoke allows fixture to be hung or set on the ground
- Connections
-
- Power Input: powerCON True1 AC
- Power Pass Through: powerCON True1
- Data: 3 Seatronic IP connection
- Control
-
- 12 DMX channel modes
- 16 Selectable WiFLY address channels

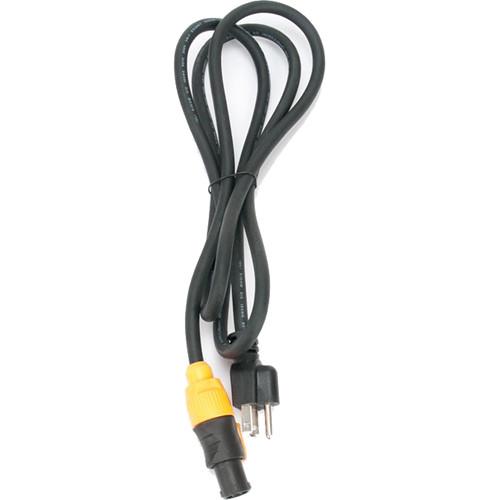

UPC: 819730019790 In the Box American DJ 7PZ IP - Heavy Duty IP65 Outdoor Rated LED Par with Motorized Zoom + WiFLY Wireless (RGBW) powerCON True1 Edison Cable (3.3' / 1 m) Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the American DJ 7PZ IP - Heavy Duty IP65 Outdoor Rated LED Par with Motorized Zoom WiFLY Wireless in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersAmerican DJ 7PZ IP Specs | Light Source | 7 x 15 W (4-in-1) Quad RGBW LEDs (red, green, blue, white) | | Life Expectancy | Approximately 50,000 hours | | Beam Angle | Variable: 5 to 45° | | Colors | RGBW color mixing
65 x built-in color macros | | Modes | 5 x Operational Modes: Color Change Mode; Color Fade Mode; Auto (Program Run) Mode; Sound Active Mode, and DMX-512 Mode | | Electronic Dimming | 0-100% | | DMX Channel Modes | 12 x DMX channel modes | | Connectors | Power Input: powerCON True1 AC
Power Pass Through: powerCON True1
Data: 3 Seatronic IP connection

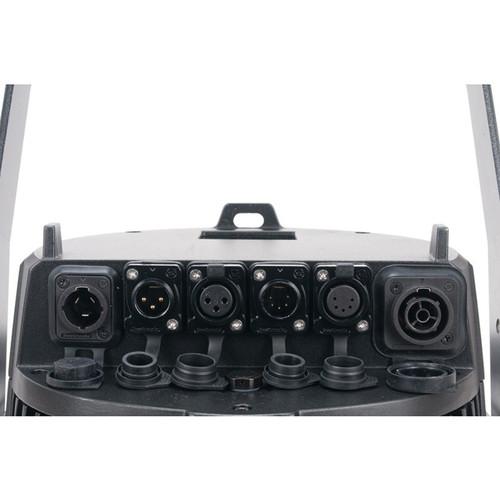

DMX In: 1 x 3-pin XLR and 1 x 5-pin XLR
DMX Out: 1 x 3-pin XLR and 1 x 5-pin XLR | | Display/Controls | 4-button LED Display on rear panel | | Wireless Control | Compatible with ADJ's WiFLY Protocol
WiFLY EXR DMX Range: 2,500' / 762 m (line of site)
WiFLY on/off | | Power | Input Voltage: 100-240 VAC 50/60 Hz (Auto Sensing)
Power Draw: 128 W | | Mounting | Dual-yoke bracket | | Enclosure | Metal black housing | | Water Rating | IP65 | | Dimensions | 10.5 x 13.75 x 15" / 266.7 x 349.3 x 381.0 mm | | Weight | 25 lb / 11.3 kg |
