User Manual for American DJ Aggressor HEX LED Moonflower Effect Lighting Fixture Click to enlarge the picture
Contents of the user manual for the American DJ Aggressor HEX LED Moonflower
- Product category: DJ & Effect Lights American DJ
- Brand: American DJ
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for American DJ DJ & Effect Lights
 |
User manual for the American DJ Aggressor HEX LED Moonflower contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any American DJ product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official American DJ user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a American DJ product will considerably shorten its lifespan!
|

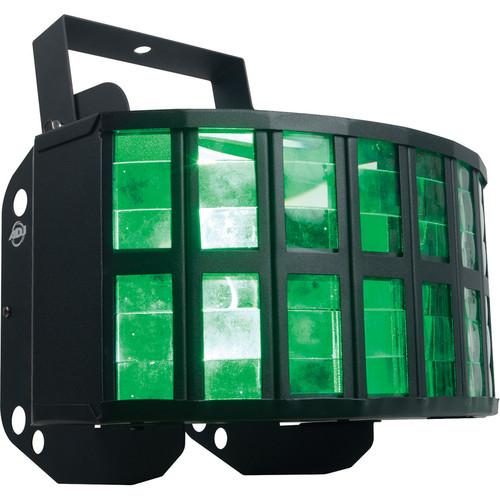

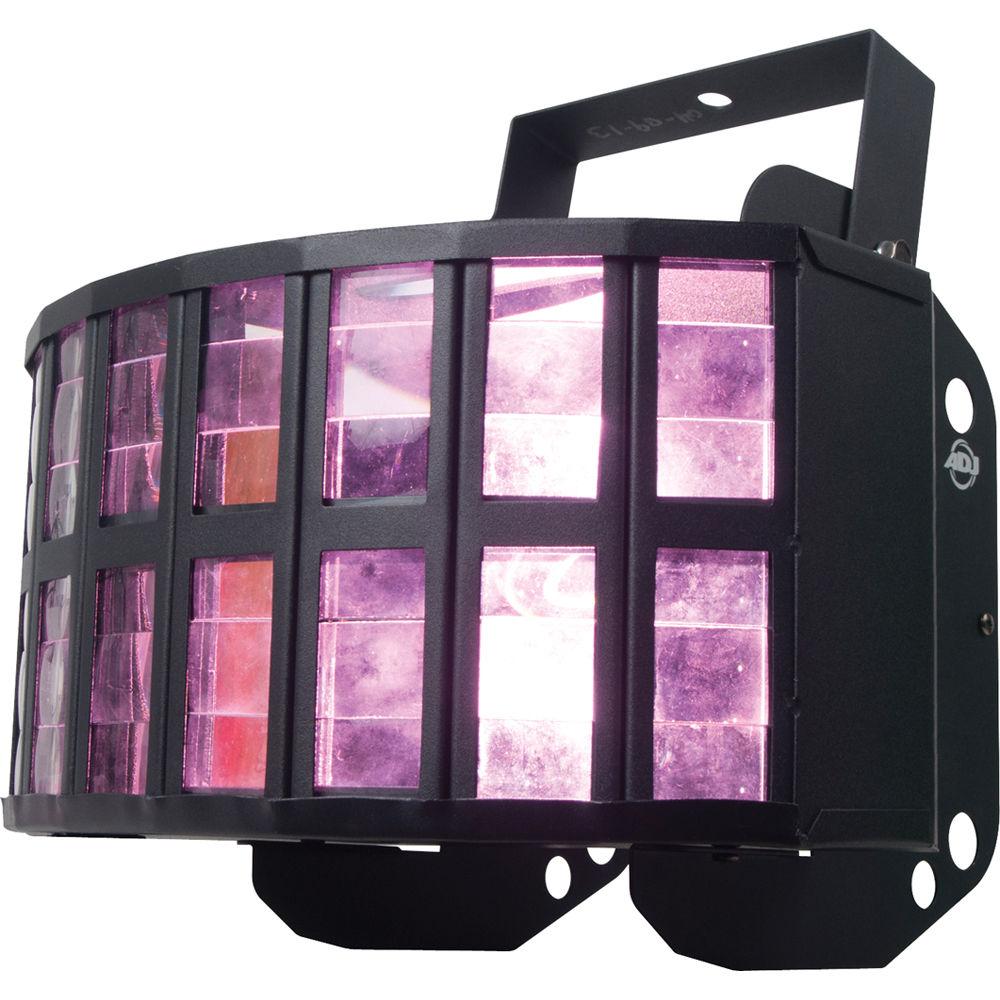

Product description The Aggressor HEX LED Moonflower Effect Lighting Fixture from American DJ is powered by two 12W 6-in-1 HEX LED technology and uses 6 colors built into one LED (red, green, blue, cyan, amber, and white) for more color options and a bright output. This fixture is designed for mobile DJs, clubs, bands, roller rinks, or any arena that requires a compact, lightweight, easy-to-use unit.
The Aggressor HEX LED Fixture is easy to set up and use as its 60 sound-activated reactions move to the sound of music. The fixture also has IEC In / Out connectors to conveniently daisy chain power from one fixture to the other. The HEX LEDs have a shelf life rated at approximately 50,000 hours.
The included daisy chain power cord enables you to connect multiple lighting fixtures to one another using the integrated IEC input and output sockets. A maximum of 10 fixtures can be connected. Connection to more than 10 fixtures will require the use of a new power outlet. Note: - The unit operates in sound-active mode only.
- The same fixtures must be used for connection. Do not mix fixtures.
- The unit should be mounted using a mounting clamp (not included), affixing it to the mounting bracket that is provided with the unit.
- HEX LED technology for more colors and bright output
- Equipped with two 12W, 6-in-1 (RGBCAW) Hex Color LEDs that produce a variety of color effects (red, green, blue, cyan, amber, and white)
- 60 sound-activated reactions move to the sound of music
- Simple plug & play makes it easy to use without any external controls
- Includes built-in hanging yoke
- Operates as a standalone sound-active, lightweight unit without requiring a controller

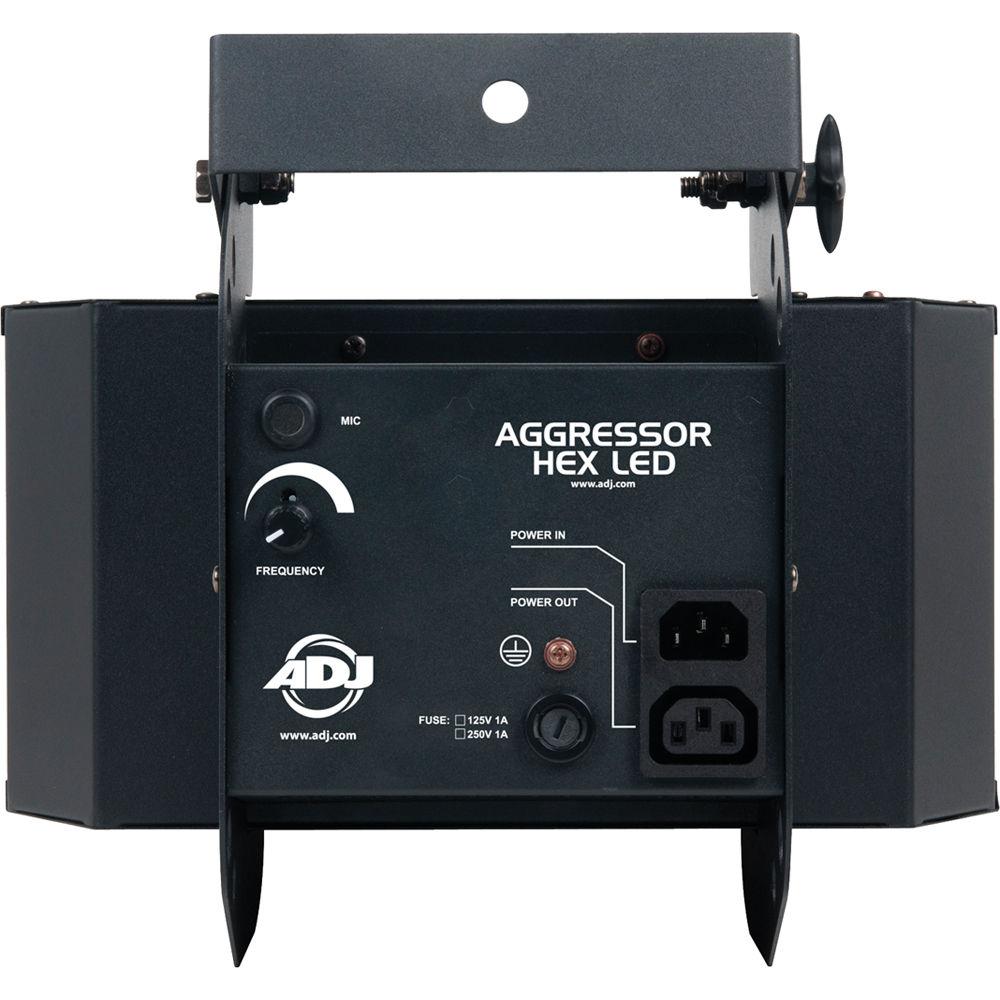

- Sound sensitivity knob on the rear of the unit to adjust sound sensitivity 1
Please Note: Turning the knob clockwise will make it more sensitive to sound, while turning it counter-clockwise will make it less sensitive. close - Auto-Sensing Voltage: Fixture contains a electronic ballast that can auto sense voltage when plugged into a power source
UPC: 819730010711 In the Box American DJ Aggressor HEX LED Moonflower Effect Lighting Fixture Daisy Chain Power Cord Mounting Bracket Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the American DJ Aggressor HEX LED Moonflower Effect Lighting Fixture in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersAmerican DJ Aggressor Hex LED Specs | LEDs | 2 x 12 W 6-in-1 LEDs | | Colors | RGBWAC | | Fuse | 1 A | | Operating Mode | Sound active | | Input/Output Connectors | IEC AC In / Out on rear to daisy chain power cord (up to 10 HEX LEDs at 120 V and 15 at 230 V) | | Power Consumption | Maximum 30 W per unit | | Power Cord | Daisy chain
Maximum of 10 fixtures | | Voltage | Multi-Voltage Operation: 100 to 240 VAC, 50 / 60 Hz | | Dimensions (L x W x H) | 13.0 x 12.5 x 12.5" (33.0 x 31.7 x 31.7 cm) | | Weight | 9.26 lb (4.20 kg) | | | | Package Weight | 11.3 lb | | Box Dimensions (LxWxH) | 15.039 x 14.409 x 12.284" |
