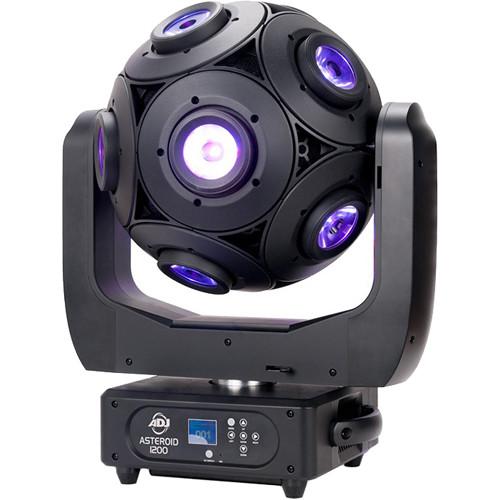

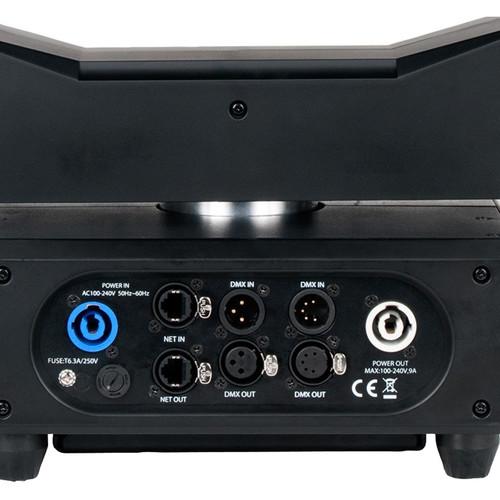

Product description The Asteroid 1200 from American DJ is a DMX intelligent, 360° rotating LED spherical centerpiece effect, well suited for clubs, bars, presentations, mobile DJs, and special events. The light offers infinite pan and tilt, allowing you to splay beams of light in all directions. With twelve 15W RGBW LEDs and full DMX programing control (18, 20, or 69 channels) allows for the creation of mesmerizing effects. Additionally, the Asteroid 1200 can pixel map, allowing each LED to be addressed individually for the ultimate in control.The 12 beams offer a 4° beam angle and coverage of 360°. Operational modes include Artnet/KlingNet, DMX, sound active, stand-alone, and master/slave. The panel includes a digital display, mode buttons, and both 3-pin and 5-pin XLR DMX connectors. Additionally, there are powerCon input and output connectors, allowing for the five fixtures at 110V to be daisy-chained. The Asteroid 1200 ships with mounting hardware and a power cord. -
- Infinite pan and tilt rotation in both directions
- Advance lens optics eliminates RGBW shadows
- Produces sharp beams of light
- Pixel-mapping capability via DMX, Artnet or KlingNet
- Light source: 12 X 15W RGBW (red, green, blue, white) 4-IN-1 LED engine
- Lamp life: 50,000 hours
- Lux: 39,749 max; 9056 Full on @ 2M
- Refresh rate: 1.2KHz
- Beam angle: 4-degree fixed, 11-degree (field angle)
- Operational modes: Artnet/KlingNet, DMX, Sound Active, Stand Alone, Master/Slave
- DMX modes: 18, 20 and 69 channels
- DMX connection: 3-pin and 5-pin
- Strobe: electronic 1Hz to 20KHz
- Dimming: electronic 0-100%
- Power connections: PowerCon In/Out
UPC: 819730017901 In the Box American DJ Asteroid 1200 RGBW LED Spherical Centerpiece Effect Mounting Hardware PowerCon Power Cord Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the American DJ Asteroid 1200 RGBW LED Spherical Centerpiece Effect in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersAmerican DJ Asteroid 1200 Specs | Light Source | Light Source: 12 x 15 W, RGBW (red, green, blue, white) 4-in-1 LED engine
Lamp Life: 50,000 hours | | Lux | Max: 39,749
Full On: 9056 @ 2 M | | Refresh Rate | 1.2 kHz | | Beam Angle | 4° fixed, 11° (field angle) | | Operational Modes | Artnet/KlingNet, DMX, Sound Active, Stand Alone, Master/Slave | | DMX Channel Modes | 18, 20, and 69 | | DMX Connectors | 3-pin and 5-pin | | Strobe Rate | Electronic: 1 Hz to 20 kHz | | Dimming | Electronic: 0-100% | | Pan & Tilt | Infinite | | Power Connectors | PowerCon in / PowerCon out | | Voltage | 100 to 240 VAC, 50/60 Hz | | Power Consumption | 226 W max | | Approvals | ETL | | Dimensions (L x W x H) | 15.8 x 17.8 x 23.5" / 400.1 x 450.9 x 596.9 mm | | Weight | 49 lb / 22.2 kg |
