User Manual for American DJ AV3 9x5 LED Video Wall Kit Click to enlarge the picture
Contents of the user manual for the American DJ AV3 9x5 LED Video
- Product category: Commercial Monitors American DJ
- Brand: American DJ
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for American DJ Commercial Monitors
 |
User manual for the American DJ AV3 9x5 LED Video contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any American DJ product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official American DJ user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a American DJ product will considerably shorten its lifespan!
|

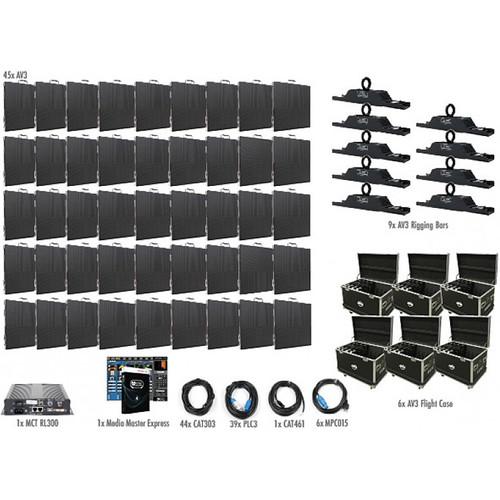

Product description The 45-panel AV3 9x5 LED Video Wall Kit from American DJ includes 45 x AV3 LED Video Panels, 9 x AV3 Rigging Bars, 43 x 3' Cat6 Panel-to-Panel Data Cables, 39 x 3' powerCON Link Cables, 2 x CAT6S50FC 50' Cat AV3 First Cable, 6 x 15' powerCON to Edison cables, 6 x AV3FC 8-Panel Flight Cases, 1 x MediaMaster Express 4 Software, and 1 x MCTRL-300 Video Control Box.

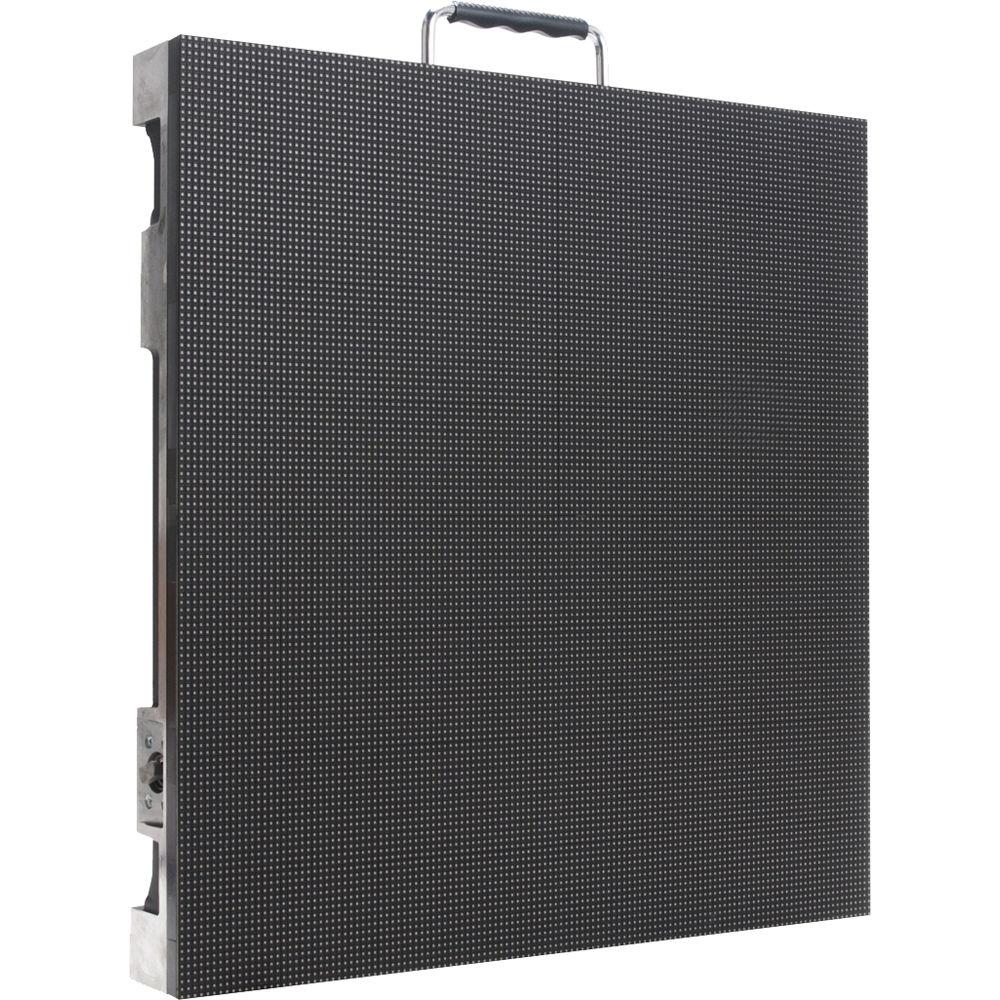

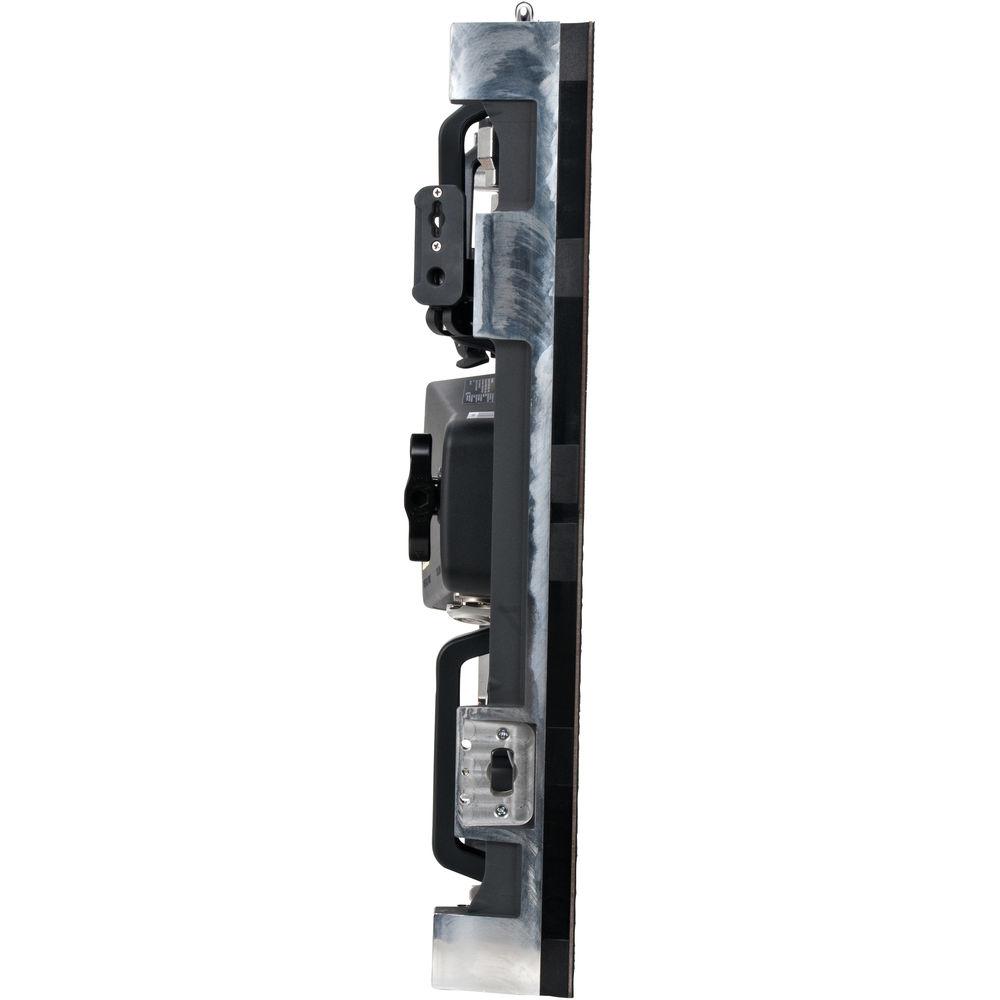

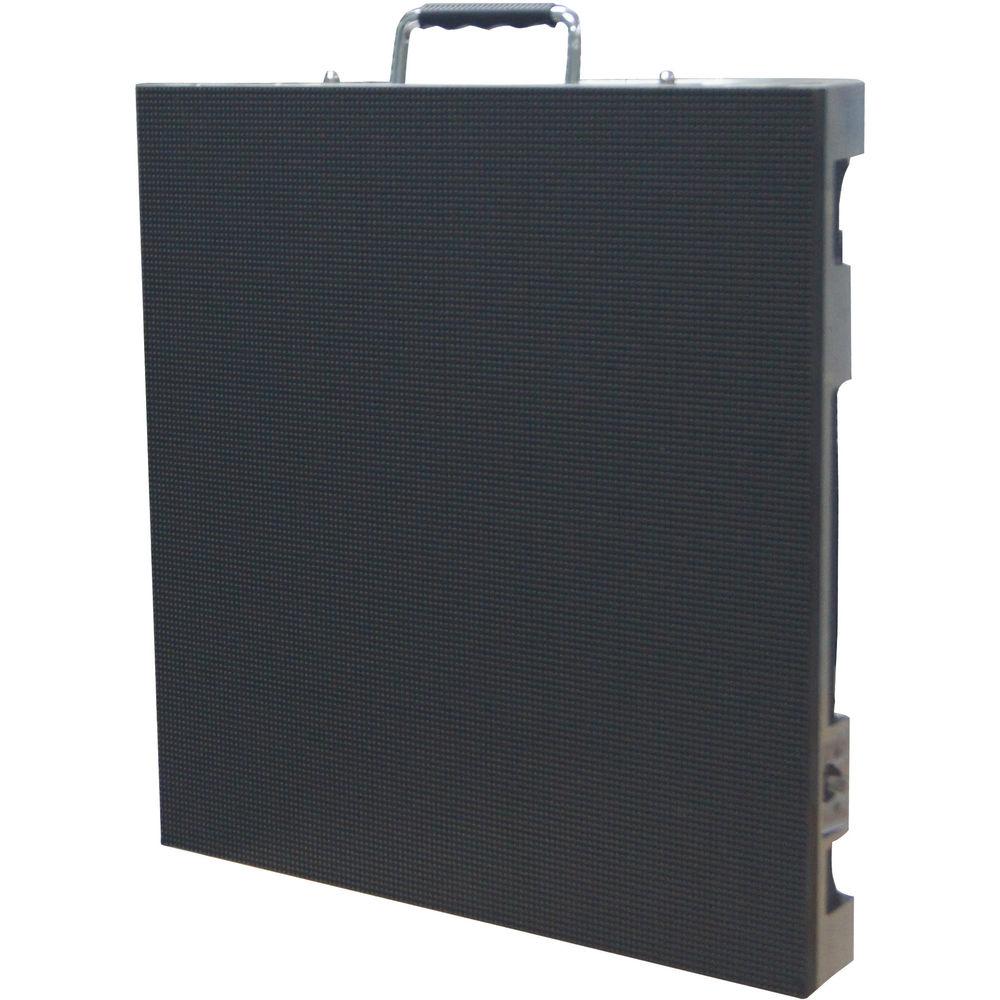

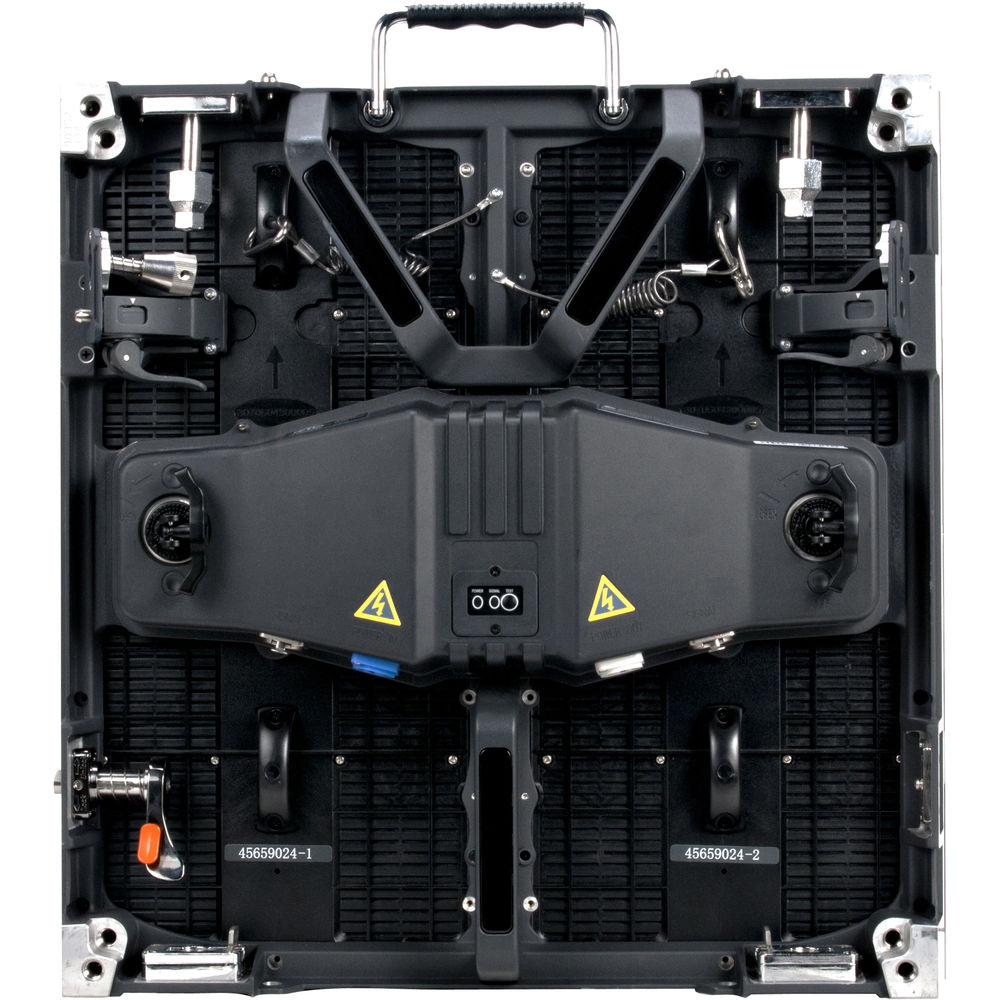

The AV3 Video Panel Display from American DJ is a high resolution, flexible video panel that features 3.91mm pixel pitch with a configuration of a 3-in-1 RGB SMD2121 LED. It also features four LED modules per panel that lets the panel output 1000 cd/m² bright light.
The 3' powerCON Link Cable from Elation Professional is a 14-gauge, PVC-jacketed, production-quality cable with original Neutrik powerCON in/out connectors. The AV3FC 8-Panel Flight Case is a road case for eight AV3 Video panels.

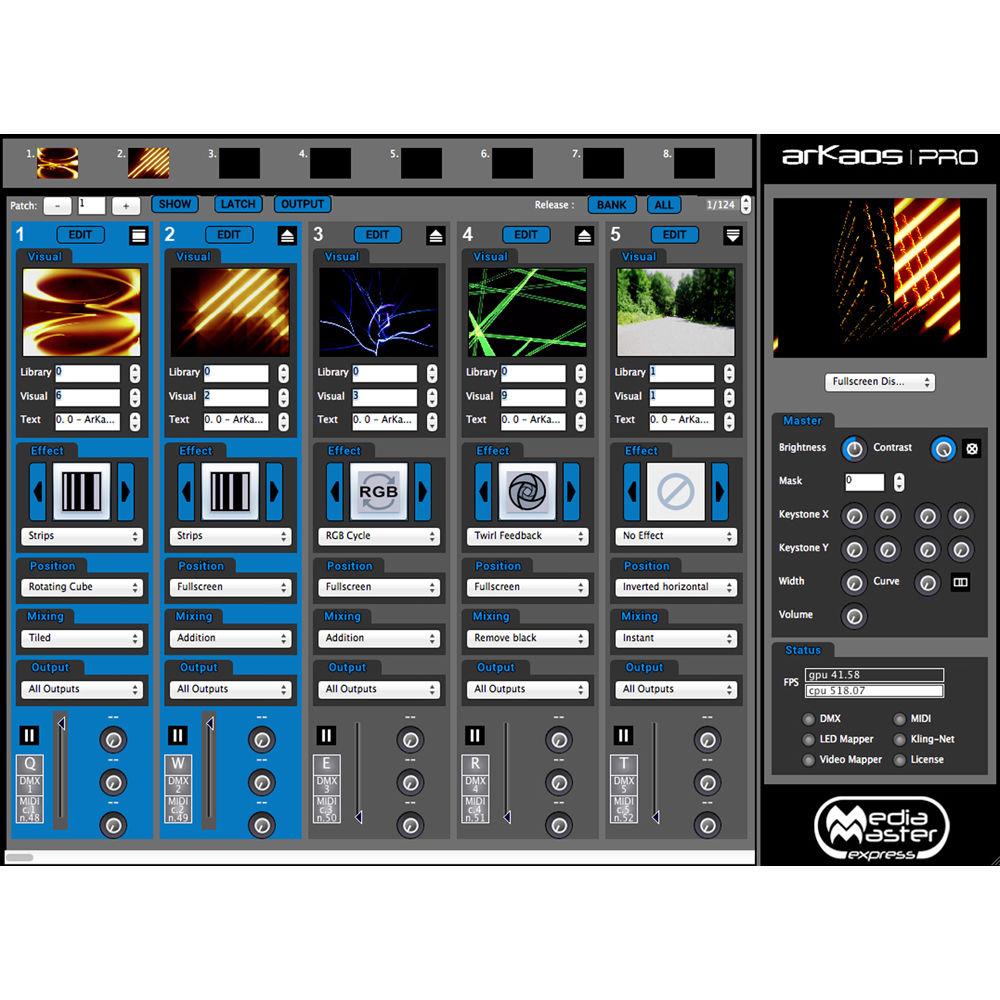

ArKaos has designed MediaMaster Express 4 to help quickly setup a show that includes video. You can drag and drop your visuals on the interface and assign them to DMX or MIDI. The software allows you to control video layers with just a few DMX dimmers or MIDI notes. In addition, you can also control up to 3 parameters per cell via DMX or MIDI. The MCTRL-300 is a controller for ADJ's AV3 LED video panels. It features one DVI signal source input and two RJ45 pixel-data outputs. - AV3 Video Panel Display The AV3 Video Panel Display from American DJ is a high resolution, flexible video panel that features 3.91mm pixel pitch with a configuration of a 3-in-1 RGB SMD2121 LED. It also features four LED modules per panel that lets the panel output 1000 cd/m2 bright light. For easy serviceability, the panel supports curving in convex or concave for up to 10°. The AV3 connections include PowerCON and EtherCON.
-
- Nova Star Synchronous system with control via DVI
- LED configuration of 3-in-1 SMD2121 LED
- IP20-rated weatherproof housing
UPC: 819730019288 - PowerCON Link Cable (3') This PowerCON Link Cable from Elation Professional is a 3', 14 gauge, PVC jacketed, production-quality cable with original Neutrik PowerCON In/Out connectors. UPC: 819730010254
- ArKaos Media Master Express Software Package Provided by third party: Media Master Express helps quickly setup a show that includes video. If you have basic needs of DMX or MIDI synchronization but still want to benefit from the powerful media management and efficient media playback of Media Master, the Express edition is a great choice.

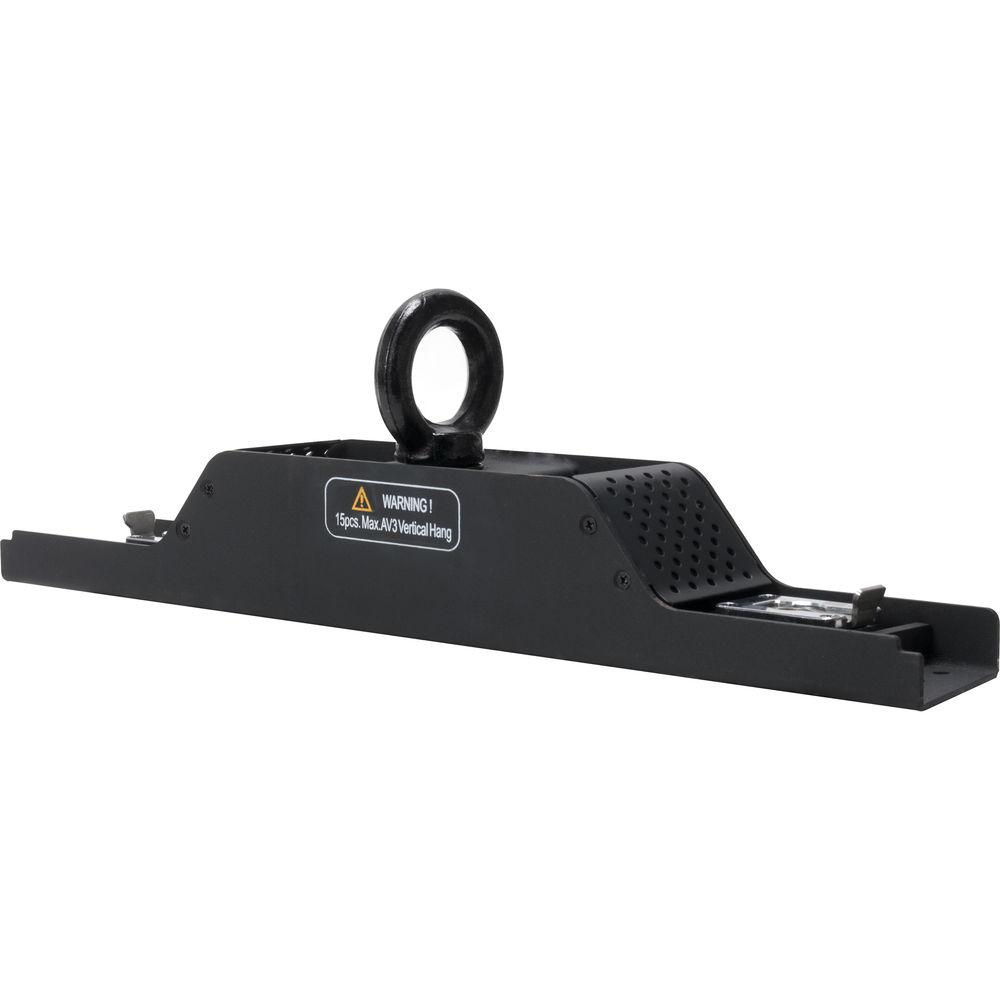

- Single Rigging Bar for AV3 Video Panels
- MCTRL-300 Controller for AV6 LED Video Panel
In the Box Bundle Items 45 x AV3 Video Panel Display 9 x Single Rigging Bar for AV3 Video Panels 39 x PowerCON Link Cable (3') ArKaos Media Master Express Software Package MCTRL-300 Controller for AV6 LED Video Panel
Also Includes - 43 x 3' Cat6 Panel-to-Panel Data Cables
- 2 x CAT6S50FC 50' Cat6 AV6 First Cable
- 6 x 15' powerCON to Edison Power Cables
- 6 x AV3FC 8-Panel Flight Cases
Table of Contents
|
Upload User Manual
Have you got an user manual for the American DJ AV3 9x5 LED Video Wall Kit in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - AV3 Video Panel Display
| | | Supported Display Resolutions | Maximum: 1920 x 1280
Minimum: 1024 x 768 | | Brightness | 1000 cd/m
