Product description The AV4IP Video Panel System from American DJ is a kit which includes 12 AV4IP video panels, four AV3 rigging bars, 11 3' data cables, ten 3' IP65 Seetronic True 1 cables, one 50' processor to first panel standard connector cable, two 25' IP65 main power cables, one Novastar LED display controller and front end processor, two AV3 flight cases, and one copy of Media Master Express software.

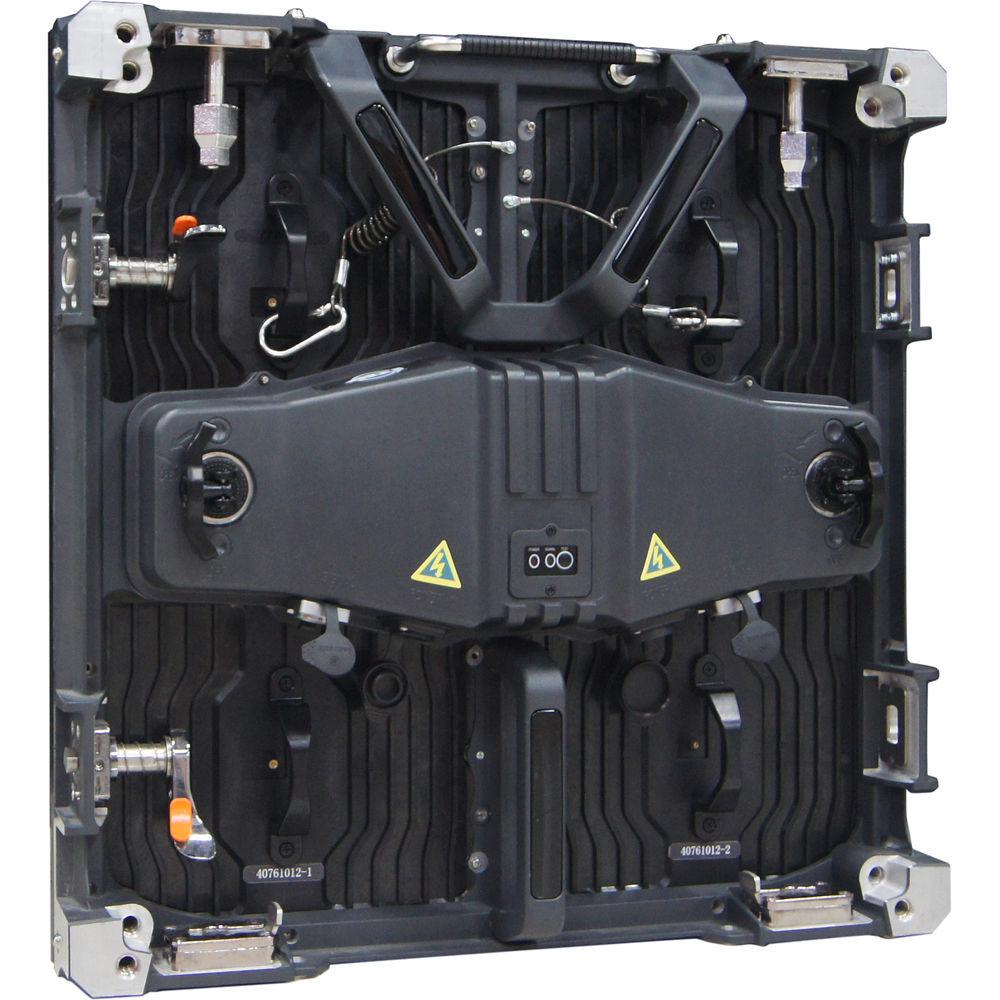

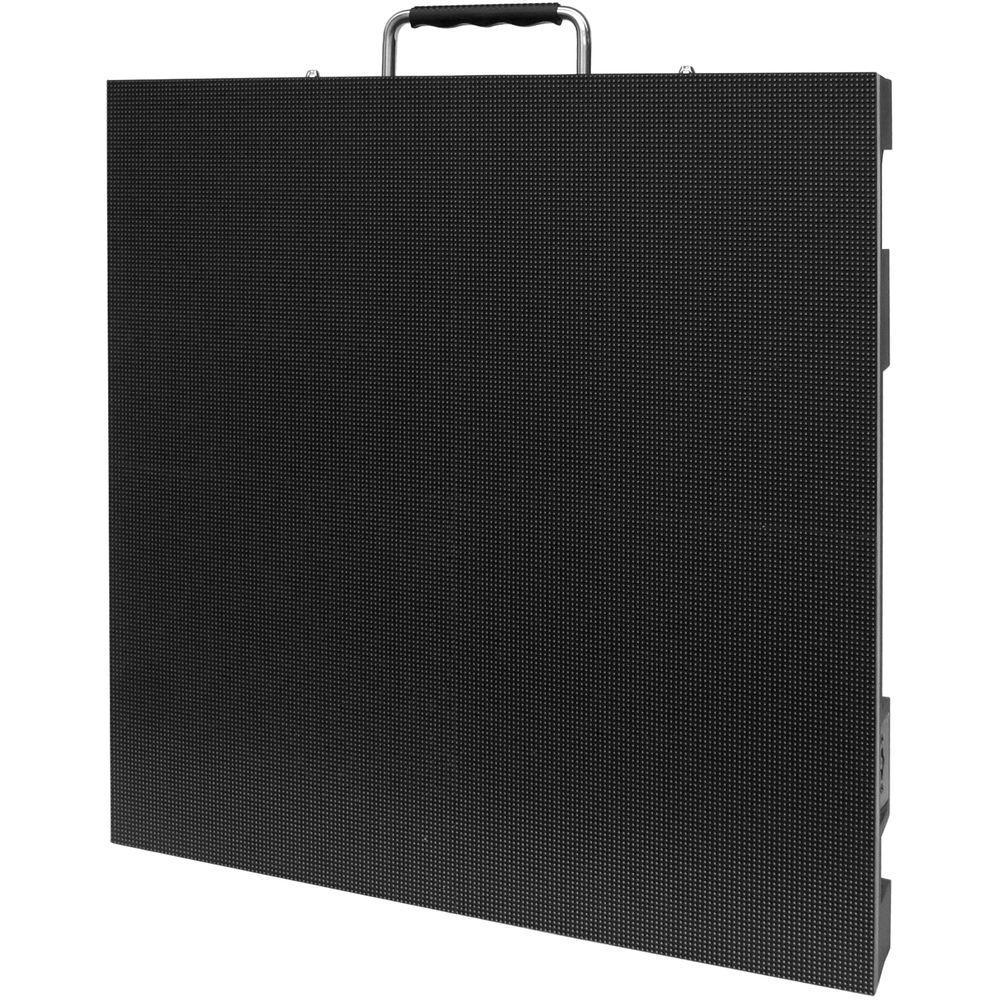

The AV4IP video panel display is a high resolution, flexible video panel that features 4.81mm pixel pitch with a configuration of a 3-in-1 RGB SMD1921 LED. It also features two LED modules per panel and a 4000 cd/m² brightness. This kit includes the accessories that you need for indoor or outdoor use of the panels for stages, installation, or events. - AV4IP Outdoor Video Panel The AV4IP Outdoor Video Panel from American DJ offers a pixel pitch of 4.81mm with a configuration of 3-in-1 RGB LEDs. The panel features 4000 cd/m2 brightness and is IP65 outdoor rated. There are 2 LED modules per panel. Furthermore, the panel also features a Novastar receiving card. It includes True 1 powerCon input/output and etherCON input/output water-resistant connections.
- 4.81mm pixel pitch high-resolution video panel

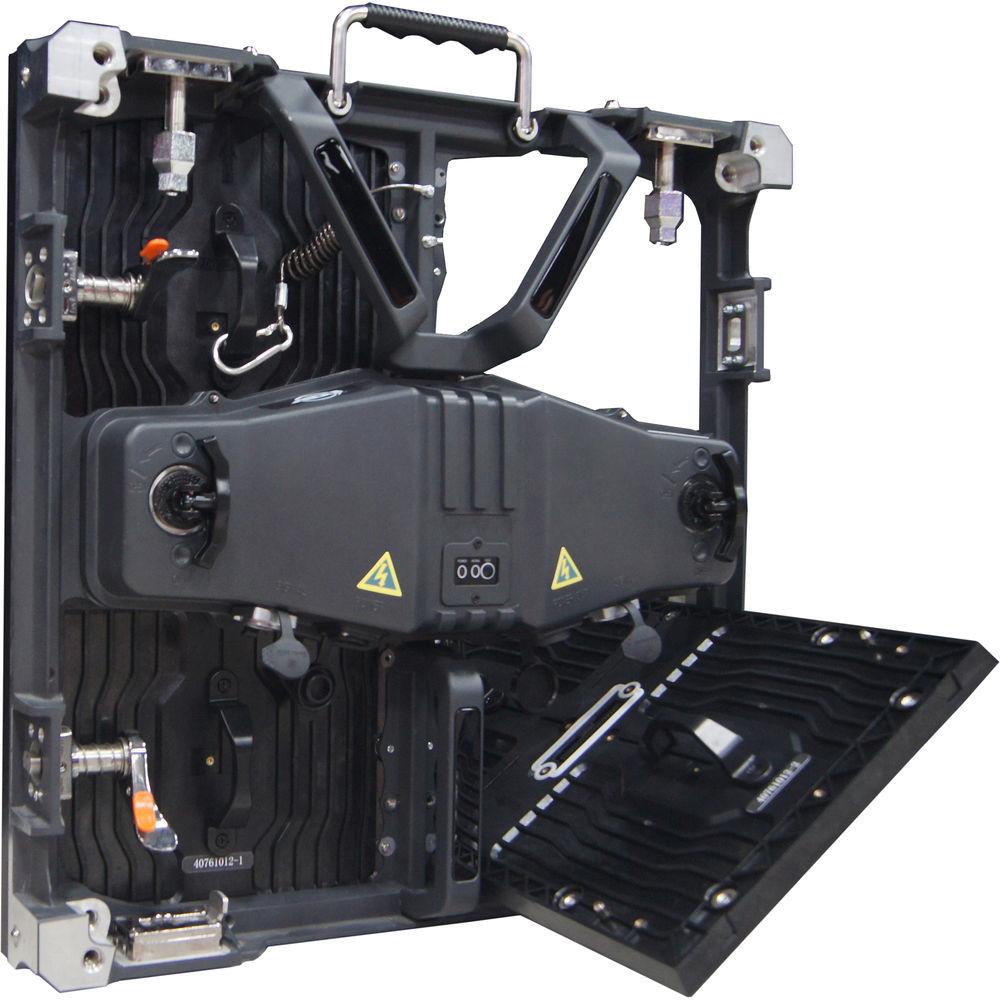

- Quick release power supply and receiving card module
- Includes True1 powerCON input & output and EtherCON input & output connections

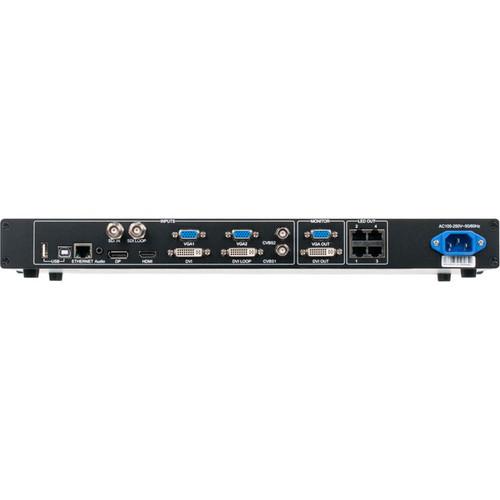

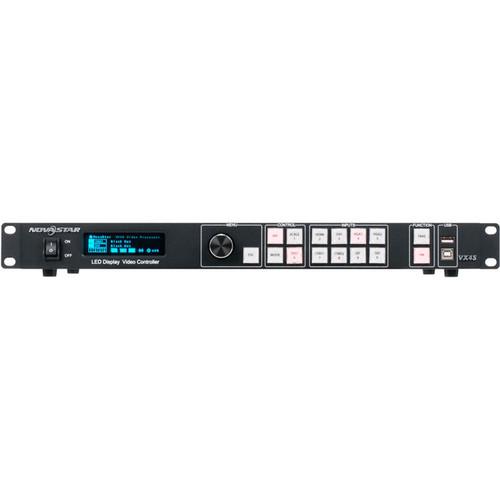

UPC: 818651020595 - NOVASTAR VX4S LED Display Video Controller & Front-End Processor (1 RU) The 1 RU NOVASTAR VX4S from Elation Professional is an LED display controller and a powerful front-end processor that supports multiple signal formats including DisplayPort, HDMI, VGA, DVI, CVBS, SDI, and up to 1920 x 1200p resolution. This controller features four RJ45 outputs for up to 2.6 million pixels of LED control, and it supports Nova's new generation point-by-point correction technology. NOVASTAR VX4S is compatible with all of Elation's current video products.
- User friendly LED display controller
- Powerful front-end processor
- Multiple video signal format support
- New generation point-by-point correction technology
- Cascade multiple units together via USB
- Rack mountable aluminum enclosure (screws sold separately)
- Single Rigging Bar for AV3 Video Panels
- IP65 Seetronic True 1 Cable (3')
- True 1 IP65 Main Power Cable (20')
- Road Case for Eight AV3 Video Panels
- Media Master Express Software Package

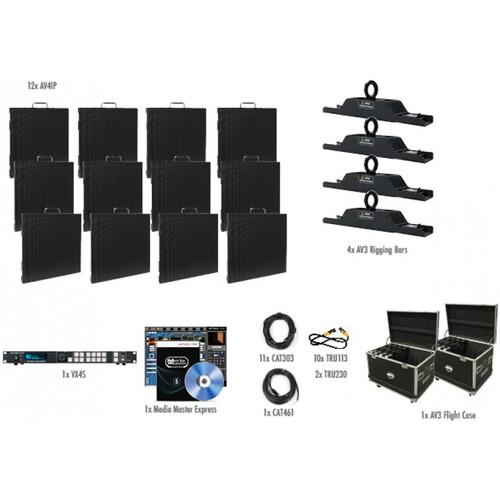

In the Box Bundle Items 12 x AV4IP Outdoor Video Panel afdrxbwyvvrawbvtaxarvdadrrabzuuf 4 x Single Rigging Bar for AV3 Video Panels 10 x IP65 Seetronic True 1 Cable (3') 2 x True 1 IP65 Main Power Cable (20') NOVASTAR VX4S LED Display Video Controller & Front-End Processor (1 RU) 2 x Road Case for Eight AV3 Video Panels Media Master Express Software Package
Also Includes - 11 x CAT303 3' Data Cable
- CAT461 50' Connector Cable
Table of Contents
|
Upload User Manual
Have you got an user manual for the American DJ AV4IP Video Panel System in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - AV4IP Outdoor Video Panel
| | | Native Resolution | 52 x 104 | | Supported Display Resolutions | Maximum: 1920 x 1280
Minimum: 1024 x 768 | | Brightness | 4000 cd/m
