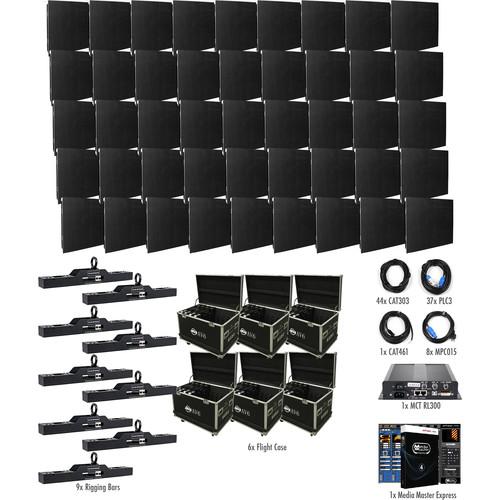

Product description The American DJ 45-Panel AV6X LED Video Wall Kit includes forty-five AV6X LED Video Panels, nine AV6 Rigging Bars, forty-three 3' Cat6 Panel-to-Panel Data Cables, thirty-seven 3' powerCON Link Cables, two CAT6S50FC 50' Cat AV6 First Cables, eight 15' powerCON to Edison cables, six AV6FC 8-Panel Flight Cases, MediaMaster Express 4 Software, and an MCTRL-300 Video Control Box.
The AV6X LED Video Panel from American DJ is designed for nightclubs, bars, bands, mobile entertainers, event productions, and houses of worship. With 1200 cd/m2 brightness and 14-bit display color, it comes with improved color consistency and a darker black masking for higher contrast. The rigging bar connects to a single AV6X panel, but can support up to twenty panels hanging vertically.
The 3' powerCON Link Cable from Elation Professional is a 14-gauge, PVC-jacketed, production-quality cable with original Neutrik powerCON in/out connectors. The AV6FC 8-Panel Flight Case is a road case for eight AV6 Video panels.

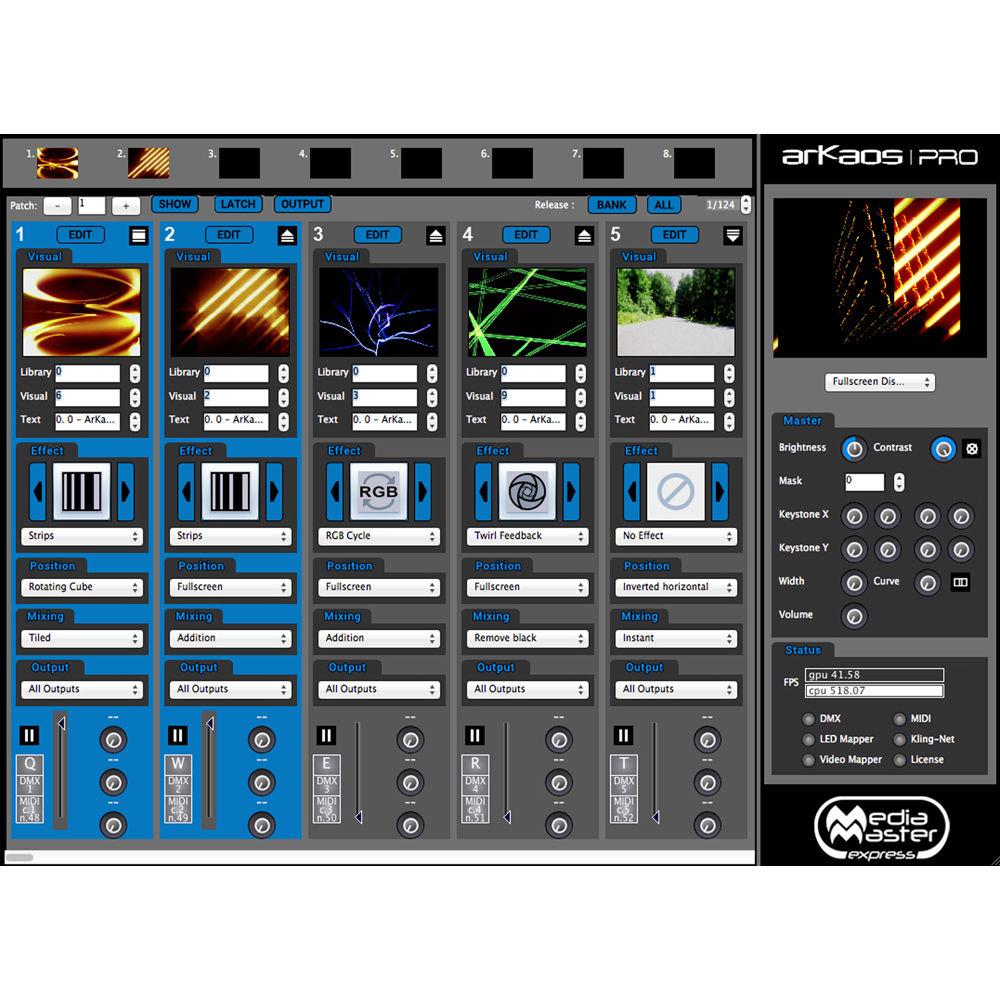

ArKaos has designed MediaMaster Express 4 to help quickly setup a show that includes video. You can drag and drop your visuals on the interface and assign them to DMX or MIDI. The software allows you to control video layers with just a few DMX dimmers or MIDI notes. In addition, you can also control up to 3 parameters per cell via DMX or MIDI. The MCTRL-300 is a controller for ADJ's AV6 LED video panels. It features one DVI signal source input and two RJ45 pixel-data outputs. - AV6X LED Video Panel The AV6X LED Video Panel from American DJ is designed for nightclubs, bars, bands, mobile entertainers, event productions, and houses of worship. With 1200 cd/m2 and 14-bit display color, it comes with better color consistency and a darker black masking for higher contrast. The panel has a pixel pitch of 6mm with a configuration of a 3-in-1 RGB SMD2121 LED. The 4 mini modular panels within the master panel allows easy serviceability.
- 1200 cd/m2 brightness and 6mm pixel pitch
- Nova Star Synchronous System with Control via DVI
UPC: 819730019271 - PowerCON Link Cable (3') This PowerCON Link Cable from Elation Professional is a 3', 14 gauge, PVC jacketed, production-quality cable with original Neutrik PowerCON In/Out connectors. UPC: 819730010254
- ArKaos Media Master Express Software Package Provided by third party: Media Master Express helps quickly setup a show that includes video. If you have basic needs of DMX or MIDI synchronization but still want to benefit from the powerful media management and efficient media playback of Media Master, the Express edition is a great choice.

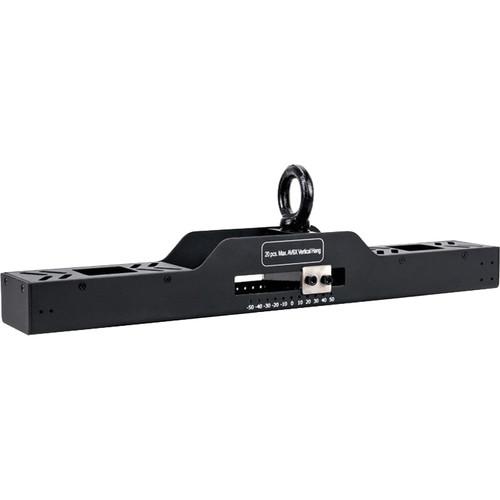

- Rigging Bar for Single AV6 Video Panel

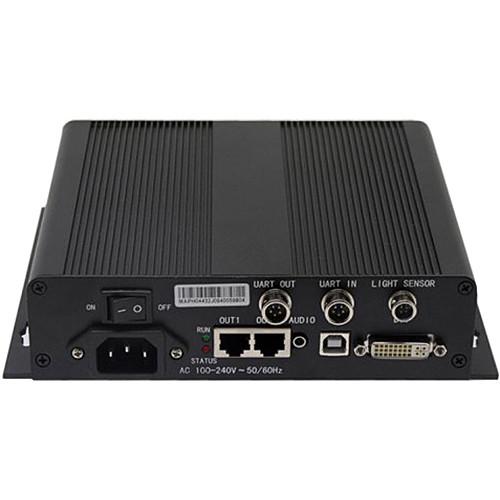

- MCTRL-300 Controller for AV6 LED Video Panel
In the Box Bundle Items 45 x AV6X LED Video Panel fcqazffvwxbybyzdwy 9 x Rigging Bar for Single AV6 Video Panel 37 x PowerCON Link Cable (3') ArKaos Media Master Express Software Package MCTRL-300 Controller for AV6 LED Video Panel
Also Includes - 43 x 3' Cat6 Panel-to-Panel Data Cables

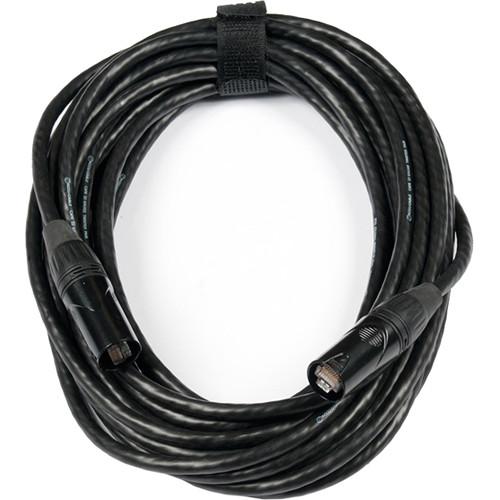

- 2 x CAT6S50FC 50' Cat6 AV6 First Cables
- 8 x 15' powerCON to Edison Power Cables
- 6 x AV6FC 8-Panel Flight Cases
Table of Contents
|
Upload User Manual
Have you got an user manual for the American DJ AV6X LED Video Wall Kit in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - AV6X LED Video Panel
| | | Supported Display Resolutions | Maximum: 1920 x 1280
Minimum: 1024 x 768 | | Brightness | 1200 cd/m
