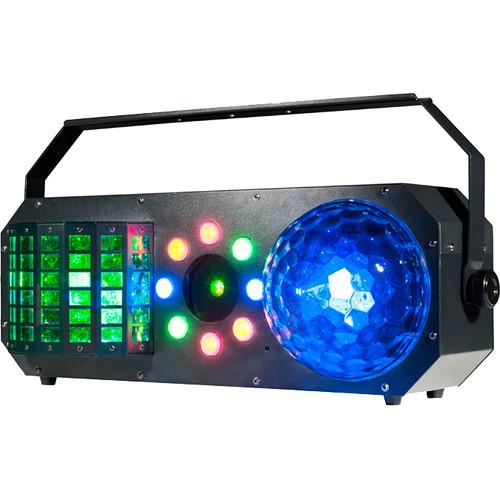

User Manual for American DJ Boom Box FX1 - StarTec Series Multi-Effect Light Click to enlarge the picture
Contents of the user manual for the American DJ Boom Box FX1 -
- Product category: DJ & Effect Lights American DJ
- Brand: American DJ
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for American DJ DJ & Effect Lights
 |
User manual for the American DJ Boom Box FX1 - contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any American DJ product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official American DJ user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a American DJ product will considerably shorten its lifespan!
|

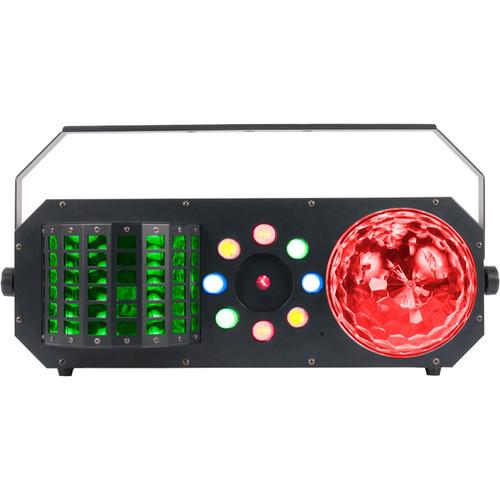

Product description The StarTec Series Boom Box FX1 from American DJ is a four-in-one lighting effect designed to add excitement to any special event. The fixture features a dome moonflower effect, a derby, a wash, and red & green lasers, which can operate in sound active mode, show mode, or are DMX controllable with 3 or 22 channel modes. Take your event to the next level with its nine built-in light-shows and 63 preset color combinations. Up to eight fixtures at 120V can be power-linked. The Boom Box FX1 ships with a mounting bracket. -
- 4 High-Output Effects: dome moonflower, derby, wash, and green/red lasers
- Nine exciting built-in shows
- Produces 63 preset color combinations

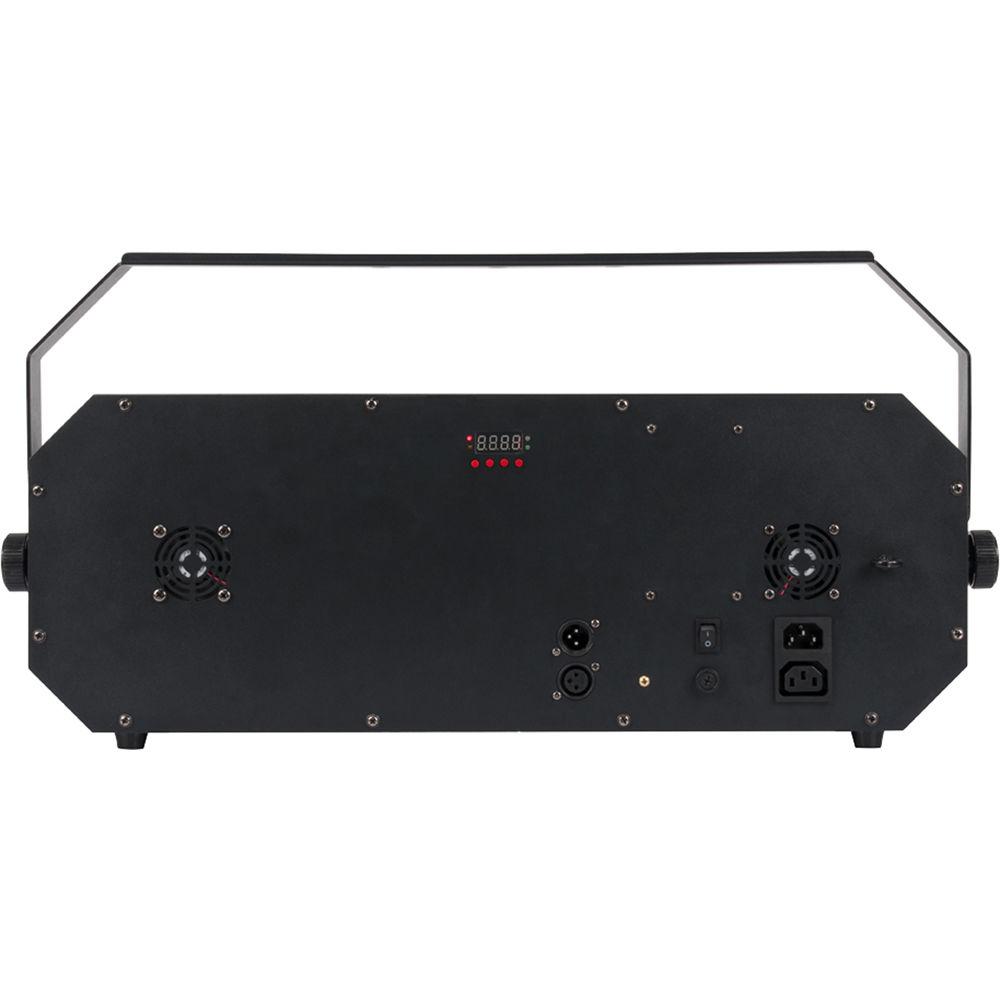

- 4-button LED display on rear panel
- Standalone or Master/Slave setup
- Strobe and chase LED effects

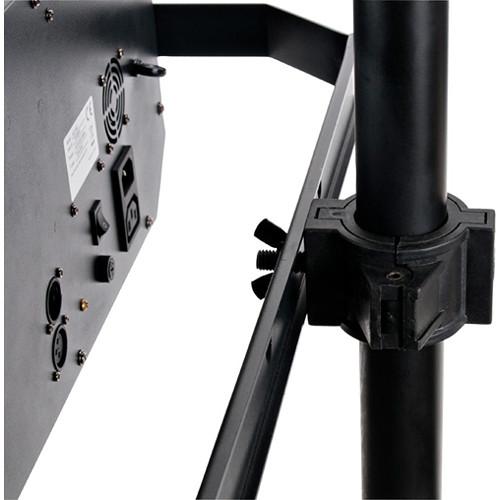

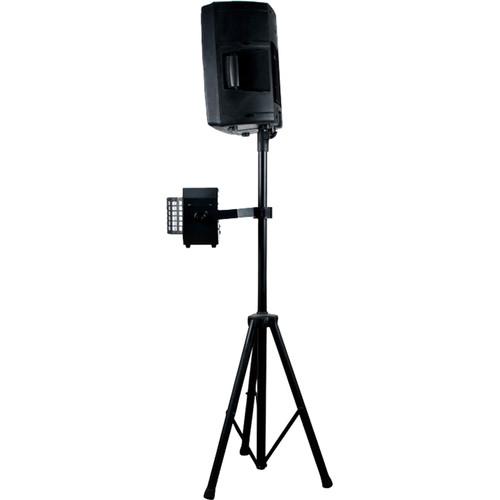

- Includes hanging bracket
- Safety loop on rear panel
- No Duty Cycles: run all night
- Power link units for easier setup
UPC: 819730019899 In the Box American DJ Boom Box FX1 - StarTec Series Multi-Effect Light Mounting Bracket Limited 1-Year Warranty Limited 6-Month Warranty on Laser Diodes Table of Contents
|
Upload User Manual
Have you got an user manual for the American DJ Boom Box FX1 - StarTec Series Multi-Effect Light in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersAmerican DJ Boom Box FX1 Specs | Light Source | Dome: 6 x R/G/B/W/A/UV LEDs, 3 W LEDs
(1 x red, 1 x green, 1 x blue, 1 x white, 1 x amber, 1 x UV)
Derby: 2 x RGBW LEDs, 10 W
Wash: 8 x R/G/B/A LEDs, 1 W
(2 x red, 2 x green, 2 x blue, and 2 x amber)
Lasers: red and green diodes | | Life Expectancy | LEDs: 50,000 hours
Lasers: not specified by manufacturer | | Built-in Shows | Yes | | Master/Slave Support | Yes | | Sound Active | Yes | | Protocols | DMX | | DMX Connectors | Input: XLR 3-pin
Output: XLR 3-pin | | DMX Channel Modes | 3 or 22 channels | | Input Voltage | 100 - 240 VAC, 50/60 Hz (auto-sensing) | | Power Connectors | Input: IEC
Output: IEC | | Power Consumption | 66 W maximum | | Power Linking | 120 V: 8 x fixtures maximum
230 V: 16 x fixtures maximum | | Remote Control Compatibility | UC IR Remote Control (sold separately)
Airstream IR Adapter (sold separately) | | Duty Cycle | None | | Dimensions (L x W x H) | 9.4 x 25.0 x 12.6" / 239.0 x 634.0 x 319.0 mm | | Weight | 14.2 lb / 6.5 kg | | | | Package Weight | 19.5 lb | | Box Dimensions (LxWxH) | 27.8 x 13.7 x 10.9" |
