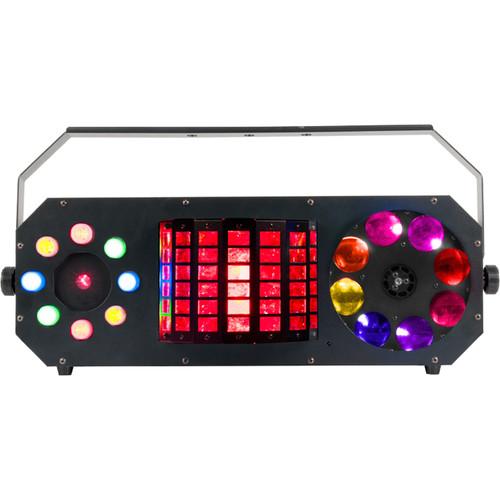

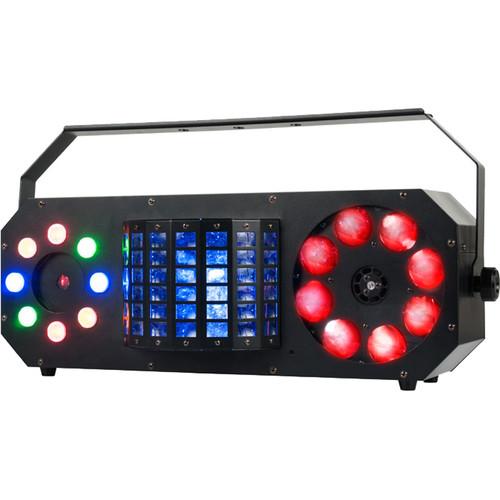

Product description The StarTec Series Boom Box FX2 from American DJ is a four-in-one lighting effect designed to add excitement to any special event. The fixture features a gobo moonflower effect, a derby, a wash, and red & green lasers, which can operate in sound active mode, show mode, or are DMX controllable with 3 or 18 channel modes. Take your event to the next level with its nine built-in light-shows and 63 preset color combinations. Up to nine fixtures at 120V can be power-linked. The Boom Box FX2 ships with a mounting bracket. -
- 4 High-Output Effects: gobo moonflower, derby, wash, and green/red lasers
- Nine exciting built-in shows
- Produces 63 preset color combinations

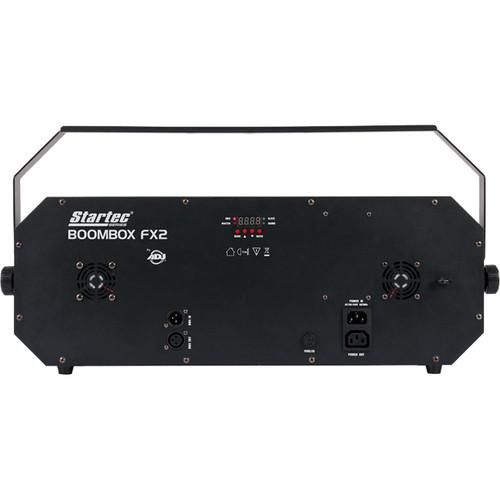

- 4-button LED display on rear panel
- Standalone or Master/Slave setup
- Strobe and chase LED effects

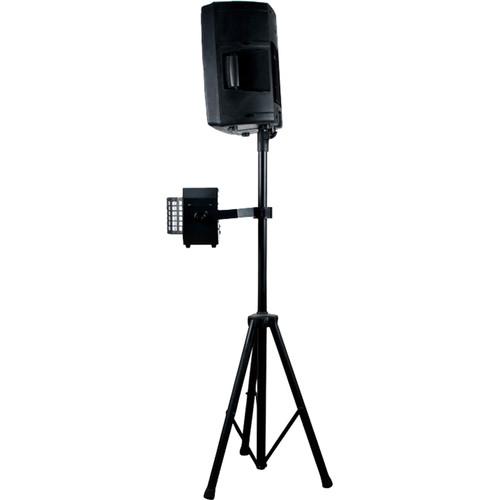

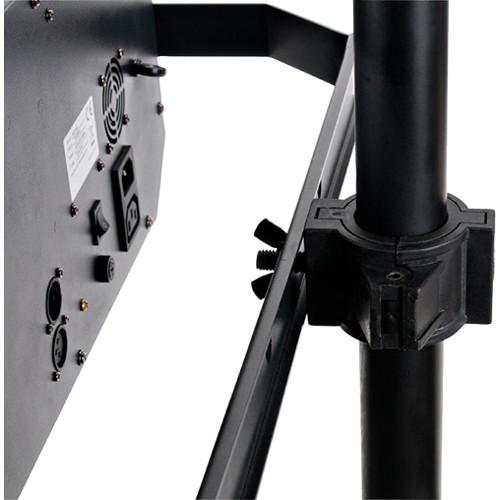

- Includes hanging bracket
- Safety loop on rear panel
- No Duty Cycles: run all night
- Power link units for easier setup
UPC: 819730019905 In the Box American DJ Boom Box FX2 - StarTec Series Multi-Effect Light Mounting Bracket Limited 1-Year Warranty Limited 6-Month Warranty on Laser Diodes Table of Contents
|
Upload User Manual
Have you got an user manual for the American DJ Boom Box FX2 - StarTec Series Multi-Effect Light in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Download User ManualThe user manual for the American DJ Boom Box FX2 - StarTec Series Multi-Effect Light can be downloaded in PDF format at the link stated below.
Technical parametersAmerican DJ Boom Box FX2 Specs | Light Source | Gobos: 8 x R/G/B/W LEDs, 3W
(2 x red, 2 x green, 2 x blue, 2 x white)
Derby: 2 x RGBW LEDs, 10 W
Wash: 8 x R/G/B/A LEDs, 1 W
(2 x red, 2 x green, 2 x blue, 2 x amber)
Lasers: red and green diodes | | Life Expectancy | LEDs: 50,000 hours
Lasers: not specified by manufacturer | | Built-in Shows | Yes | | Master/Slave Support | Yes | | Sound Active | Yes | | Protocols | DMX | | DMX Connectors | Input: XLR 3-pin
Output: XLR 3-pin | | DMX Channel Modes | 3 or 18 channels | | Input Voltage | 100 - 240 VAC, 50/60 Hz (auto-sensing) | | Power Connectors | Input: IEC
Output: IEC | | Power Consumption | 62 W maximum | | Power Linking | 120 V: 9 x fixtures maximum
230 V: 17 x fixtures maximum | | Remote Control Compatibility | UC IR Remote Control (sold separately)
Airstream IR Adapter (sold separately) | | Duty Cycle | None | | Dimensions (L x W x H) | 9.4 x 25.0 x 12.6" / 239.0 x 634.0 x 319.0 mm | | Weight | 15.5 lb / 7.0 kg | | | | Package Weight | 20.5 lb | | Box Dimensions (LxWxH) | 27.2 x 13.5 x 10.5" |
