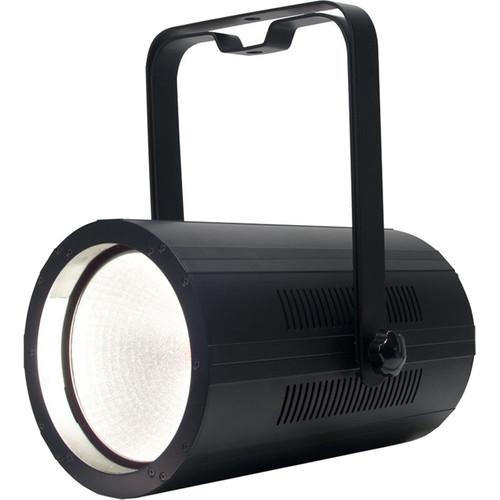

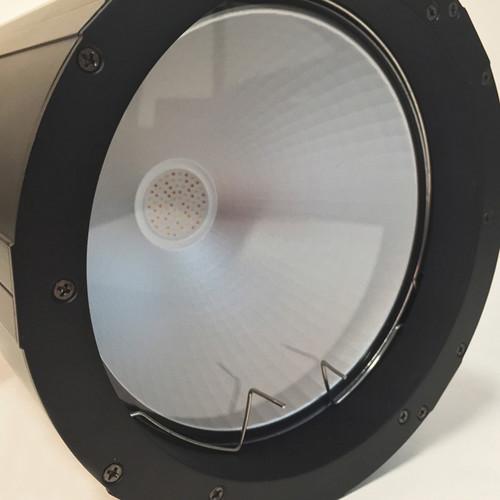

Product description The COB Cannon Wash DW from American DJ is an LED Par Can fixture that uses cool white and warm white COB (Chip On Board) technology producing high-output and smooth washes without shadows. This LED fixture is designed for mobile or permanent wash lighting of stages, clubs, dance floors, or places of worship. It offers an 80° beam angle and includes easily replaceable 40° and 50° lenses for adjusting the beam angle.The COB Cannon Wash DW can be used in a standalone mode or connected in a Master/Slave configuration. It has five operating modes including Sound Active mode, Auto mode, Warm White / Cool White dimmer mode, Static Color mode, and DMX control mode.This fixture has six DMX channel modes for programming flexibility, built-in color macros and five selectable dimming curves. It also includes features such as 0 to 100% electronic dimming, strobe/pulse effect, flicker-free operation, DMX and power daisy-chaining, and a four-button DMX display. This LED fixture can be controlled using a DMX controller or used as a standalone via built-in programs. - 150W COB warm white / cool white LED
- Six DMX channel modes (channels: 1, 2, 3, 4, 5, and 6)
- Eight warm white / cool white macros

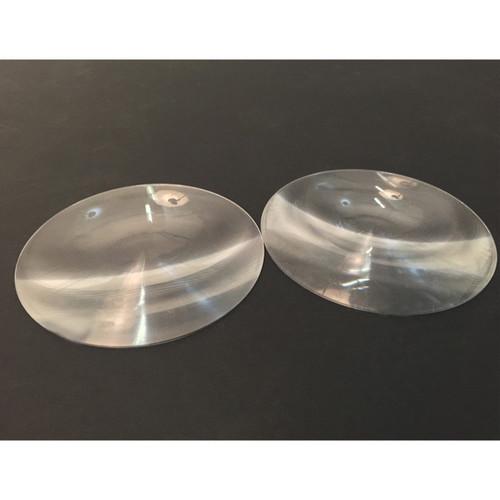

- 80° beam angle (no lens), 50° and 40° lens kit included
- Dual white LEDs for color temperature adjustment, plus 64 built-in color macros
- Five selectable dimming curves (Standard, Stage, TV, Architectural, and Theatre)
- Flicker-free operation (no flickering on camera)
- LED pulse and strobe effect

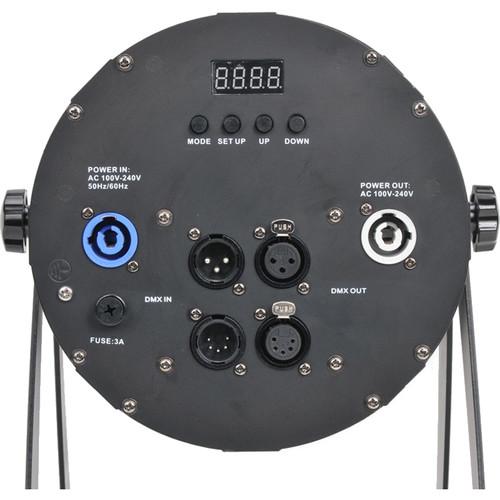

- Four-button digital DMX display on rear panel
- Supports DMX-512 protocol
- Compatible with wireless remote control (sold separately)
- Dual yoke allows fixture to be mounted on truss or set on the ground
- 3-pin and 5-pin XLR chassis mount connectors for DMX linking
- powerCON AC in/out to daisy chain power (up to five fixtures at 110 V)
- Auto sensing power supply
UPC: 819730019233 In the Box American DJ COB Cannon Wash DW LED Par Can Fixture Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the American DJ COB Cannon Wash DW LED Par Can Fixture in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersAmerican DJ Cob Cannon Wash DW Specs | Lamp | 1 x 150 W COB warm white / cool white LED | | Lamp Life | Rated at approximately 50,000 hours | | Beam Angle | 80° beam angle
50° and 40° with included lens kit | | Photometric Data | 80° Beam Angle
At 16.4' (5 m) Distance and 28.7' (8.75 m) Diameter:
Cool White: 118.7 lux
Warm White: 90.6 lux
Cool White + Warm White: 140.5 lux
40° Beam Angle
At 16.4' (5 m) Distance and 13.9' (4.25 m) Diameter:
Cool White: 277 lux
Warm White: 192.3 lux
Cool White + Warm White: 296 lux
50° Beam Angle
At 16.4' (5 m) Distance and 18' (5.5 m) Diameter:
Cool White: 197.4 lux
Warm White: 143.5 lux
Cool White + Warm White: 263 lux
| | Color Temperature | Warm White: 3000K
Cool White: 6500K | | CRI | Over 90 | | Electronic Dimming | 0 to 100% | | DMX Connectors | 3-pin and 5-pin XLR | | DMX Channels | 6 DMX channel modes (1, 2, 3, 4, 5, and 6 channel) | | Power Connection Type | powerCON AC in/out | | Power | 100 to 240 VAC 60/50 Hz | | Power Consumption | Not Specified by the Manufacturer | | Rigging Points | Not Specified by the Manufacturer | | Dimensions | 16.25 x 9.75 x 7.5" (415 x 245 x 192 mm) | | Weight | 9 lb (4.1 kg) | | | | Package Weight | 12.5 lb | | Box Dimensions (LxWxH) | 18.8 x 12.5 x 10.1" |
