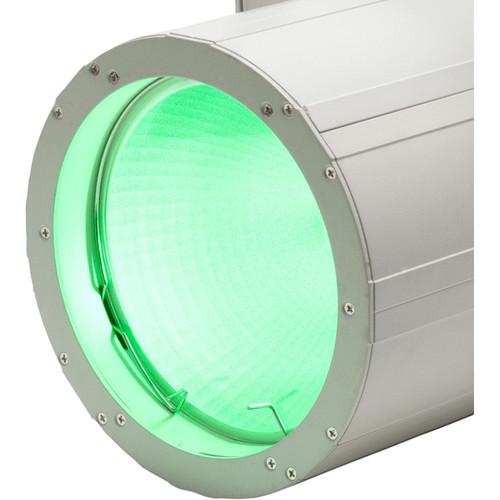

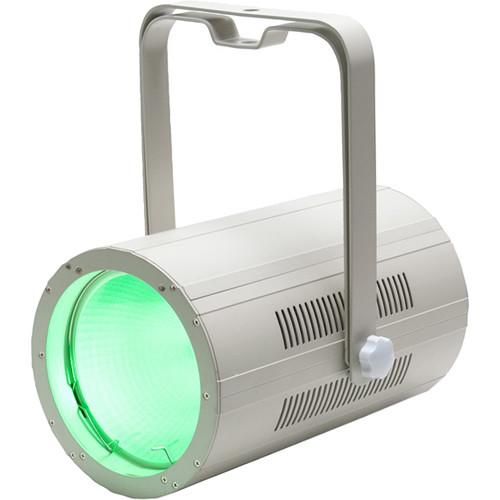

Product description The COB Cannon Wash Pearl from American DJ uses advanced RGBA COB (Chip On Board) technology allowing for a powerful LED engine to be placed in a small amount of space. The result is a high-output, smooth color mixing LED PAR with no RGBA shadows. It is designed for mobile or permanent wash lighting of stages, clubs, dance floors, and churches. The COB LED engine on the COB Cannon Wash Pearl is a QUAD RGBA 4-in-1. It also doubles as an uplight with its dual yoke that act as legs to set the fixture upright to wash walls and ceilings.
It has 7 DMX channel modes for programming flexibility, built-in color macros, and 5 selectable dimming curves. The fixture has other advanced features such as 0 to 100% electronic dimming, strobe/pulse effect, flicker-free operation, DMX and powerCON power daisy-chaining, and a 4-button DMX display.
The COB Cannon Wash Pearl comes in an off-white casing and has a massive 80° beam angle. It comes with easily replaceable 40° and 50° lens to adjust the beam angle. - COB Technology (Chip on Board) with one Quad (4-in-1) RGBA COB LED
- Produces smooth RGBA color mixing with rich palettes of color
- Use as wash/PAR or pixel-mapped for visual effect
- 64 x built-in color macros
- Flicker-free operation (no flickering on camera)
- LED pulse and strobe effect
- Five selectable dimming curves: Standard, Stage, TV, Architectural, and Theater

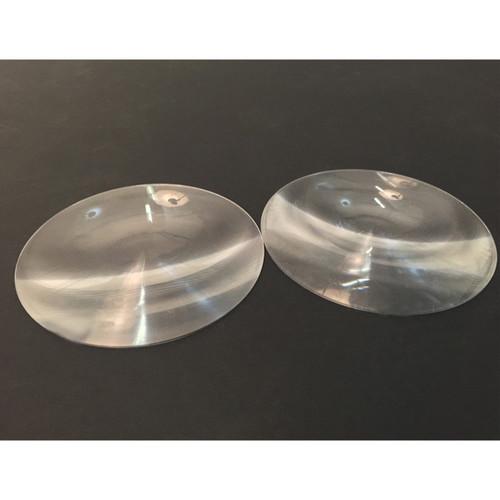

- Includes lens kit to change to 40° or 50° beam angle

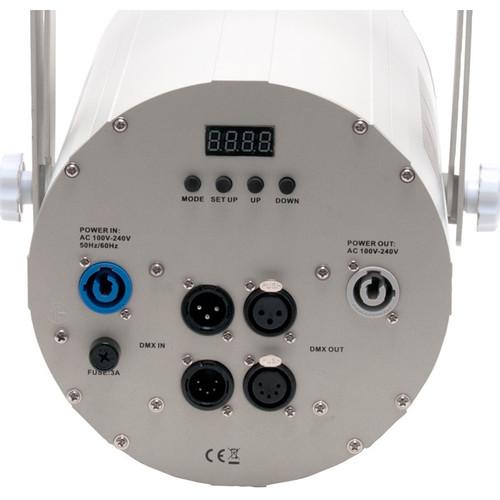

- 3-pin and 5-pin XLR chassis mount connectors for DMX linking
- powerCON AC input/output to daisy chain power (up to 5 fixtures)
- 4-button digital DMX display on rear panel
- Compatible with ADJ RFC wireless remote control (sold separately)
- Dual yoke allows fixture to be mounted on truss or set on the ground
In the Box American DJ COB Cannon Wash Pearl LED PAR Can Fixture Lens Kit (40° and 50°) Dual-Yoke Mounting Bracket powerCON Main Power Cable Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the American DJ COB Cannon Wash Pearl LED PAR Can Fixture in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersAmerican DJ COB Cannon Wash Specs | LEDs | 1 x 150 W RGBA (4-in-1) COB LED | | Beam Angle | 80° (optional 40° and 50° lenses included) | | Electronic Dimming | 0 to 100%
5 x Dimming Curves: Standard, Stage, TV, Architectural, and Theater | | DMX Channels | 7 x Modes: 3, 4, 5, 6, 7, 9, or 10 channels | | DMX Connectors | 3-pin XLR Input and Output
5-pin XLR Input and Output | | DMX 512 Protocol | Yes | | Operating Modes | 5 x Modes: RGBA Dimmer, Sound-Active, Auto, Static Color, and DMX Control | | Working Position | Any safe working position | | Display | Four-button DMX display | | Wireless Remote | ADJ RFC compatible (sold separately) | | Power Draw | 132 W | | Fuse | 3 A | | Power Supply | Auto-Sensing: 100-240 VAC / 50-60 Hz | | Power Cord Daisy Chain | Up to 5 fixtures | | Dimensions (L x W x H) | 16.25 x 9.75 x 7.5" (41.5 x 24.5 x 19.2 cm) | | Weight | 9 lb (4.1 kg) |
