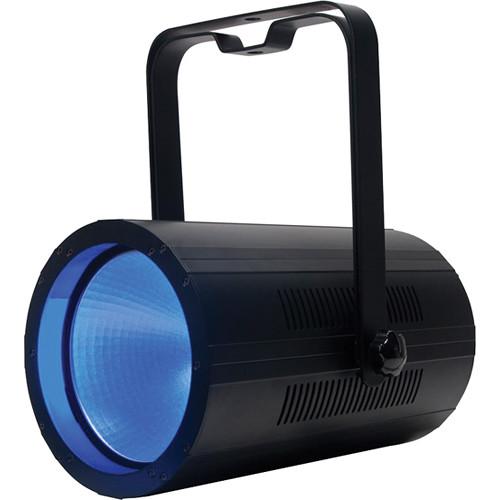

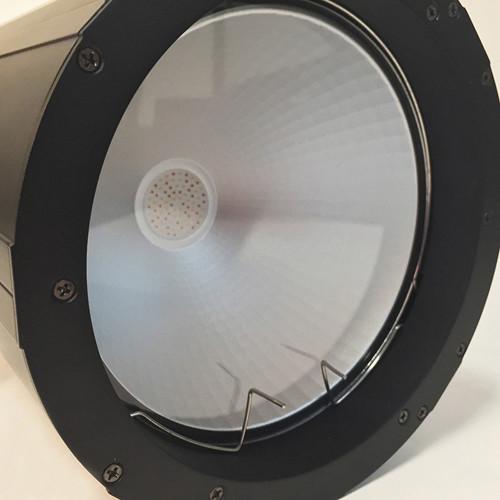

Product description The COB Cannon Wash from American DJ is a high-powered 4-color LED PAR can which uses COB (Chip On Board) technology to produce ceiling & wall color washes with high-illuminance (1970 lux at 6.5') and smooth color mixing. It is well suited for mobile or permanent installations in clubs, churches, and event spaces.The unit offers a host of flexible options such as seven DMX channel modes for programming versatility, 64 built-in color macros, and five operation modes including RGBA Dimmer, Sound-Active, Auto, Static-Color, and DMX. The 4-button digital display lets you access pro features including 0-100% dimming with five selectable curves, flicker-free operation, and strobe/ pulse effect. In addition, the wide 80° beam angle can be customized to 40° & 50° with the included lens kit, and up to five fixtures can be powered out of one power outlet by daisy-chaining each unit using the powerCON input and output sockets.The COB Cannon Wash comes equipped with a double-bracket yoke that allows for flexible positioning on a truss or upright on the floor. It is compatible with the ADJ RFC remote control (available separately). - 1 x 150W 4-in-1 (RGBA) LED with COB (Chip On Board) technology – rated at approximately 50,000 hours
- Wide 80° beam with high illuminance
- Electronic dimming: 0-100%
- 64 x built-in color macros
- 5 x operation modes – RGBA Dimmer, Sound-Active, Auto, Static-Color, DMX
- 5 x selectable dim curves – standard, stage, TV, architectural, theater
- LED pulse and strobe effects
- PowerCON AC in/out to daisy-chain up to five fixtures
- 4-button digital DMX display on rear panel
- Dual-yoke allows fixture to be mounted on truss or set on the ground
- Auto-sensing power supply

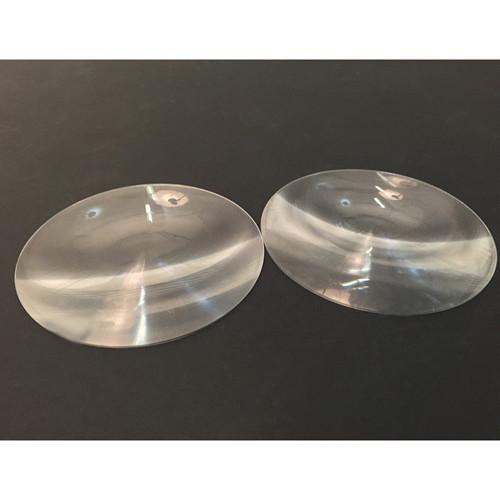

- Includes lens kit to narrow beam to 40° & 50°
- Compatible with ADJ RFC remote control (available separately)
UPC: 819730014580 In the Box American DJ COB Cannon Wash RGBA LED PAR Can Lens Kit for 40° & 50° Beam Angles Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the American DJ COB Cannon Wash RGBA LED PAR Can in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersAmerican DJ COB Cannon Wash Specs | LED Source | 1 x 150 W 4-in-1 COB LED (red, green, blue, amber) | | LED Life Expectancy | Approximately 50,000 hours | | Photometrics | 40° Beam (Full On):
1970 lux at 6.5' (2 m)
474 lux at 13.1' (4 m)
50° Beam (Full On):
1472 lux at 6.5' (2 m)
373 lux at 13.1' (4 m)
80° Beam (Full On):
996 lux at 6.5' (2 m)
238 lux at 13.1' (4 m) | | Beam Angle | 80° lens installed
40° & 50° lens kit included | | Dimming | Electronic: 0-100%
5 x Curves: Standard, Stage, TV, Architectural, Theater | | Operation Modes | 5 x Modes: RGBA dimmer, sound-active, auto, static-color, DMX | | Built-In Programs | LED pulse & strobe effect | | Colors | RGBA color mixing
64 x built-in color macros | | DMX Channel Modes | 7 x Modes: 3, 4, 5, 6, 7, 9, and 10 channels | | DMX Connectors | Inputs: 3-pin XLR and 5-pin XLR
Outputs: 3-pin XLR and 5-pin XLR | | Display/Controls | 4-button DMX LED display | | Input Voltage | 100-240 VAC, 50/60 Hz, auto-sensing | | Power Connectors | PowerCON input and output | | Power Linking | Up to 5 units | | Power Consumption (Maximum) | 132 W | | Fuse | 3 A | | Mounting | Dual yoke for truss or ground | | Dimensions | 16.25 x 9.75 x 7.5" (415 x 245 x 192 mm) | | Weight | 9.0 lb (4.1 kg) | | | | Package Weight | 12.1 lb | | Box Dimensions (LxWxH) | 18.8 x 12.5 x 10.1" |
