Product description Building upon the success of the original COB Cannon Wash, the shorter American DJ COB Cannon Wash ST DW is an LED Par fixture that uses cool-white and warm-white COB (Chip On Board) technology, well suited for mobile or permanent wash lighting of stages, clubs, dance floors, or places of worship. The fixture produces high output and smooth washes without shadows. It ships with a standard 80° beam angle lens, but can be easily changed via the included 40° and 50° lenses. The fixture can also be used to uplight and wash walls and ceilings with its integrated scissor yoke.The COB Cannon Wash ST DW can be used in its standalone mode running from built-in programs, sound activated, or from a DMX controller with six DMX channel modes for programming flexibility. The fixture has many professional features including built-in color macros, 5 selectable dim curves with 0-100% electronic dimming, strobe/pulse effect, flicker-free operation, 3-pin & 5-pin DMX and powerCon power daisy-chaining, and a 4-button DMX display. COB Cannon Wash DW ST includes a powerCON power cord. -
- 150W COB (Chip on Board) warm white / cool white LED (2-in-1)
- Flicker free operation (No flickering on camera)
- Use as wash/par or pixel mapped for a stunning visual effect
- Scissor yoke allows fixture to be mounted on truss or set on the ground
- 3-pin and 5-pin connectors for DMX linking
- powerCon AC in/out to daisy chain power (up to 5 fixtures)
- Built-in color macros
- LED pulse and strobe effect
- Electronic Dimming: 0 - 100%
- 5 selectable dim curves (Standard, Stage, TV, Architectural and Theater)
- Run all night, no duty cycle
- Compatible with wireless remote control (sold separately)
- Optional barn doors (BAR001)
UPC: 818651025545 In the Box American DJ COB Cannon Wash ST DW LED Par Can Fixture (WW/CW) Limited 2-Year Warranty Lenses Table of Contents
|
Upload User Manual
Have you got an user manual for the American DJ COB Cannon Wash ST DW LED Par Can Fixture in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersAmerican DJ COB Cannon Wash ST DW Specs | Light Source | Light Source: 1 x 150 W COB (Chip on Board) Warm White / Cool White LED (2-in-1)
Life: Rated at Approximately 50,000 Hours | | CRI | Over 90 | | Light Output | 891 lux at 9.8' / 3.0 m (CW + WW at 40°)
711 lux at 9.8' / 3.0 m (CW + WW at 50°)
410 lux at 9.8' / 3.0 m (CW + WW at 80°) | | Beam Angle | Standard: 80°

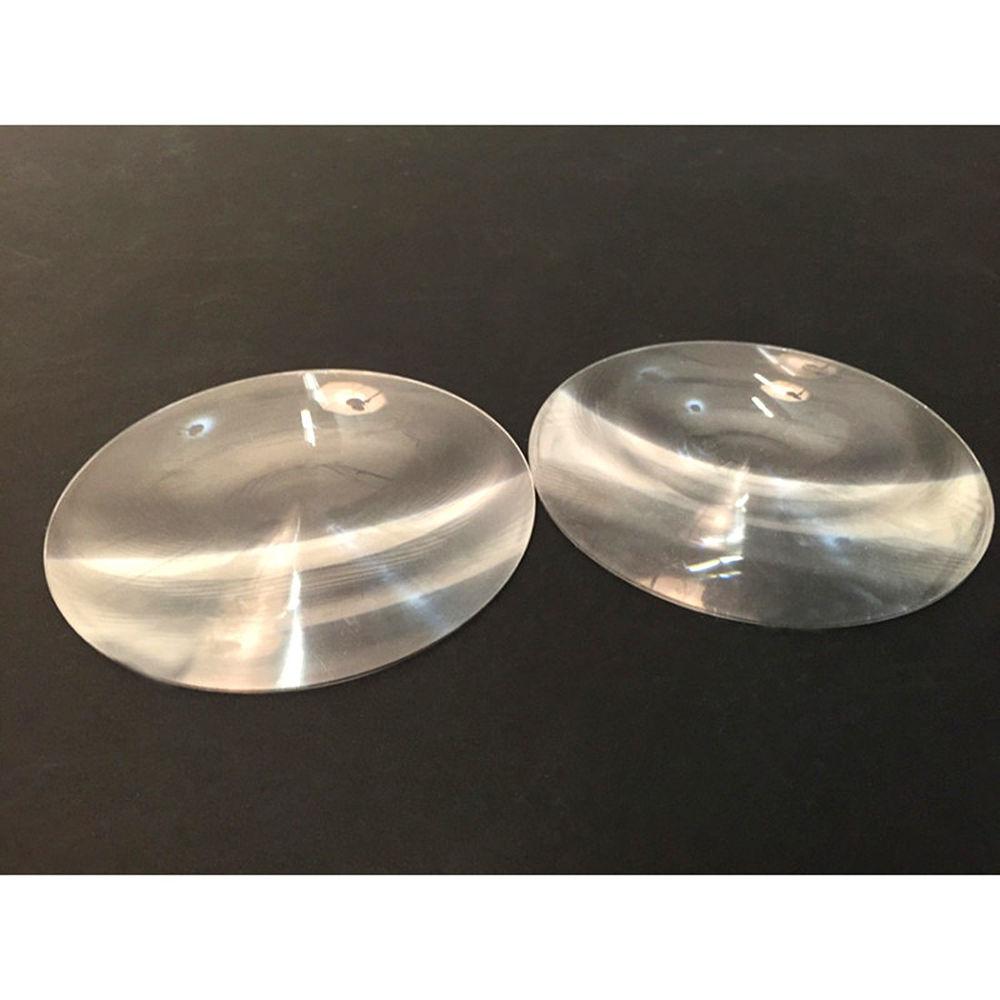

Includes Lens Kit for 40 and 50° | | Connections | DMX: 3-Pin and 5-Pin Connectors for DMX Linking
Power: powerCon AC In/Out to Daisy-Chain Power (Up to 5 Fixtures) | | Control | Variable White Control: 3200 to 6400K
6 x DMX Channel Modes (1, 2, 3, 4, 5, 6)
8 x Warm White / Cool White Built-In Color Macros

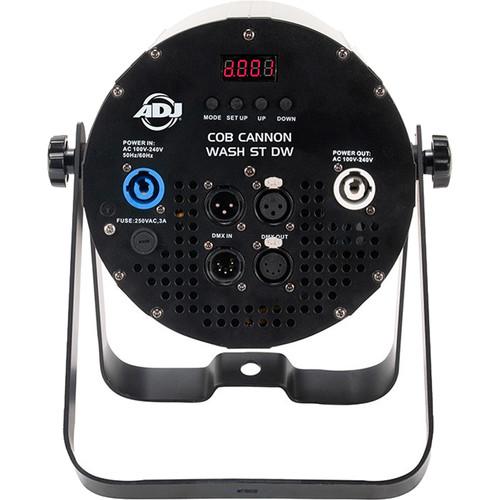

4-Button Digital DMX Display on Rear Panel
Compatible with ADJ RFC Wireless Remote Control (Sold Separately)
LED Pulse and Strobe Effect
Electronic Dimming: 0 to 100%
Dimming Curves: Standard, Stage, TV, Architectural, and Theatre
Refresh Rate: 1 kHz | | Electrical | Auto-Sensing Power Supply: 100 to 240 VAC 50/60 Hz
Power Draw: 132 W Max
Daisy Chain Up to 5 Fixtures Maximum | | Dimensions (L x W x H) | 13.0 x 10.0 x 7.5" / 330.2 x 254.0 x 190.5 mm | | Weight | 9.0 lb / 4.1 kg |
