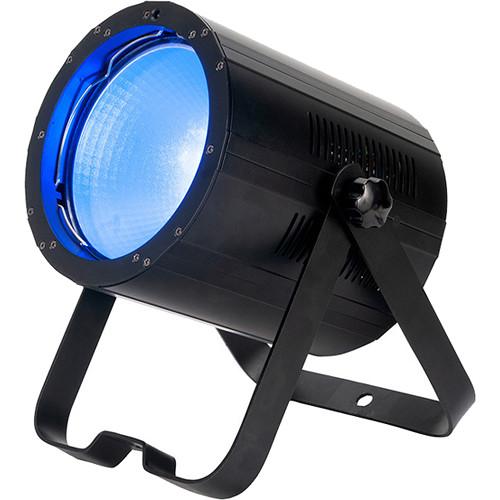

User Manual for American DJ COB Cannon Wash ST LED PAR Can Click to enlarge the picture
Contents of the user manual for the American DJ COB Cannon Wash ST
- Product category: DJ & Effect Lights American DJ
- Brand: American DJ
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for American DJ DJ & Effect Lights
 |
User manual for the American DJ COB Cannon Wash ST contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any American DJ product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official American DJ user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a American DJ product will considerably shorten its lifespan!
|
Product description Building upon the success of the original COB Cannon, the shorter American DJ COB Cannon Wash ST uses advanced RGBA COB (Chip On Board) technology allowing for a powerful LED engine to be placed in a small amount of space, making it ideal for mobile or permanent installations in clubs, houses of worship, and event spaces. The high-powered 4-color LED PAR can produce ceiling and wall color washes with high-luminescence (1970 lux at 6.5') and smooth color mixing.The unit offers a host of flexible options such as seven DMX channel modes for programming versatility, 64 built-in color macros, and five operation modes including RGBA Dimmer, Sound-Active, Auto, Static-Color, and DMX. The 4-button digital display lets you access pro features including 0-100% dimming with five selectable curves, flicker-free operation, and strobe/pulse effects. In addition, the wide 80° beam angle can be customized to 40° & 50° with the included lens kit, and up to five fixtures can be powered out of one power outlet by daisy-chaining each unit using the powerCON input and output sockets.The American DJ COB Cannon Wash ST comes equipped with a double-bracket yoke that allows for flexible positioning on a truss or upright on the floor. It is compatible with the ADJ RFC remote control (available separately) and ships with a powerCON power cord. -

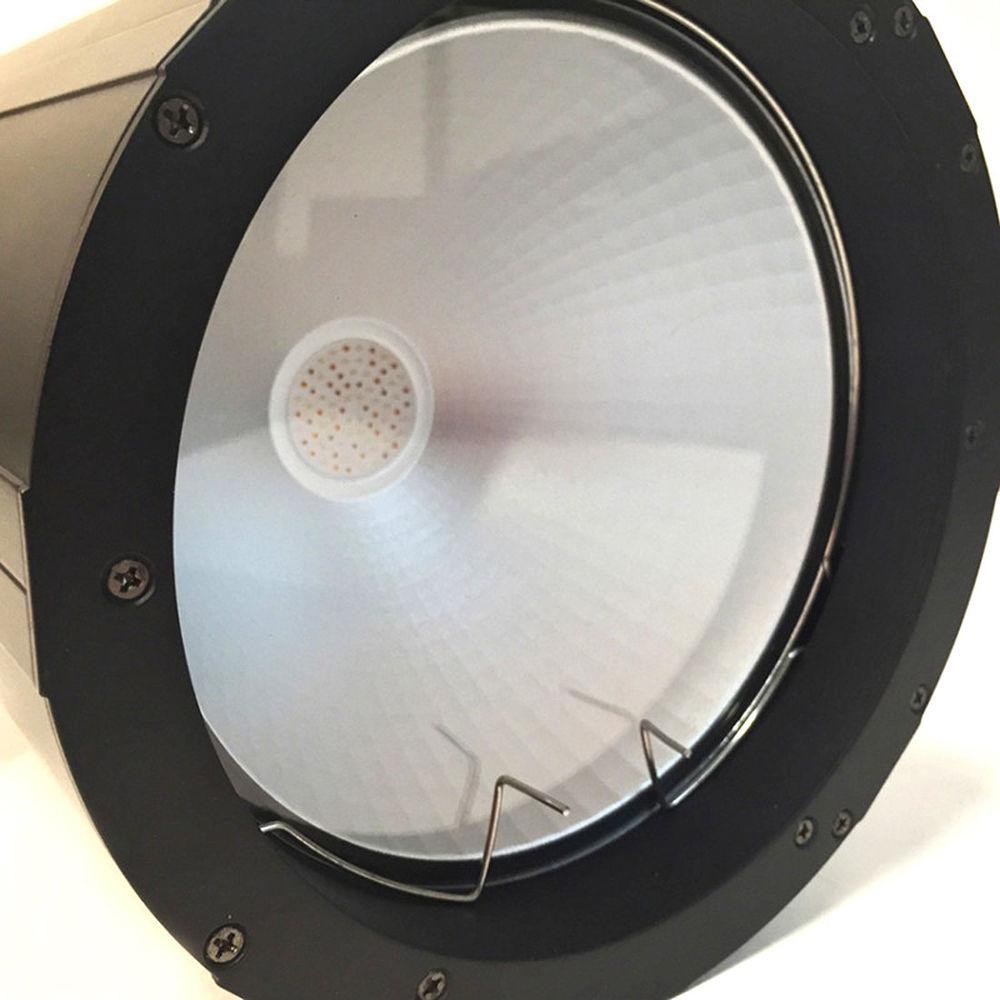

- 150W 4-in-1 (RGBA) LED with COB (Chip On Board) technology - rated at approximately 50,000 hours
- Wide 80° beam with high illuminance
- Electronic dimming: 0-100%
- 7 DMX channel modes
- 64 built-in color macros
- 5 operation modes - RGBA Dimmer, Sound-Active, Auto, Static-Color, DMX
- 5 selectable dim curves - standard, stage, TV, architectural, theater
- LED pulse and strobe effects
- Flicker-free operation
- powerCON AC in/out to daisy-chain up to five fixtures

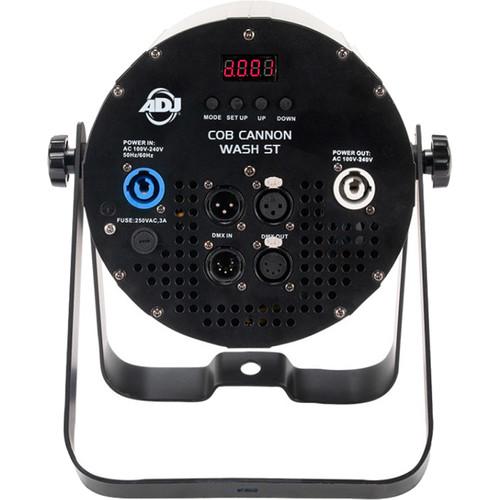

- 4-button digital DMX display on rear panel
- Dual yoke allows fixture to be mounted on truss or set on the ground
- Auto-sensing power supply

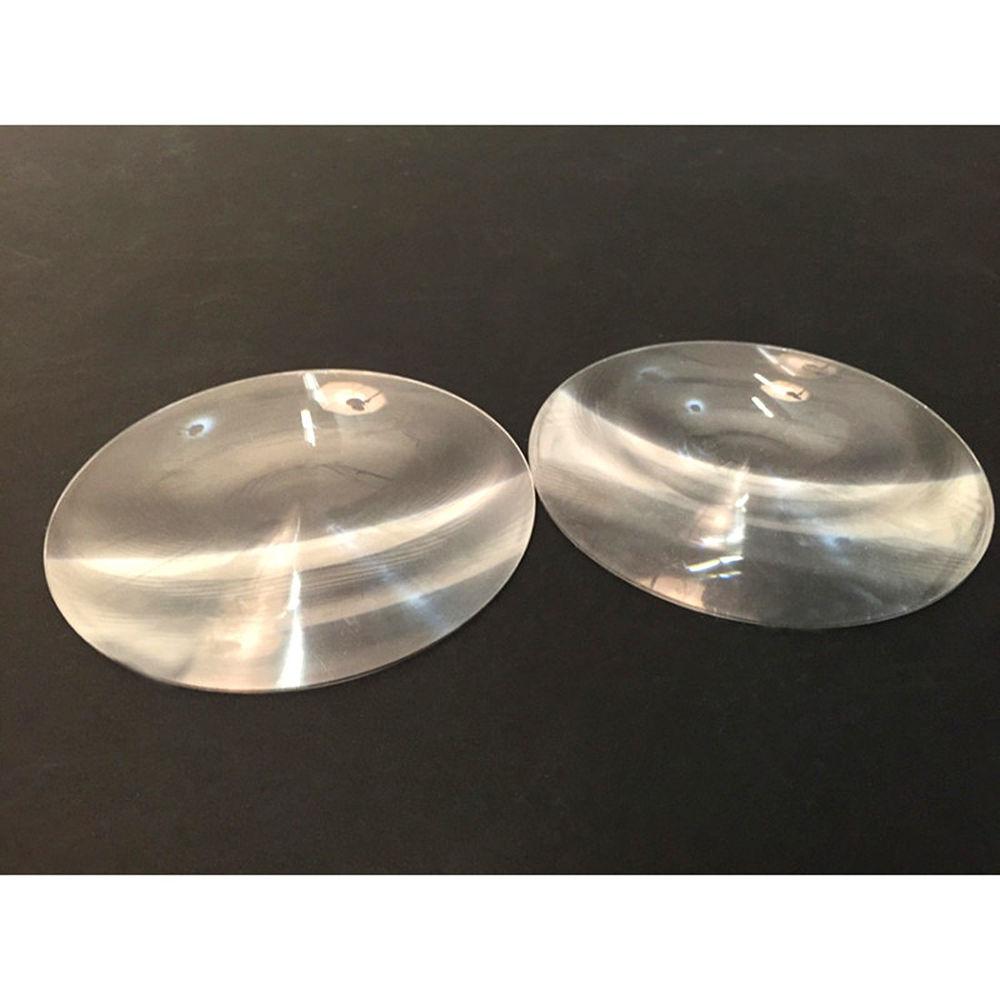

- Includes lens kit to narrow beam to 40° & 50°
- Compatible with ADJ RFC remote control (available separately)
UPC: 818651025538 In the Box American DJ COB Cannon Wash ST LED PAR Can (RGBA) Lens Kit for 40° & 50° Beam Angles powerCON power Cord Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the American DJ COB Cannon Wash ST LED PAR Can in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersAmerican DJ COB Cannon Wash ST Specs | LED Source | 1 x 150 W 4-in-1 COB LED (Red, Green, Blue, Amber) | | LED Life Expectancy | Approximately 50,000 Hours | | Light Output | 40° Beam
1970 lux at 6.6' / 2.0 m
474 lux at 13.1' / 4.0 m
50° Beam
1472 lux at 6.6' / 2.0 m
373 lux at 13.1' / 4.0 m
80° Beam
996 lux at 6.6' / 2.0 m
238 lux at 13.1' / 4.0 m | | Beam Angle | 80° Lens Installed
40° & 50° Lens Kit Included | | Dimming | Electronic: 0-100%
5 Curves: Standard, Stage, TV, Architectural, Theater | | Operation Modes | 5 Modes: RGBA Dimmer, Sound-Active, Auto, Static-Color, DMX | | Built-In Programs | LED Pulse and Strobe Effects | | Colors | RGBA Color Mixing
64 Built-In Color Macros | | DMX Channel Modes | 7 Modes: 3, 4, 5, 6, 7, 9, and 10 | | DMX Connectors | Inputs: 3-Pin XLR and 5-Pin XLR
Outputs: 3-Pin XLR and 5-Pin XLR | | Display/Controls | 4-Button DMX LED display | | Input Voltage | 100-240 VAC, 50/60 Hz, Auto-Sensing | | Power Connectors | PowerCON Input and Output | | Power Linking | Up to 5 Units | | Power Consumption (Maximum) | 132 W | | Fuse | 3 A | | Mounting | Dual Yoke for Truss or Ground | | Dimensions | With Bracket: 13.0 x 10.0 x 7.5" / 330.2 x 254.0 x 190.5 mm
Without Bracket: 8.8 x 7.5 x 7.5" / 222.3 x 190.5 x 190.5 mm | | Weight | 9.0 lb / 4.1 kg | | | | Package Weight | 11.33 lb | | Box Dimensions (LxWxH) | 17.85 x 11.55 x 9.55" |
