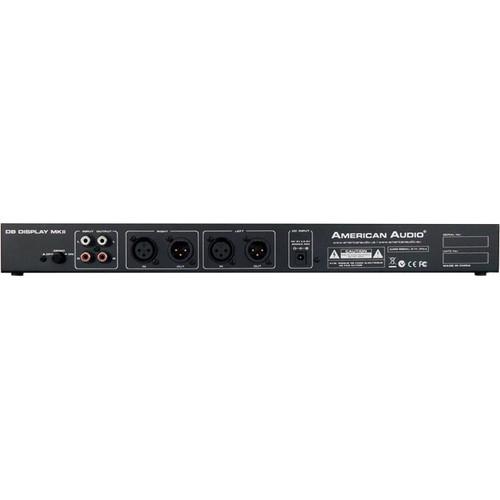

Designed for live sound applications, the American DJ DB DISPLAY MKII is a rackmount solution for monitoring your signal levels on stages, in clubs, at church, or in a mobile—yet entertaining—environment. Its LED display meters the sound of whatever is fed into its input jacks, going from green to amber to red depending on how loud the signal source is. You'll find two different modes on hand: Bar and Dot.With adjustable sensitivity in both channels, the DB DISPLAY MKII accepts XLR and RXA connections, and is relatively lightweight (for rackmount gear, anyway) at 2.5 lb. Includes a 5V power supply. UPC: 819730019493 In the Box American DJ DB Display MKII - LED dB Level Display & Amp Rack Lightshow
  • 5 VDC Power Supply
  • Limited 2-Year Warranty
  • Table of Contents




    Upload User Manual

    Have you got an user manual for the American DJ DB Display MKII - LED dB Level Display & Amp Rack Lightshow in electronic form? Please send it to us and help us expand our library of instruction manuals. Thank you, too, on behalf of other users.

    To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
    Upload PDF user manual Upload DOC user manual
    Please enter here the link to the user manual of this product:





    OR

    Enter here the file with the user manual of this product from your computer/phone:
    (60MB max; Permitted formats: PDF)

    0%


    Technical parameters

    American DJ DB DISPLAY MKII Specs

    Modes of Operation Dot and Bar
    I/O 2 x XLR inputs
    2 x RCA inputs
    2 x XLR outputs
    2 x RCA outputs
    Power Supply 5 VDC, 500 mA, included
    Dimensions 19.0 x 1.8 x 1.8" / 48.3 x 4.5 x 4.5 cm
    Weight 2.8 lb / 1.3 kg
    Package Weight 2.5 lb
    Box Dimensions (LxWxH) 22.2 x 4.4 x 3.5"
