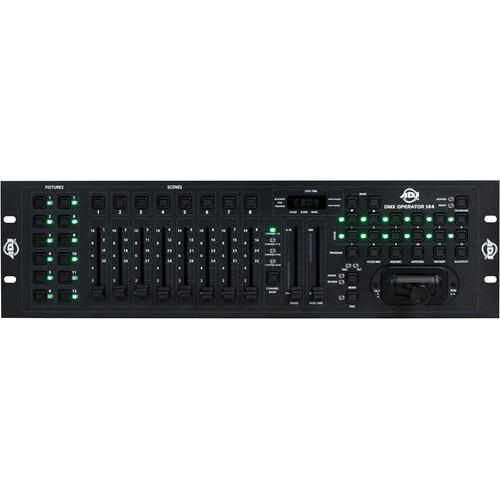

User Manual for American DJ DMX Operator 384 Lighting Console Click to enlarge the picture
Contents of the user manual for the American DJ DMX Operator 384 Lighting
- Product category: Lighting Consoles & Controllers American DJ
- Brand: American DJ
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for American DJ Lighting Consoles & Controllers
 |
User manual for the American DJ DMX Operator 384 Lighting contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any American DJ product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official American DJ user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a American DJ product will considerably shorten its lifespan!
|

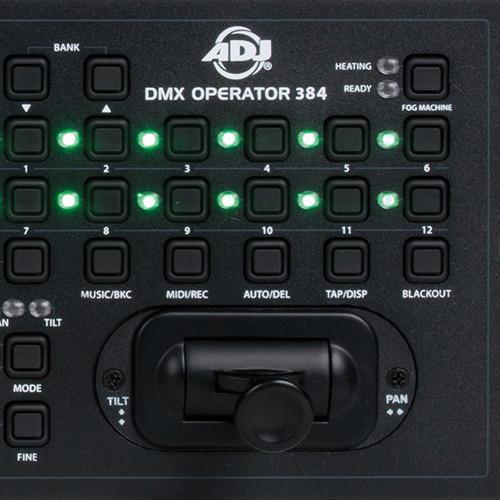

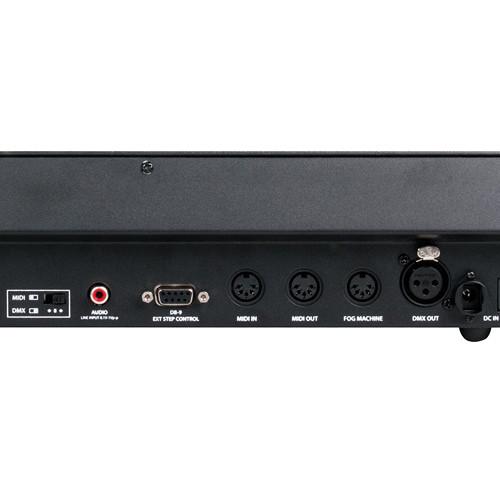

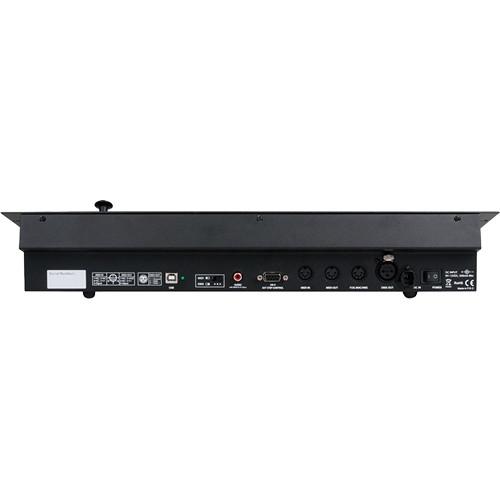

Product description Design and Operate DMX Lighting for Your Next Holiday Celebration Read More dcdyscwuqrwztyvtr The DMX Operator 384 Lighting Console from American DJ is a rack mount MIDI compatible controller for lighting effects that can handle 12 fixtures with 32 DMX channels each for a total of 384 total channels. The unit has 30 programmable scene banks with 240 total programmable scenes, an assignable joystick, and a built-in microphone for music triggering, as well as auto and manual triggering. The DMX Operator 384 has 16 sliders for direct control of channels, as well as MIDI control. Connectors include DMX in/out, 90-240 VAC adapter input and a MIDI input port for external triggering of banks and chases using a MIDI device. There is also a USB input for an optional gooseneck LED lamp. - Attributes
-
- 12 Fixtures, 32 DMX channels each, 384 total channels
- 30 Programmable scene banks - 240 total programmable scenes
- Record up to 6 chases with fade time and speeds
- MIDI control over banks, chases, and blackout
- Built-in microphone for music mode
- Auto mode program controlled by fade time sliders

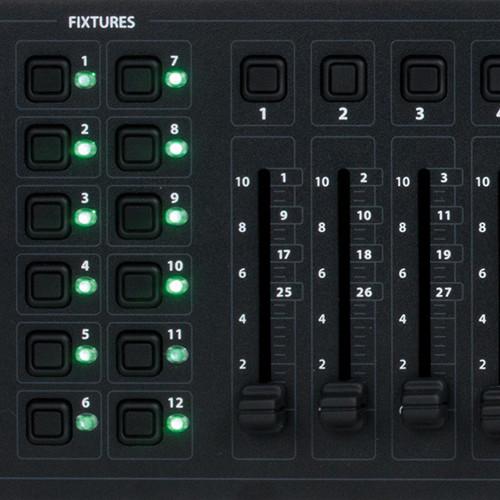

- 16 sliders for direct control of channels
- MIDI input for scene, chase, or blackout trigger
- Blackout button
UPC: 819730014344 In the Box American DJ DMX Operator 384 Lighting Console Power Adapter (90-240 VAC) User Manual Limited 1-Year Warranty What You Need to Know When Working with DMX Steven Gladstone 06/18/2018 dcdyscwuqrwztyvtr Table of Contents
|
Upload User Manual
Have you got an user manual for the American DJ DMX Operator 384 Lighting Console in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersAmerican DJ DMX OPERATOR 384 Specs | Protocols | DMX-512 USITT | | DMX Channels | 12 Fixtures with 32 channels per fixture, total of 384 channels | | Chases | 6 Chases with fade time and speeds | | Scene | 30 Banks, total of 240 programmable scenes | | Faders | 8 Control faders x4 channel banks | | Microphone | Built-in | | Connectors | 3-Pin DMX XLR in/out
MIDI input
DC input jack
USB lamp socket
Data pin configuration: pin 1 shield, pin 2 (-), pin 3 (+) | | Display | LED window | | Power Requirements | 12 VDC at 500 mA
AC power: 90-240 VAC, 50/60 Hz | | Temperature | Max. 113° (45°C) | | Dimensions (L x W x H) | 20.5 x 7.2 x 2.9" (520 x 183 x 73 mm) | | Weight | 6.6 lb (3.0 kg) | | | | Package Weight | 6.95 lb | | Box Dimensions (LxWxH) | 26.0 x 9.9 x 5.5" |
Rating80% users recommend this product to others. And what about you?
This product has already been rated by 86 owners. Add your rating and experience with the product.
