User Manual for American DJ Dotz Par 100 LED Par Click to enlarge the picture
Contents of the user manual for the American DJ Dotz Par 100 LED
- Product category: DJ & Effect Lights American DJ
- Brand: American DJ
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for American DJ DJ & Effect Lights
 |
User manual for the American DJ Dotz Par 100 LED contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any American DJ product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official American DJ user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a American DJ product will considerably shorten its lifespan!
|

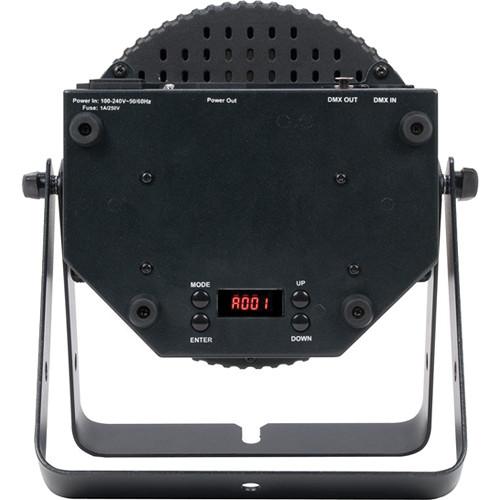

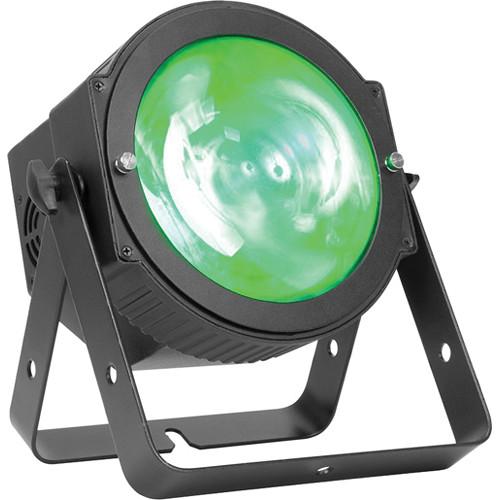

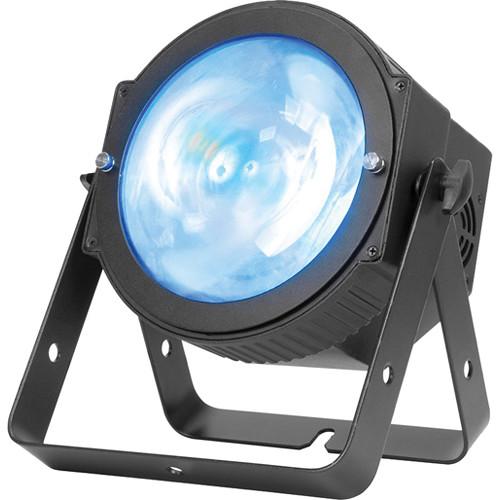

Product description The Dotz Par 100 from American DJ is par that features a 100 watt LED that uses a COB (Chip On Board) engine to produce a smooth color mixing par with no RGB shadows. It can be used for mobile or permanent wash lighting on stages, clubs, dance floors, houses of worship, and other similar venues.The Dotz Par 100 produces a wash of 80° (25° if you put on the supplied lens kit). It has 4 DMX channel modes for programming flexibility, 32 built-in color macros, and five selectable dim curves. The fixture has many pro features such as: 0-100% electronic dimming, strobe/pulse effects, flicker-free operation, DMX in/outs, power daisy-chaining, and a 4-button LCD DMX display.The Dotz Par 100 can be run in five different modes: stand-alone, built-in programs, sound activity, a DMX controller, or from an American DJ Par RF wireless remote control. Power draw is a total of 115 watts with all LEDs fully on. - LED pulse and strobe effect
- 5 Operational Modes: Auto run, sound active, color macro, dimmer, and DMX controller
- Single yoke allows fixture to be mounted
- COB Technology (Chip On Board) produces powerful, smooth RGB color mixing with rich palettes of color
- 3-pin XLR chassis mount connectors for DMX linking
- IEC AC in/out to daisy chain power (up to 9 Dotz Par 100's @ 110V and 19 Dotz Par 100s @ 230V)
UPC: 819730014238 In the Box American DJ Dotz Par 100 LED Par AC Power Cable Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the American DJ Dotz Par 100 LED Par in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersAmerican DJ Dotz Par 100 Specs | LEDs | TRI (3-In-1) RGB COB (chip on board) LED | | DMX Channel Modes | 4 DMX Channel Modes: 3, 4, 5, or 9 channel | | Operational Modes | Auto run, sound active, color macro, dimmer, and DMX controlled mode | | Built-In Programs | Preset colors and programs | | Macros | 32 built-in color macros | | Flicker Free Operation | Yes (no flickering on camera) | | Dimmer Curves | 5 selectable (standard, stage, TV, architectural, and theater) | | Effect | LED pulse and strobe | | Electronic Dimming | 0 to 100% | | Beam Angle | 80° (25° with supplied lens kit) | | Display | 4-button LCD DMX digital display on rear panel | | Remote Control Compatibility | Compatible with American DJ Par RF wireless remote control (sold separately) | | Yoke | Single for mounting | | Data Linkable | Via 3-pin XLR chassis mount connectors for DMX linking | | Power Linking | Via IEC power cables (9x Dotz Par 100s @ 110 V, 19x Dotz Par 100s @ 240 V) | | Light Source | 1x 100-Watt COB TRI LED (RGB: 3-In-1, rated at approximately 50,000 hours) | | Power Draw | 115 W total (all LEDs @ full on) | | Multi Voltage | Auto Sensing Power Supply: AC 100 V/60 Hz to 243 V/50 Hz | | Dimensions (L x W x H) | 7.9 x 4.0 x 7.9" (201 x 120 x 201 mm) | | Weight | 6.8 lb (3.1 kg) | | | | Package Weight | 9.65 lb | | Box Dimensions (LxWxH) | 14.0 x 11.5 x 7.4" |
