User Manual for American DJ Dotz Par RGB LED Wash Light Click to enlarge the picture
Contents of the user manual for the American DJ Dotz Par RGB LED
- Product category: DJ & Effect Lights American DJ
- Brand: American DJ
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for American DJ DJ & Effect Lights
 |
User manual for the American DJ Dotz Par RGB LED contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any American DJ product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official American DJ user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a American DJ product will considerably shorten its lifespan!
|

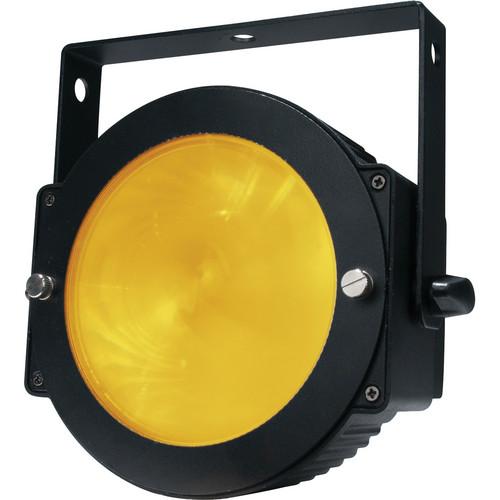

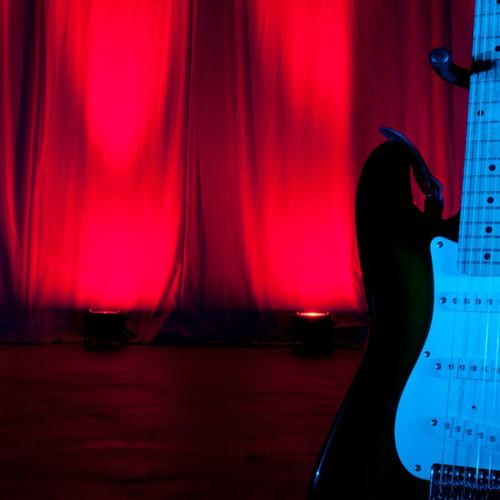

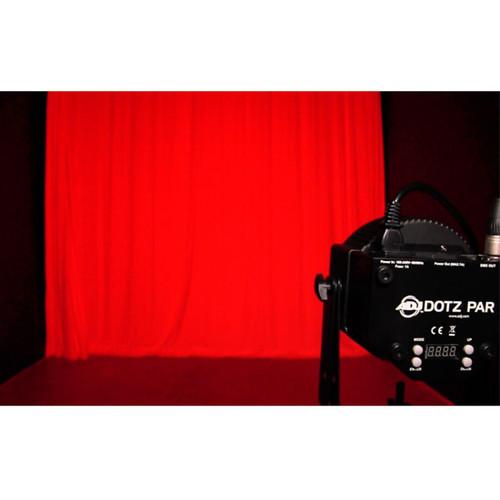

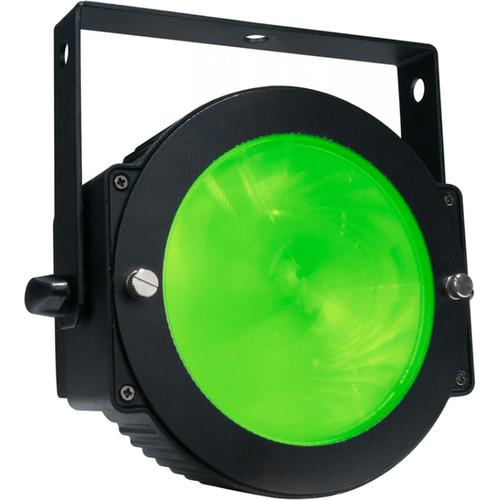

Product description The Dotz Par from American DJ is a high-powered 3-color LED PAR designed to produce color washes with high-output and smooth color-mixing without RGB shadows, for theater stages, clubs, retail stores, or churches.The unit features COB (Chip On Board) technology allowing the 36W LED to fit in the compact and low-profile (4.5"deep) enclosure – ideal for use in applications where space is limited. Furthermore, the DMX connectors are oriented sideways so the unit can be set flat on the ground or inside a truss.The Dotz Par gives you many creative options while still being easy to use. It offers automated programs such as Sound-Active, Auto-Run, Color Macro, Pulse & Strobe for fast setup, and DMX mode for in-depth control. The master/slave option lets you coordinate multiple fixtures without the need for a controller.Other features include flicker-free operation (ideal when used for video applications), 32 built-in color macros, and an auto-sensing power supply. You can also daisy-chain power for up to 13 fixtures (at 110V).The unit comes equipped with a single-yoke bracket that provides the head with a range of motion, and a lens kit to convert the 60° beam down to 25°. It is compatible with the ADJ Dotz Par RF remote control (available separately). - High-output, slim, low-profile PAR fixture
- 1 x 36W 3-in-1 (RGB) LED with COB (Chip On Board) technology – rated at approximately 50,000 hours
- 60° beam can be converted to 25° with included lens kit
- Electronic dimming: 0-100%
- 32 x built-in color macros
- 5 x operation modes – Dimmer, Sound-Active, Auto-Run, Color Macro, DMX-controlled
- 5 x selectable Dimming Curves – Standard, Stage, TV, Architectural, Theater
- LED pulse and strobe effects
- Daisy-chain up to 13 fixtures at 110V and 28 fixtures at 230V

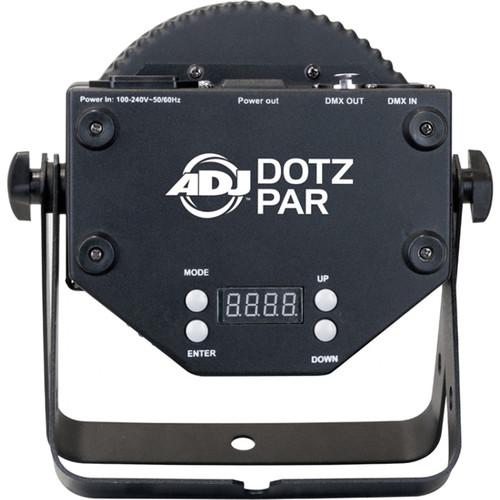

- 4-button LCD DMX display on rear panel
- DMX inputs & outputs are oriented sideways, allowing for the unit to be set flat on the ground or inside a truss
- Single-yoke mounting bracket
- Auto-sensing power supply
- Compatible with ADJ Dotz PAR RF remote control (available separately)
UPC: 819730012302 In the Box American DJ Dotz Par RGB LED Wash Light Power Cable (6') Lens Kit for 25° Beam Angle Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the American DJ Dotz Par RGB LED Wash Light in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersAmerican DJ Dotz Par Specs | LED Source | 1 x 36 W RGB (3-in-1) COB LED (red, green, blue) | | LED Life Expectancy | Approximately 50,000 hours | | Photometrics | 25° Beam (Full On, Lens On):
970 lux at 6.5' (2 m)
266 lux at 13.1' (4 m)
60° Beam (Full On, Lens Off):
130 lux at 6.5' (2 m)
36 lux at 13.1' (4 m) | | Beam Angle | 60° (25° with included lens kit) | | Dimming | Electronic: 0-100%
5 x Dimming Curves: Standard, Stage, TV, Architectural, Theater | | Operation Modes | 5 x Modes: RGB Dimmer, Color Macro, Sound-Active, Auto-Run, DMX | | Built-In Programs | Yes | | Colors | RGB color mixing
32 x built-in color macros | | DMX Connectors | Input: 3-pin XLR
Output: 3-pin XLR | | DMX Channel Modes | 4 x Channel Modes: 3, 4, 5, or 9 channels | | Display/Controls | 4-button DMX menu LED display | | Wireless Control | ADJ Dotz Par RF Remote Control (available separately) | | Input Voltage | 100-240 VAC, 50/60 Hz, auto-sensing | | Power Connectors | Input: IEC
Output: IEC | | Power Linking | 120 V: Maximum 13 fixtures
230 V: Maximum 28 fixtures | | Power Consumption (Maximum) | 36 W | | Fuse | 120 V: 2 A / 125 V
230 V: 1 A / 250 V | | Mounting | Single yoke | | Dimensions (LxWxH) | Without Bracket: 6.5 x 4.5 x 6.5" (165 x 114 x 165 mm)
With Bracket: 8.25 x 4.5 x 8.75" (209 x 114 x 222 mm) | | Weight | 5.0 lb (2.3 kg) | | | | Package Weight | 5.7 lb | | Box Dimensions (LxWxH) | 11.0 x 9.5 x 6.8" |
