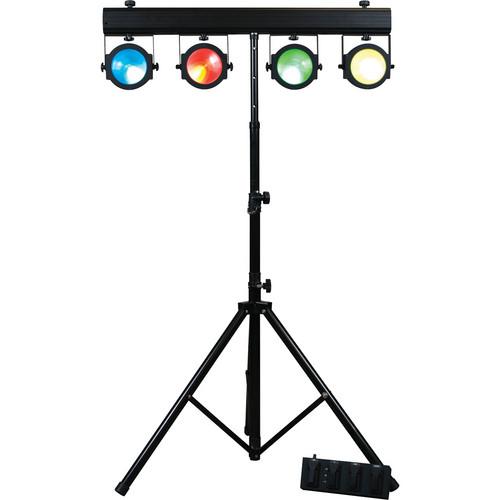

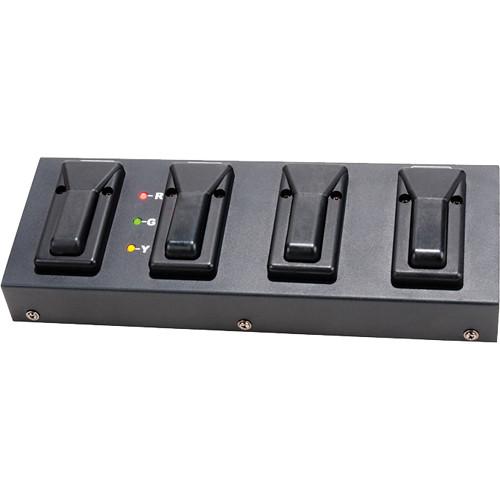

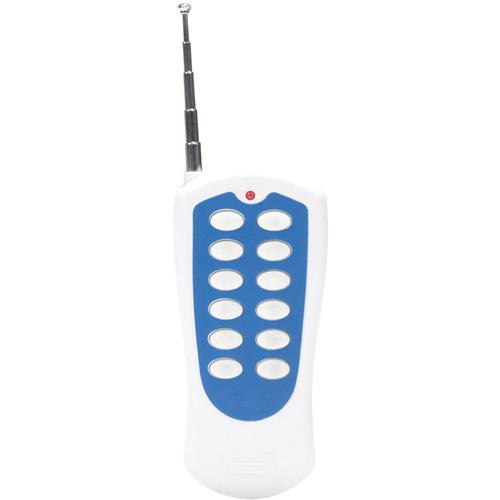

Product description The American DJ Dotz TPar System is a mobile solution designed for lighting live performances such as DJing at a party, concert, or special event. The system consists of four chip-on-board LED par wash fixtures, one foot controller, one lighting stand, one RF remote control, one stand bag, and a soft case for the lighting system.
Each fixture on the T-Bar systems features a 30-watt chip on board RGB LED for wide saturated color washes, smooth RGB color mixing, a 90° beam angle which can be changed to 25° with the included lens kit, and an expected battery life of approximately 50,000 hours. For controls, the unit features 4 operation modes including auto run and sound active using the integrated microphone, as well as 14 built-in programs with controllable dim curves such as standard, stage, TV, architectural, and theater with strobing and 0 to 100% dimming. It also features DMX-512 control capability via XLR input and output jacks. Two smaller lighting fixtures can be attached to the top and be plugged directly into the T-bar. UPC: 819730012319 In the Box American DJ Dotz TPar System with Light, Stand, and Bag 4 x COB LED Wash Fixtures Lens Adapter Kit Set of Mounting Hardware Foot Controller Lighting Stand RF Remote Control Stand Bag Soft Case for Lighting System Limited 2-Year Warranty User Manual PDF 1.3mb Table of Contents
|
Upload User Manual
Have you got an user manual for the American DJ Dotz TPar System with Light, Stand, and Bag in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersAmerican DJ Dotz TPar System Specs | Modes of Operation | Sound Active, Auto Run, Built in Programs, DMX-512 | | Programs | 14 | | DMX | 5 Channel modes: 3, 5, 9, 12, and 18 channels
1x XLR DMX In
1x XLR DMX out | | Display | Digital DMX Display with 4-button menu for easy navigation | | Dimming | 0 to 100%
5 curves: Standard, Stage, TV, Architecture, & Theater | | Beam Angle | 90°
Includes 25° angle lens kit | | Bulb Life | Approximately 50,000 Hours | | Remote Control | Up to 25 meters | | Light Source | 4x fixtures
1x 30 W TRI Color COB LED per fixture | | Lux | At 3 M: 1345 | | Power Draw | 144 W Max | | Plugs | 2x power plugs (120 V = Edison or 230 V - Shuko) | | Power Requirement | 100 to 240 VAC 50/60 Hz (IEC input) | | Dimensions | 39.5 x 12.75 x 3.25" (100 x 320 x 82.0 mm) | | Weight | 35 lb (16 kg) | | | | Package Weight | 49.0 lb | | Box Dimensions (LxWxH) | 48.0 x 21.0 x 7.5" |
