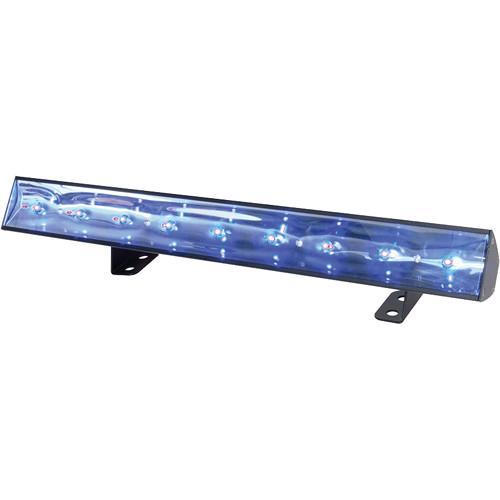

Product description The American DJ Eco UV Bar 50 IR is a high-output, UV LED linear fixture designed to create brilliant ultraviolet color washes. Used to enhance the appearance of white or fluorescent colors with a ghostly glow, it is well suited for clubs, theatrical productions, special-effects installations, and mobile light shows. The Eco UV Bar 50 IR features nine, bright 3W UV LEDs with a wide 120° beam angle. It is equipped with mounting brackets, which can be adjusted across a slide rail to help achieve the desired position when mounting the fixture on walls, ceilings, or on the ground for wall washing. Low-maintenance and easy to use, the DJ Eco UV Bar 50 IR features an on/off switch on the back panel and comes with a UC IR wireless remote that enables you to control the on/off function and strobe speed, from up to 25'. - Key Features
-
- Bright, high-output ultraviolet bar with 9 x 3W UV (ultraviolet) LEDs
- Ideal for performance stages, theatrical productions, and special effects installations

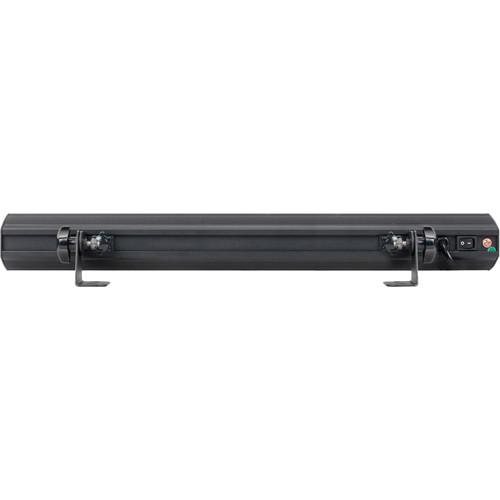

- On/off switch on rear panel
- Beam angle: 120°
- LED strobe effect

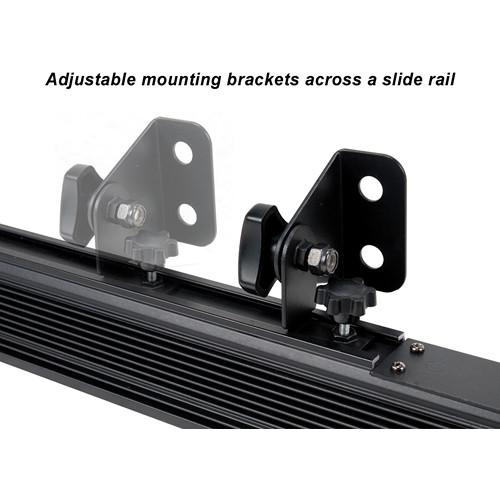

- Adjustable mounting brackets across a slide rail lets you achieve desired mounting position when attaching to walls or ceilings
- Power draw: 30W

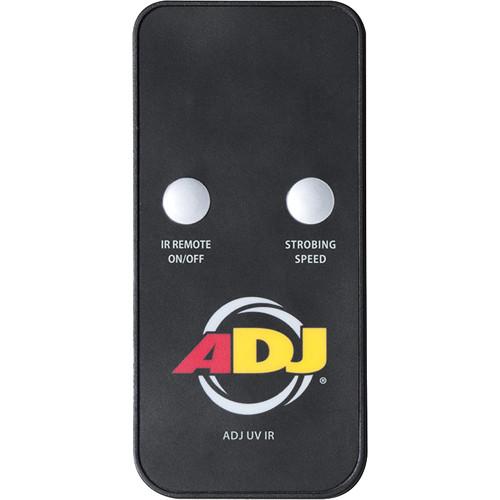

- Includes UC IR wireless remote – controls on/off and strobe speed
- Long-life LEDs: Rated at approximately 50,000 hours
- Universal auto-sensing power supply
UPC: 819730012661 In the Box American DJ Eco UV Bar 50 IR - Ultraviolet LED Linear Fixture UC IR Wireless Remote Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the American DJ Eco UV Bar 50 IR - Ultraviolet LED Linear Fixture in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersAmerican DJ ECO UV Bar 50 IR Specs | Light Source | 9 x 3 W UV (ultraviolet) LEDs | | Life Expectancy | Approximately 50,000 hours | | Color | UV (ultraviolet) | | Wavelength | 390 to 410 nm | | Refresh Rate | 1 kHz | | Beam Angle | 120° | | Built-In Programs | Strobe effect | | Wireless Control | UC IR remote, strobe (included)
Controls: On/off and strobe speed
Range: 25.0' / 7.6 m, line of sight | | Mounting | Adjustable brackets across slide rail | | Power Connectors | Input: IEC
Output: IEC | | Input Voltage | 100-240 VAC, 47/63 Hz, auto-sensing | | Power Linking | Maximum 20 fixtures | | Power Consumption (Maximum) | 30 W | | Certifications | ETL approved | | Dimensions (LxWxH) | 19.7 x 2.4 x 4.5" / 50.0 x 6.1 x 11.4 cm | | Weight | 3.2 lb / 1.5 kg | | | | Package Weight | 4.25 lb | | Box Dimensions (LxWxH) | 22.6 x 7.7 x 4.9" |
