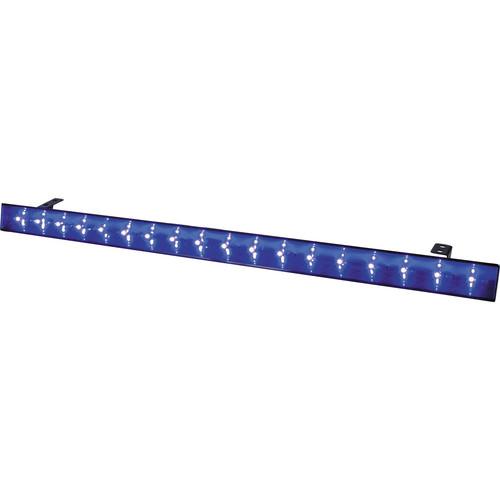

User Manual for American DJ Eco UV Bar DMX - Ultraviolet LED Fixture Click to enlarge the picture
Contents of the user manual for the American DJ Eco UV Bar DMX
- Product category: DJ & Effect Lights American DJ
- Brand: American DJ
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for American DJ DJ & Effect Lights
|
User manual for the American DJ Eco UV Bar DMX contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any American DJ product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official American DJ user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a American DJ product will considerably shorten its lifespan!
|
Product description The bright Eco UV Bar DMX from American DJ is a high-powered UV LED bar designed to create wide ultraviolet color washes with the added flexibility of DMX control. Used to enhance the appearance of white or fluorescent colors with a ghostly glow, it is well suited for clubs, theatrical productions, special-effects installations, and mobile light shows.The unit features eighteen bright 3W UV LEDs with a wide 120° beam angle. It can be mounted on walls and ceilings, or positioned on the floor for wash effects on walls or curtains (mounting bracket is included).Easy to use, the Eco UV Bar can be operated in stand-alone mode or DMX mode for in-depth control. The included IR remote lets you activate and set the speed of the strobe function, while the master/slave option lets you coordinate multiple fixtures without the need for a controller, as they will react to sound.Other features include a 3-button LED display and an auto-sensing power supply. You can also daisy-chain power for up to 10 fixtures. Features - Bright, high-output ultraviolet bar with eighteen 3W UV LEDs
- Manual and DMX operation modes
- On/off switch on rear panel
- Includes IR remote to activate/deactivate strobe and control strobe speed
- DMX linking via 3-pin XLR cable
- IEC AC input and output on rear panel to daisy-chain power (up to 10 fixtures)
- Long-life LEDs rated at approximately 50,000 hours
- Universal auto-sensing power supply
- Includes brackets for wall/ceiling mounting or to install on the floor for wash effect on walls
UPC: 819730010858 In the Box American DJ Eco UV Bar DMX - Ultraviolet LED Fixture IR Wireless Remote Mounting Brackets Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the American DJ Eco UV Bar DMX - Ultraviolet LED Fixture in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersAmerican DJ ECO UV Bar DMX Specs | Light Source | 18 x 3 W UV (ultraviolet) LEDs | | Life Expectancy | Approximately 50,000 hours | | Wavelength | 395 to 405 nm | | Beam Angle | 120° | | Dimming | Electronic: 0-100%
Strobe Effect | | DMX Connectors | Input: XLR 3-pin
Output: XLR 3-pin | | DMX Channel Modes | 1 x Mode: 3 channels | | Display/Controls | LED display with 3-button control panel | | Wireless Control | IR remote (included) | | Input Voltage | 100-240 VAC, 47/63 Hz, auto-sensing | | Power Connectors | Input: IEC
Output: IEC | | Power Linking | Maximum 10 fixtures | | Power Consumption (Maximum) | 52 W | | Fuse | 1 A | | Dimensions (LxWxH) | 39.50 x 2.50 x 4.75" (100.3 x 6.4 x 12.1 cm) | | Weight | 5.0 lb (2.3 kg) | | | | Package Weight | 7.65 lb | | Box Dimensions (LxWxH) | 41.5 x 7.0 x 4.6" |
