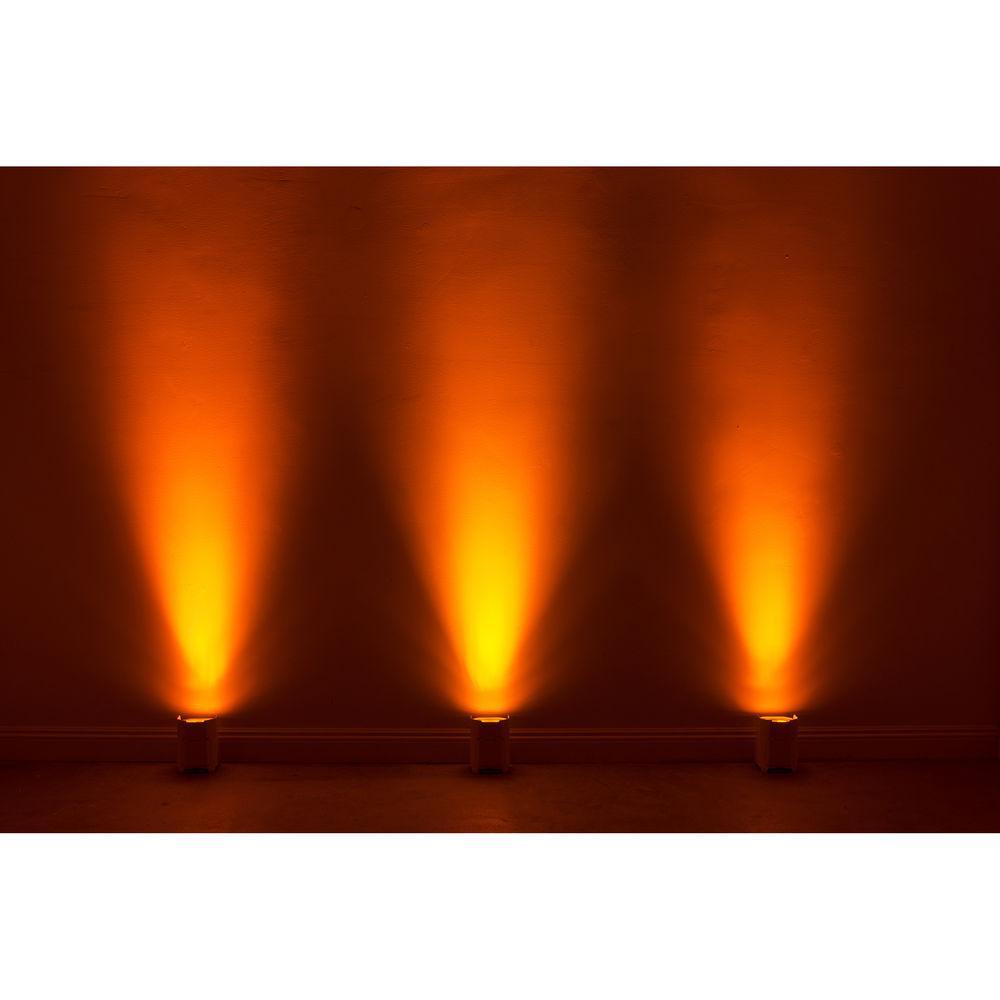

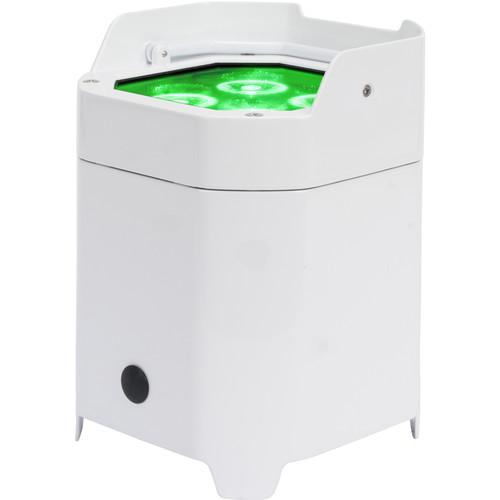

Product description The battery-powered, pearl American DJ Element Hex IP is an RGBAW+UV (red, green, blue, amber, white + UV) LED PAR fixture designed to produce color washes with vibrant and smooth color mixing. It features an IP54 rating, which allows you to use it outdoors without worrying about moisture, dirt or dust, for uplighting outdoor venues, garden parties, events near swimming pools, and more.The Element Hex IP is equipped with four 10W (6-in-1) Hex LEDs, which create a beam with a 20° angle. With a rechargeable, built-in battery that lasts up to 11 hours on a full charge, and built-in wireless DMX WiFly EXR technology, mobile DJs can quickly position their washes anywhere in the venue, without running DMX cables and regardless of power-outlet availability.It offers automated programs such as Sound-Active, Auto-Run, Strobe, RGBAW+UV Dimmer, and Static Color modes for fast setup in standalone mode. DMX mode is provided for in-depth control. It also provides 0-100% electronic dimming with five dimmer curves.Other features include flicker-free operation (ideal when used for video applications), 64 built-in color macros, an LED display with 4-button menu for easy navigation, and an auto-sensing, multi-voltage power supply.It can be wirelessly controlled with the UC IR remote or the Airstream IR iOS app (both available separately).The fixture comes equipped with a built-in kickstand that lets you angle your light. -
- Battery-powered, uplighting PAR with 4 x 10W UV RGBAW+UV LEDs (6-in-1, red, green, blue, amber, white, UV)
- Rechargeable lithium-ion battery lasts 11 hours on full charge
- Built-in WiFly EXR wireless DMX for controlling fixture with no wire, up to 2500' away
- IP54-rated, designed for outdoor use
- 5 x DMX channel modes: 6, 7, 8, 11, 12 channels
- 5 x operational modes: RGBAW+UV Dimmer mode, Sound Active mode, Auto Run mode (with 16 color change modes, one color/fade combo mode), Static Color mode, DMX-controlled
- Electronic dimming: 0-100%, with five dimmer curves (Standard, Stage, TV, Architectural, Theater)
- LED pulse and strobe effect
- 64 x built-in color macros
- Flicker-free light for use with video applications
- 3-pin DMX in/out connections under fixture
- LED display with 4-button menu for easy navigation
- Compatible with ADJ UC IR remote control (available separately) and ADJ Airstream IR App (free download)
- Stylish design with pearl housing
- Lightweight, with carry handle for easy transportation
- Built-in kickstand to angle fixture
- No duty cycle
- Energy Saving mode
- Multi-voltage operation: 100-240 VAC, 50/60 Hz, auto-sensing
UPC: 818651023930 In the Box American DJ Element Hex IP - Outdoor Battery-Powered RGBAW+UV LED Par with Wireless DMX (Pearl) AC Power Cable Limited 2-Year Warranty Limited 180-Day Warranty on Batteries Table of Contents
|
Upload User Manual
Have you got an user manual for the American DJ Element Hex IP - Outdoor Battery-Powered RGBAW UV LED Par with Wireless DMX in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersAmerican DJ Element HEXIP Specs | Optical | 4 x 10 W (6-in-1) RGBAW+UV LEDs (red, green, blue, amber, white, UV)
Life Expectancy: Approximately 50,000 hours
Lux: 684 at 6.5' / 2 m, 171 at 13.1' / 4 m
Beam Angle: 20°
PWM Frequency: 1000 Hz | | Connections | 3-pin DMX in/out connections located under fixture
IEC connection to power/charge fixture | | Controls | Control protocol: WiFly EXR DMX
5 x DMX Channels: 6, 7, 8, 11, 12
5 x Operational Modes: RGBAW+UV Dimmer mode, Sound Active mode, Auto Run mode (with 16 color change modes, 16 color fade modes, one color/fade combo mode), Static Color mode, DMX-controlled
Remote Control
Compatible with WiFly EXR DMX, UC-IR, Airstream IR | | Specifications | IP54 outdoor-rated
Built-in WiFly EXR wireless DMX (up to 2500' / 762 m when used with ADJ's WiFly EXR battery transceiver)
0-100% electronic dimming with 5 x dimming curves
64 built-in color macros
Strobe Flash Rate: 0.2 Hz to 11 Hz
No duty cycle
Energy Saving mode
Flicker-free operation

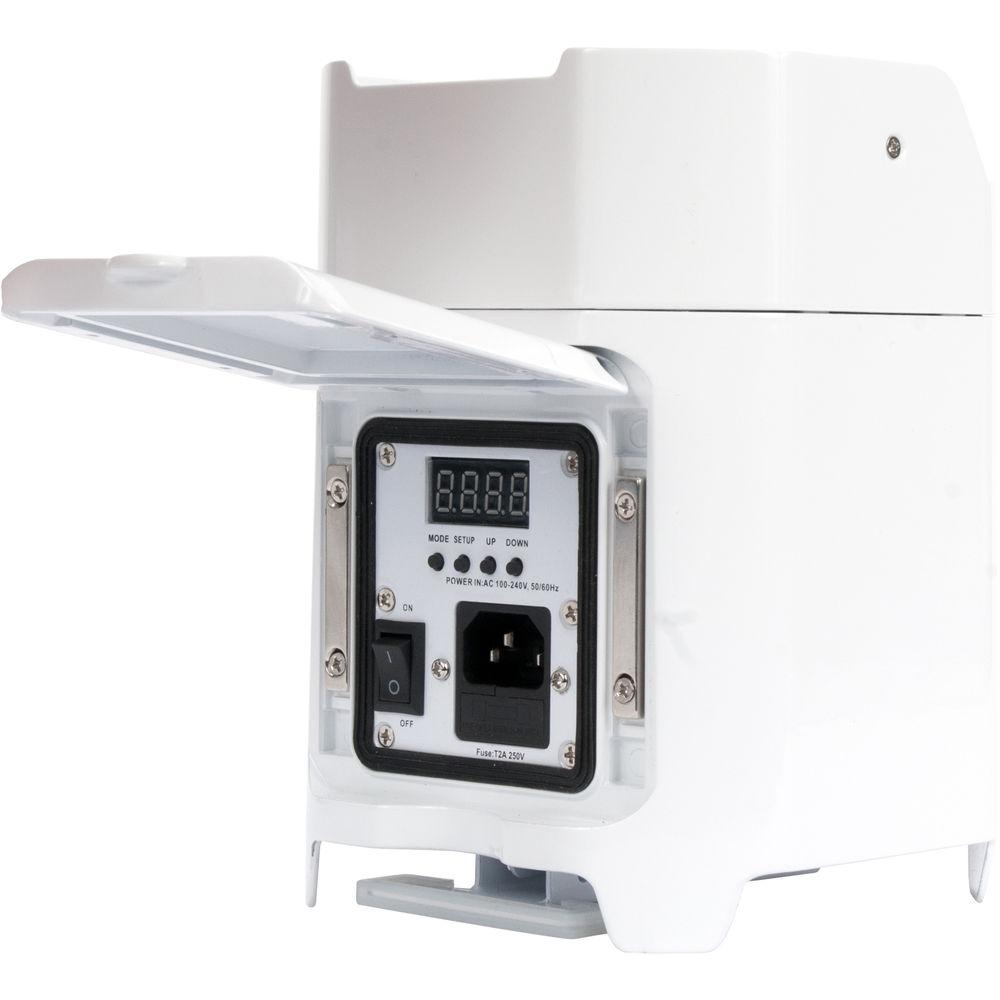

4-button DMX menu display on rear panel with water-resistant hatch

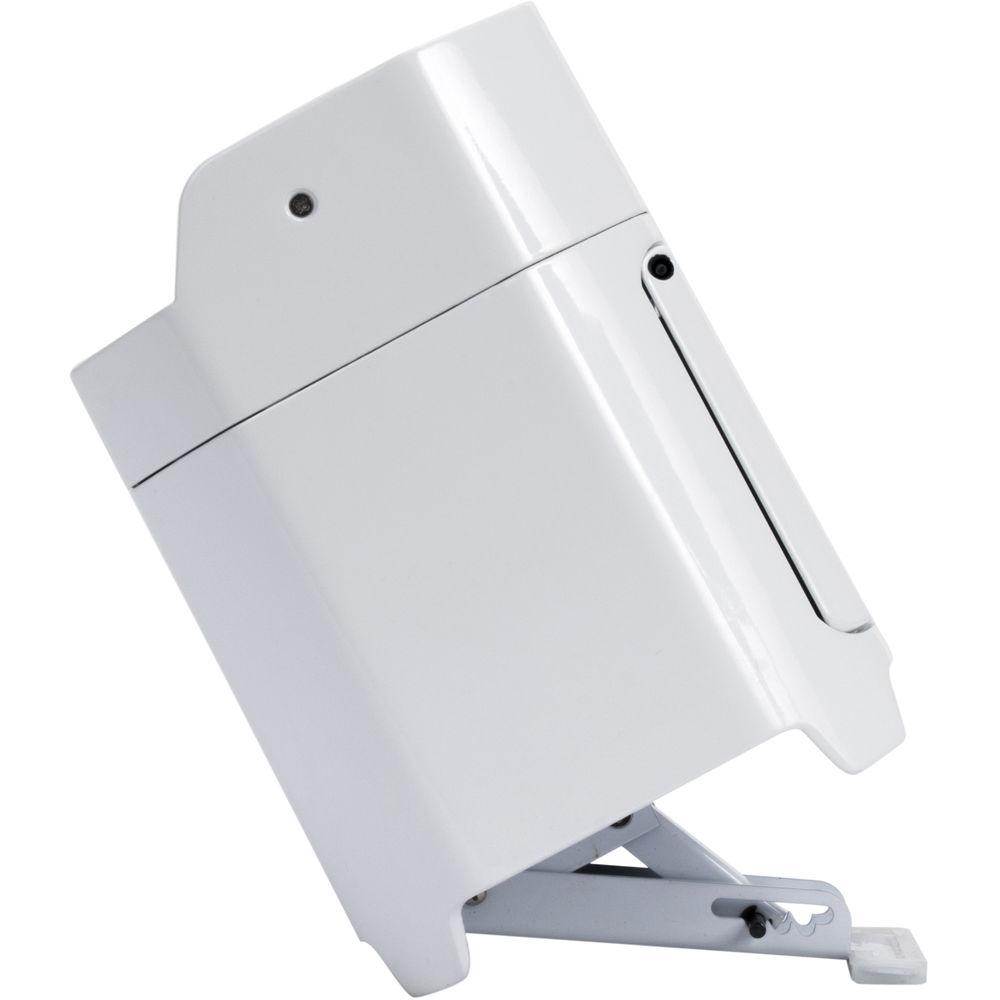

Built-in kickstand to angle fixture when on the floor | | Battery | Battery Type: Fixed lithium-ion battery
Battery Energy: 73.26 Wh
Battery Weight: 0.92 lb / 0.42 kg
Battery Voltage: 11.1 V
Battery Capacity: 6.6 Ah
Total Lithium-Ion Cells: 9 pieces
Battery Wrap Material: PVC sleeving with highland barley paper
Battery Charge Time: 4.5 hours (with power switch on)
Battery Life: 11 hours (single color) | | Electrical | Multi-Voltage Operation: 100-240 VAC, 50/60 Hz
Power Draw (All LEDs at Full On): 45 W, 0.5 A at 120 V / 60 Hz or 42 W, 0.2 A at 220 V / 50 Hz | | Housing Color | Pearl | | Certifications | CE
IP54 outdoor-rated | | Dimensions (L x W x H) | 5.5 x 5.5 x 7.5" / 13.9 x 13.9 x 19.0 cm | | Weight | 6.5 lb / 2.9 kg |
