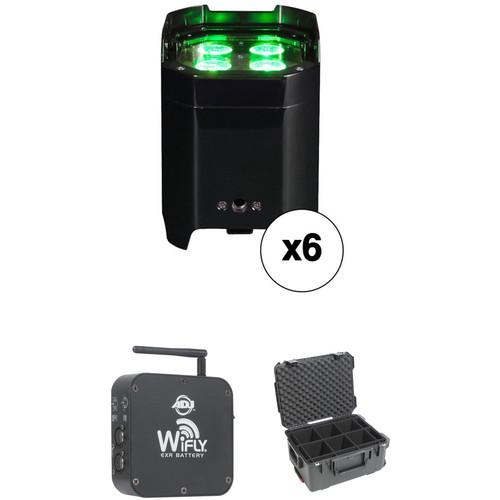

User Manual for American DJ Element HEX IP RGBAW UV LED Par with Wireless DMX Kit Click to enlarge the picture
Contents of the user manual for the American DJ Element HEX IP RGBAW
- Product category: DJ & Effect Lights American DJ
- Brand: American DJ
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for American DJ DJ & Effect Lights
|
User manual for the American DJ Element HEX IP RGBAW contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any American DJ product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official American DJ user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a American DJ product will considerably shorten its lifespan!
|
Product description The black American DJ Element HEX IP RGBAW+UV LED Par with Wireless DMX Kit from B&H includes six Element Hex IP outdoor (IP54 rated) battery-powered RGBAW+UV LED Par fixtures with wireless DMX and power cables, a WIFLY EXR battery-powered transceiver, and an SKB iSeries 31-201510PAR Chauvet Freedom PAR case. This kit can be used for uplighting outdoor venues, garden parties, events near swimming pools, and more. Produce color washes with vibrant and smooth color mixing without worrying about moisture, dirt, or dust. - 6 x American DJ Element Hex IP - Outdoor Battery-Powered RGBAW+UV LED Par with Wireless DMX (Black) The battery-powered, black American DJ Element Hex IP is an RGBAW+UV (red, green, blue, amber, white + UV) LED PAR fixture designed to produce color washes with vibrant and smooth color mixing. It features an IP54 rating, which allows you to use it outdoors without worrying about moisture, dirt or dust, for uplighting outdoor venues, garden parties, events near swimming pools, and more.The Element Hex IP is equipped with four 10W (6-in-1) Hex LEDs, which create a beam with a 20° angle. With a rechargeable, built-in battery that lasts up to 11 hours on a full charge, and built-in wireless DMX WiFly EXR technology, mobile DJs can quickly position their washes anywhere in the venue, without running DMX cables and regardless of power-outlet availability.It offers automated programs such as Sound-Active, Auto-Run, Strobe, RGBAW+UV Dimmer, and Static Color modes for fast setup in standalone mode. DMX mode is provided for in-depth control. It also provides 0-100% electronic dimming with five dimmer curves.Other features include flicker-free operation (ideal when used for video applications), 64 built-in color macros, an LED display with 4-button menu for easy navigation, and an auto-sensing, multi-voltage power supply.It can be wirelessly controlled with the UC IR remote or the Airstream IR iOS app (both available separately).The fixture comes equipped with a built-in kickstand that lets you angle your light.
-
- Battery-powered, uplighting PAR with 4 x 10W UV RGBAW+UV LEDs (6-in-1, red, green, blue, amber, white, UV)
- Rechargeable lithium-ion battery lasts 11 hours on full charge
- Built-in WiFly EXR wireless DMX for controlling fixture with no wire, up to 2500' away
- IP54-rated, designed for outdoor use
- 5 x DMX channel modes: 6, 7, 8, 11, 12 channels
- 5 x operational modes: RGBAW+UV Dimmer mode, Sound Active mode, Auto Run mode (with 16 color change modes, one color/fade combo mode), Static Color mode, DMX-controlled
- Electronic dimming: 0-100%, with five dimmer curves (Standard, Stage, TV, Architectural, Theater)
- LED pulse and strobe effect
- 64 x built-in color macros
- Flicker-free light for use with video applications
- 3-pin DMX in/out connections under fixture
- LED display with 4-button menu for easy navigation
- Compatible with ADJ UC IR remote control (available separately) and ADJ Airstream IR App (free download)
- Stylish design with black housing
- Lightweight, with carry handle for easy transportation
- Built-in kickstand to angle fixture
- No duty cycle
- Energy Saving mode
- Multi-voltage operation: 100-240 VAC, 50/60 Hz, auto-sensing
UPC: 818651020502 - American DJ WiFLY EXR Battery Powered Transceiver The American DJ WiFLY EXR Battery Powered Transceiver is a transmitter and receiver combination that is compatible with all ADJ WiFLY products. The unit can connect to a DMX console and transmit DMX signals to other transceivers up to 2,500' away.The WiFLY EXR Battery runs on the 2.4 GHz frequency to thwart interference, has signal strength and battery power indicators on its side, and will run for 20 hours before needing recharging. A magnetic bottom makes mounting the WiFLY EXR to most metal surfaces quick and easy.
- Attributes
-
- Battery-powered wireless DMX transceiver (transmitter/receiver in one)
- Battery life: Up to 20 hours
- Battery life and WiFLY wireless signal strength indicators on side panel
- Magnetic bottom plate for temporary, quick and easy mounting to metal fixtures or objects
- Compatible with all ADJ WiFLY products
- Up to 2,500' wireless range when placed in open line-of-sight
- One transmitter can send to many receivers using the same radio channel
- Receivers automatically listen for transmitters (no pairing required)
- Supports up to 15 DMX-512 universes
- Dip Switches to select from 15 different radio channels (one DMX universe per channel)
UPC: 819730016614 - SKB iSeries 3i-201510PAR Chauvet Freedom PAR Case The iSeries 3i-201510PAR Chauvet Freedom PAR Case from SKB is a sturdy polypropylene co-polymer resin case that is built to handle the rigors of the road. Designed to store and protect 6 Chauvet PAR fixtures, the case is also compatible with many other similarly sized models. The case's rugged exterior is resistant to corrosion, fungus, solvents and UV and its gasket seal makes it IP67 rated water tight. A convenient push-button release reveals a pull handle that allows use of the case's in-line wheels. The interior's ridged dividers are covered in dense PE foam to thwart impact damage to your lights. Ten pockets are positioned around the lights in the interior for cables and other accessories.
- Attributes
-
- Rigid dividers for product separation
- Holds six PAR lights
- 10 Accessory pockets
- Ultra high-strength polypropylene copolymer resin
- UV, solvent, corrosion and fungus resistant (MIL-STD-810F)
- Complete gasket seal makes these cases absolutely watertight (MIL-STD-C-4150J)
- Automatic ambient pressure equalization value (MIL-STD-648C and IP67)
- Resistant to corrosion and impact damage
- Molded-in hinges
- Trigger-release latch system
- Rubber overmolded cushion grip handle
- Convenient push-button release pull handle
- In-line wheels for easy transport
UPC: 789270997967 In the Box - 6 x Element Hex IP - Outdoor Battery-Powered RGBAW+UV LED Par with Wireless DMX (Black) caqzvdvvyccrbabdveezrzvddbtzcba
- AC Power Cable
- Limited 2-Year Warranty
- Limited 180-Day Warranty on Batteries
- WiFLY EXR Battery Powered Transceiver
- SKB - iSeries 3i-201510PAR Chauvet Freedom PAR Case
Table of Contents
|
Upload User Manual
Have you got an user manual for the American DJ Element HEX IP RGBAW UV LED Par with Wireless DMX Kit in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - 6 x American DJ Element Hex IP - Outdoor Battery-Powered RGBAW+UV LED Par with Wireless DMX (Black)
| Optical | 4 x 10 W (6-in-1) RGBAW+UV LEDs (red, green, blue, amber, white, UV)
Life Expectancy: Approximately 50,000 hours
Lux: 684 at 6.5' / 2 m, 171 at 13.1' / 4 m
Beam Angle: 20°
PWM Frequency: 1000 Hz | | Connections | 3-pin DMX in/out connections located under fixture
IEC connection to power/charge fixture | | Controls | Control protocol: WiFly EXR DMX
5 x DMX Channels: 6, 7, 8, 11, 12
5 x Operational Modes: RGBAW+UV Dimmer mode, Sound Active mode, Auto Run mode (with 16 color change modes, 16 color fade modes, one color/fade combo mode), Static Color mode, DMX-controlled
Remote Control
Compatible with WiFly EXR DMX, UC-IR, Airstream IR | | Specifications | IP54 outdoor-rated
Built-in WiFly EXR wireless DMX (up to 2500' / 762 m when used with ADJ's WiFly EXR battery transceiver)
0-100% electronic dimming with 5 x dimming curves
64 built-in color macros
Strobe Flash Rate: 0.2 Hz to 11 Hz
No duty cycle
Energy Saving mode
Flicker-free operation
4-button DMX menu display on rear panel with water-resistant hatch
Built-in kickstand to angle fixture when on the floor | | Battery | Battery Type: Fixed lithium-ion battery
Battery Energy: 73.26 Wh
Battery Weight: 0.92 lb / 0.42 kg
Battery Voltage: 11.1 V
Battery Capacity: 6.6 Ah
Total Lithium-Ion Cells: 9 pieces
Battery Wrap Material: PVC sleeving with highland barley paper
Battery Charge Time: 4.5 hours (with power switch on)
Battery Life: 11 hours (single color) | | Electrical | Multi-Voltage Operation: 100-240 VAC, 50/60 Hz
Power Draw (All LEDs at Full On): 45 W, 0.5 A at 120 V / 60 Hz or 42 W, 0.2 A at 220 V / 50 Hz | | Housing Color | Black | | Certifications | CE
IP54 outdoor-rated | | Dimensions (L x W x H) | 5.5 x 5.5 x 7.5" / 13.9 x 13.9 x 19.0 cm | | Weight | 6.5 lb / 2.9 kg | | | | Box Dimensions (LxWxH) | 10.0 x 10.0 x 9.5" | - American DJ WiFLY EXR Battery Powered Transceiver
| Type | Battery-powered combination transmitter/receiver | | Frequency | 2.4 GHz DSSS | | Channels | 15, supports 1 DMX universe per channel | | Wireless Range | Up to 2,500' (760 m) when placed line-of-sight | | Power | Built-in rechargeable battery
9-12 VDC charger/AC adapter | | Battery Life | Up to 20 hours | | Input / Output | 3-pin and 5-pin DMX in/out | | Dimensions | 5.8 x 5.3 x 2.4" (148 x 135 x 62 mm) | | Weight | 1.6 lb (0.75 kg) | | | | Box Dimensions (LxWxH) | 11.3 x 7.5 x 4.8" | - SKB iSeries 3i-201510PAR Chauvet Freedom PAR Case
| | | Interior Dimensions | 15.5 x 20 x 10" / 39.3 x 50.8 x 25.4 cm | | | | Closure Type | Latch | | Material of Construction | Polypropylene | | Lid Depth | 2" / 5.1 cm | | Exterior Dimensions (W x H x D) | 22.9 x 18.0 x 11.6" / 58.2 x 45.6 x 29.3 cm | | Weight | 20.2 lb / 9.1 kg | | | | Box Dimensions (LxWxH) | 23.5 x 18.2 x 11.8" |
