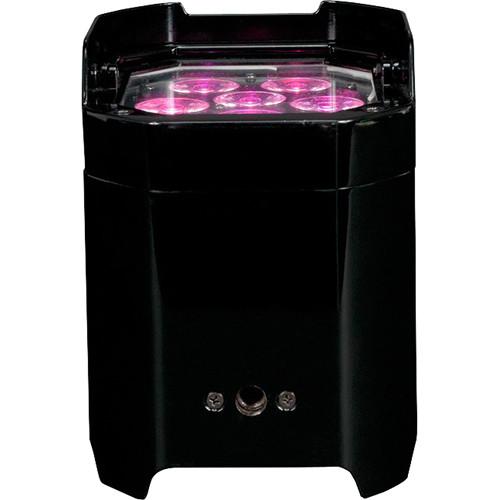

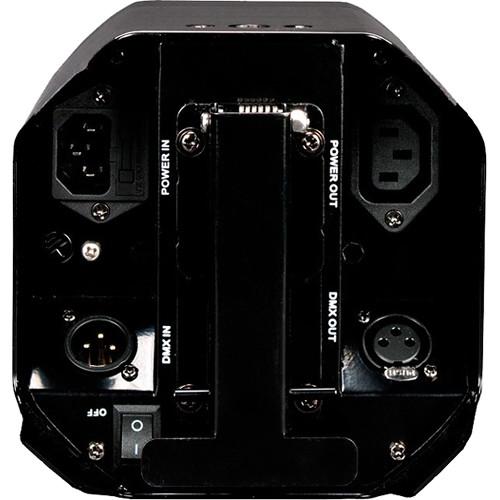

Product description The American DJ Element QA WiFLY Battery Powered LED is a battery-powered LED PAR with built-in WiFLY, five operational modes, and sixteen color-change modes that can be used as lighting effects in clubs, DJ-setups, houses of worship, bands, live stages, and more.The Element QA features six 5W HEX LEDs (red, green, blue, and amber). The built-in WiFLY has an extended range of up to 2500', while XLR 3-pin connectors allow for wired control. The five operational modes include RGBA dimmer mode; sound active mode; auto run mode (16 color-change modes, 16 color-fade modes, & 1 color/fade combo mode); static color mode; and DMX controlled mode.The built-in input and output IEC connectors power the light, charge the battery, and allow for power daisy-chaining. A rechargeable lithium battery is used for the wireless DMX operation (with ADJ's WiFLY transceiver sold separately), allowing for up to 11 hours of use (single color). Additionally, the American DJ Element QA is rated for multi-voltage operation at 100-240V. The power draw is 45W total with all LEDs fully on. -

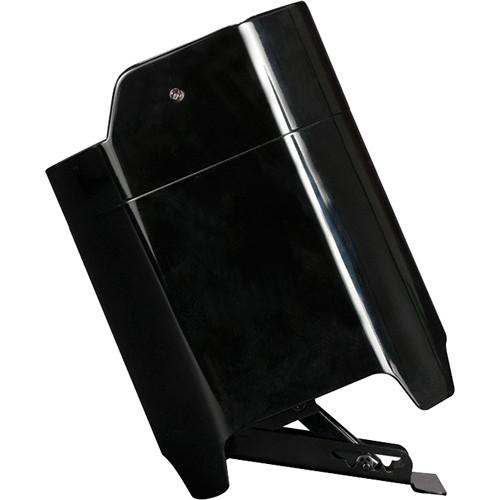

- Built-in kickstand to angle figure while it’s on the floor

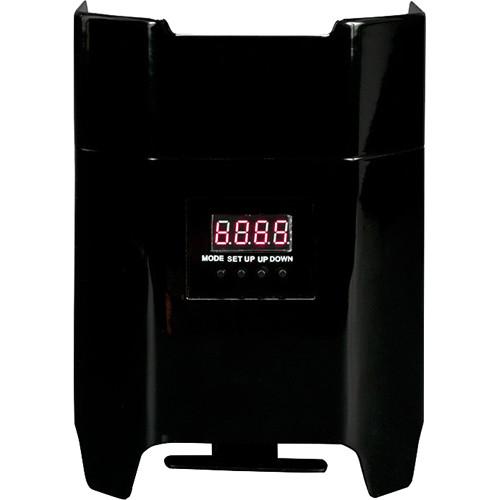

- 4-button DMX menu display on rear panel
- Built-in WiFLY EXR Wireless DMX: Up to 2,500' (760m) when used with ADJ’s WiFLY EXR battery transceiver
- 64 built-in color macros
- Variable RGBA color mixing offers a smooth, seemingly unlimited color palette
- Great for stage or wall washing
- LED pulse and strobe effect (0.2 - 11 Hz)
- Flicker-free operation
- Electronic Dimming: 0 - 100% with 5 dimming curves
- Run all night, no duty cycle
- Energy saving mode
UPC: 818651020489 In the Box American DJ Element QA WiFLY Battery-Powered RGBA LED Washlight IEC Power Cable Limited 2-Year Warranty Limited 180-Day Warranty on Batteries Table of Contents
|
Upload User Manual
Have you got an user manual for the American DJ Element QA WiFLY Battery-Powered RGBA LED Washlight in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersAmerican DJ Element QA Specs | Light Source | 6 x RGBA LEDs, 5 W | | Life Expectancy | 50,000 hours | | Illuminance | 901 lux @ 6.6' / 2 m
213 lux @ 13.1' / 4 m | | Beam Angle | 40° | | Dimming | Electronic | | Dimming Range | 0-100% | | Dimmer Curves | 5 x curves | | Strobe Rate | 0.2 - 11 Hz | | Color Mixing | RGBA | | Built-In Programs | Yes | | Sound Active | Yes | | PWM Frequency | 1000 Hz | | Flicker Free Operation | Yes | | Protocols | DMX, WiFLY EXR DMX | | DMX Connectors | Input: XLR 3-pin
Output: XLR 3-pin | | DMX Channel Modes | 4, 5, 6, 9 or 10 channels | | Wireless Range | WiFLY DMX: Up to 2,500' / 760 m (when used with EXR Battery Transceiver) | | Remote Control | ADJ UC-IR (available separately)
ADJ Airstream IR (available separately) | | Battery Type | Fixed lithium | | Battery Energy | 73.26 Wh | | Battery Voltage | 11.1 V | | Battery Capacity | 6.6 Ah | | Battery Charge Time | 4.5 hours (with power switch on) | | Battery Run Time | 11 hours (single color) | | Battery Cells | 9 x Lithium-Ion cells | | Input Voltage | 100-240 VAC, 50/60 Hz | | Power Connections | Input: IEC
Output: IEC | | Power Consumption | 45 W, 0.5 A @ 120 V / 60 Hz (Full On)
42 W, 0.2 A @ 220 V / 50 Hz (Full On) | | Power Linking | Yes | | Duty Cycle | None | | Display/Controls | LED display with 4-button control | | IP Rating | IP20 | | Certifications | CE | | Dimensions (L x W x H) | 5.5 x 5.5 x 7.5" / 140 x 140 x 190 mm | | Weight | 6.5 lb / 2.9 kg | | | | Package Weight | 6.85 lb | | Box Dimensions (LxWxH) | 10.1 x 10.0 x 9.3" |
