Product description The American DJ Encore Burst 100 IP is an outdoor-rated (IP65) 125W LED blinder/strobe, designed to deliver high-intensity light with flicker-free operation for system installers, lighting designers, and technicians working in stage, television, and film production, and for use in concerts, festivals, and other outdoor applications. The fixture utilizes a single 125W warm-white Cree COB LED to produce a 50° beam angle. The standard color temperature is 2700K, but the unit can replicate a halogen-like dimming profile when utilizing the selectable dim-to-warm effect, yielding a color temperature of 1200K.Control capabilities include DMX modes, selectable dimming curves, and strobe effects. A four-button OLED menu system offers direct access, and 5-pin IP65-rated DMX jacks provide remote control. Multiple fixtures can be daisy-chained using the powerCON TRUE1 IP65 in/out. The Encore Burst 100 IP is constructed with rugged metal housing, features an integrated scissor yoke, and includes a magnetic holder to easily attach a diffusion filter. -
- 125W warm-white COB (chip on board) Cree LED
- Color Temperature: 2700K (1200K dim to warm mode)
- Beam Angle: 50-degree
- Includes magnetic holder to easily attach a diffusion filter

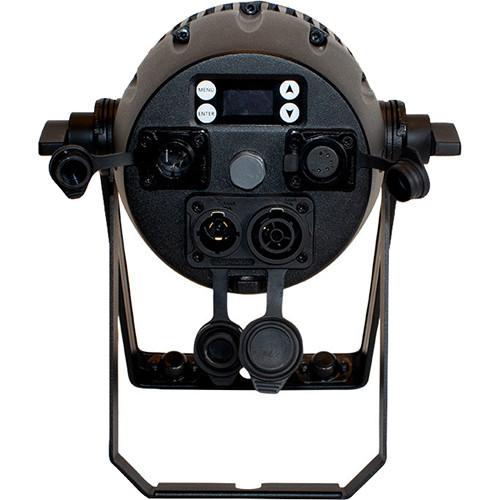

- Display: OLED display with 4-button touch menu
- Data In/Out: 5-pin DMX IP65 (with rubber protective covers over connections)
- Power In/Out: powerCON IP65 (with rubber protective covers over connections)
- All metal construction
- Scissor yoke
- Compact design
- Safety loop on rear
- Protection Rating: IP65 (outdoor protection from dust, sand, moisture & liquid)
In the Box American DJ Encore Burst 100 IP - Outdoor Rated Dim-to-Warm Blinder/Strobe Power Cord Magnetic Holder Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the American DJ Encore Burst 100 IP - Outdoor Rated Dim-to-Warm Blinder Strobe in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersAmerican DJ Encore Burst 100 IP Specs | Lamp | 125 W Warm-White Cree COB (Chip on Board) LEDs | | Beam Angle | 50° | | Color | Warm White | | Color Temperature | 2700K (1200K Dim to Warm Mode) | | DMX Connectors | DMX 5-Pin Input/Output | | Control | Dimming Curves: 5
Flicker Free (1.2 Hz)
Dim to Warm Effect with Amber LED | | Power Connection Type | 1 x powerCON TRUE1 AC Input
1 x powerCON TRUE1 AC Pass-Through | | Power | 100 to 240 VAC, 50/60 Hz | | Dimensions (L x W x H) | Not Specified by Manufacturer | | Weight | Not Specified by Manufacturer |
