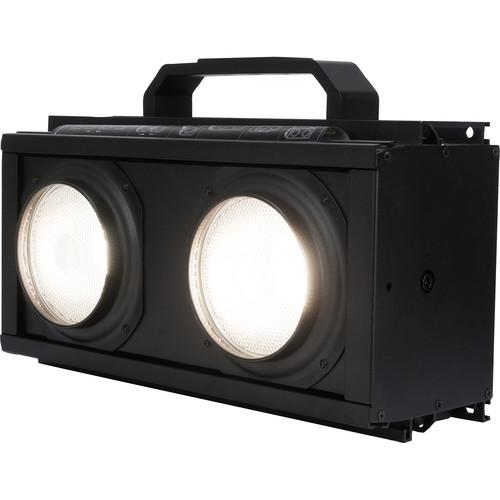

Product description The American DJ Encore Burst 200 is a 2x110W LED blinder/strobe designed to deliver high-intensity light with flicker-free operation for system installers, lighting designers, and technicians, in stage, television, and film production applications. It utilizes two 110W warm white Cree COB LEDs to produce a 50° beam angle, which can be manually tilted via per-lens adjustments. Its standard color temperature is 2700K, while the selectable dim-to-warm effect yields 1200K.Control capabilities include four DMX modes and five selectable dimming curves. A four-button LED menu system offers direct access and DMX 3-pin jacks provide remote control. Multiple fixtures can be clustered via sturdy aluminum extrusion rails. - 2700K color temperature (1200K dim-to-warm mode)
- Four DMX modes—1, 2, 4, and 6
- 0 to 100% dimming of each module
- Manual tilt adjustment available for each lens

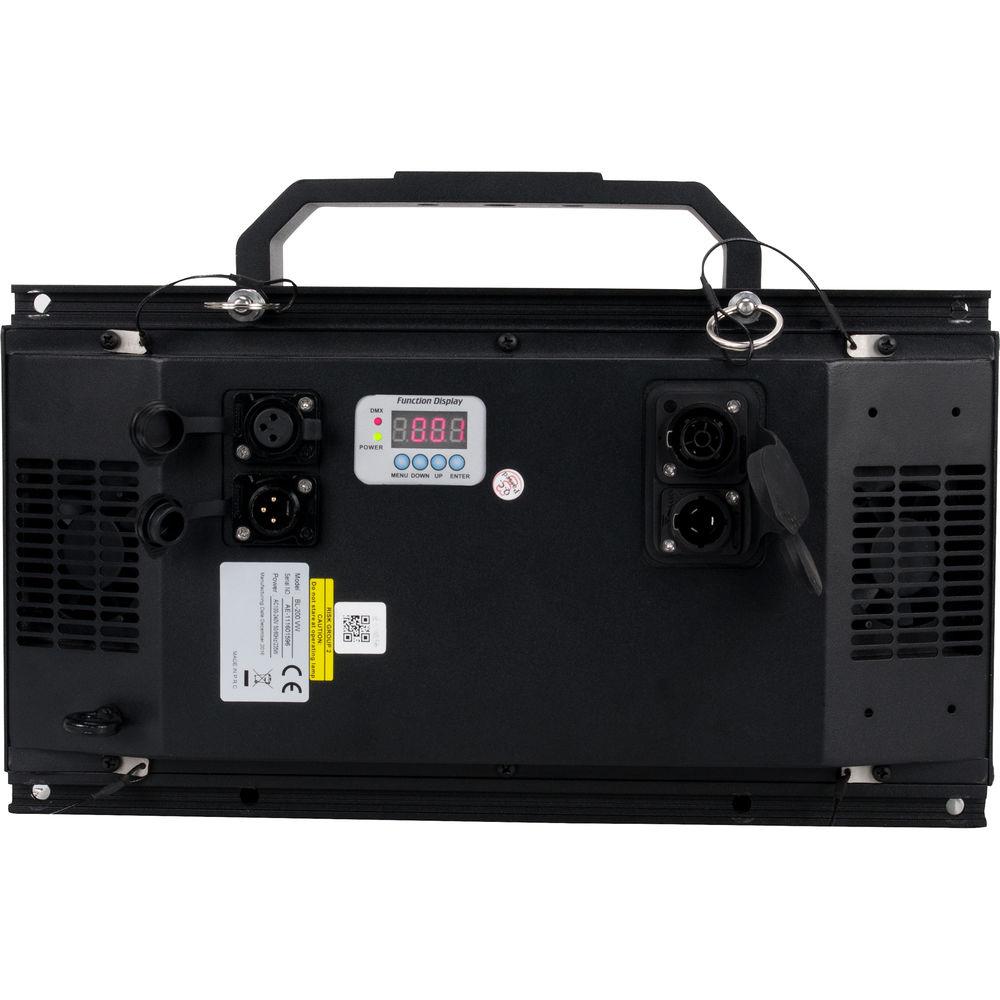

- 4-button LED menu system on rear panel
- Flicker-free operation at 1.2 Hz
- DMX 3-pin input and output
- powerCON TRUE1 input and pass-through
- Auto-sensing internal power supply
- Aluminum extrusion rails allow connection of multiple fixtures in a vertical or horizontal array
UPC: 818651024692 In the Box American DJ Encore Burst 200 2x110W LED Blinder/Strobe Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the American DJ Encore Burst 200 2x110W LED Blinder Strobe in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersAmerican DJ Encore Burst 200 Specs | Lamp | 2 x 110 W warm white Cree COB (chip on board) LEDs | | Lamp Life | 50,000 hours (average) | | Beam Angle | 50° | | Color | Warm white | | Color Temperature | 2700K (1200K dim-to-warm mode) | | DMX Connectors | 1 x DMX 3-pin input
1 x DMX 3-pin output | | DMX Channel Modes | 1, 2, 4, and 6 | | Control | Dimming Curves: 5
Dimming: 0 to 100% of each module
Flicker free (1.2 Hz)
Dim-to-warm effect with amber LED | | Power Connection Type | 1 x powerCON TRUE1 AC input
1 x powerCON TRUE1 AC pass-through | | Power | 100 to 240 VAC, 50/60 Hz
Daisy-Chain Max: 4 fixtures at 120 V, 8 fixtures at 230 V | | Power Consumption | 235 W | | Enclosure Material | Metal housing
Aluminum rails | | Dimensions (L x W x H) | 15.75 x 8.5 x 9" / 400.0 x 215.5 x 200.5 mm | | Weight | 15 lb / 6.8 kg | | | | Package Weight | 17.12 lb | | Box Dimensions (LxWxH) | 20.2 x 12.3 x 11.6" |
