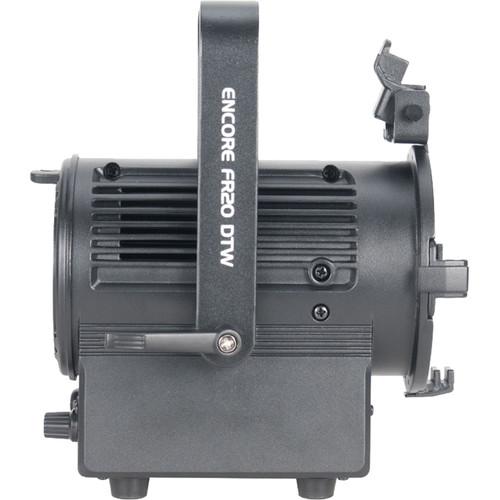

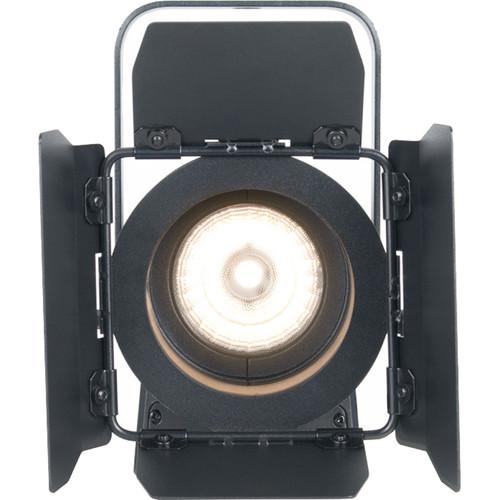

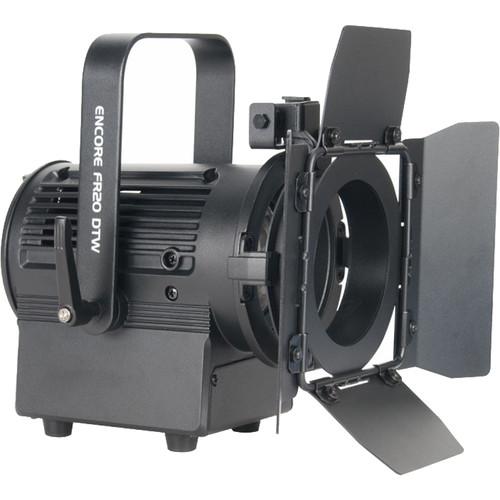

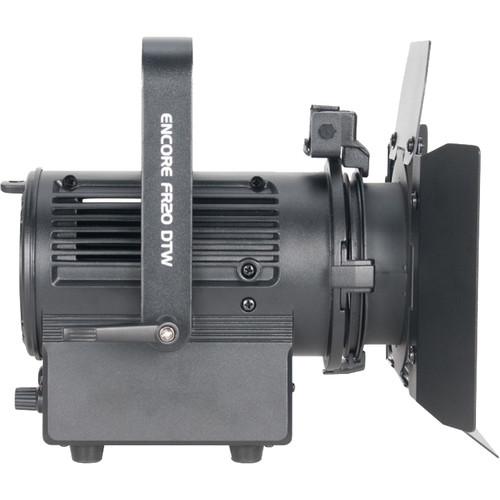

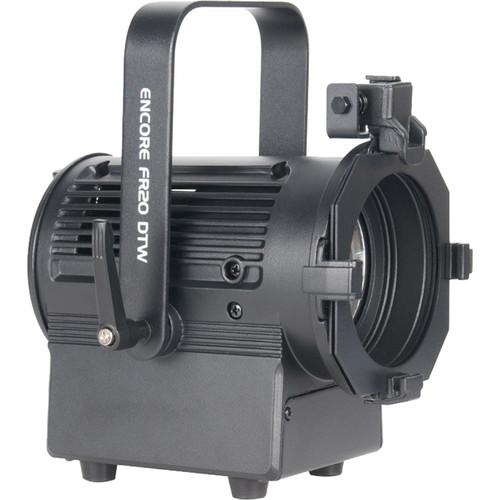

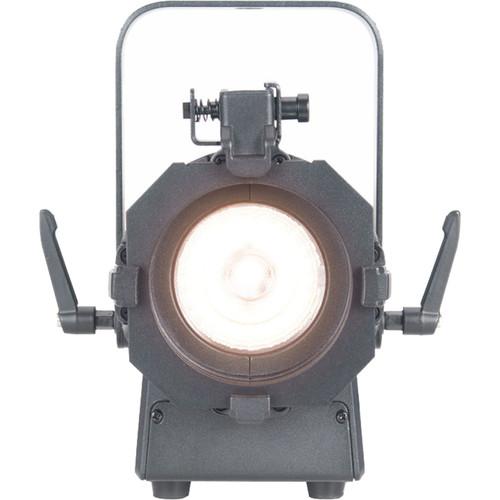

Product description Well suited for stage, theater, and commercial use, the American DJ Encore FR20 DTW is a 17W warm white LED 2" Fresnel fixture offering a soft-edged 3000K beam with a CRI of 92. The instrument features a 19° beam angle, but may be expanded to 45° with the included frost filter. The removable barndoors allow you to further adjust the beam dispersion.

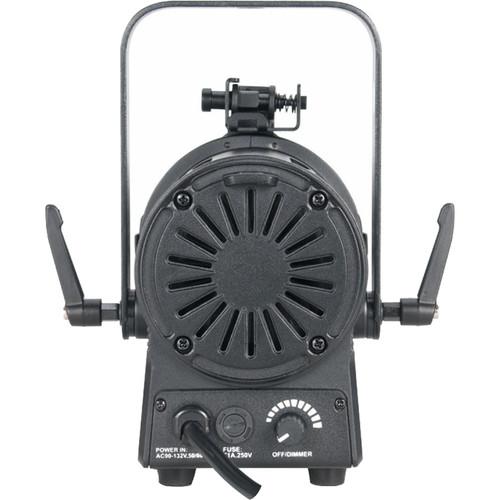

The fixture offers a manual knob to change the dimming from 100 to 0% with a dim-to-warm feature. The FR20 is also Triac dimmable, making it compatible with ADJ dimmer packs or Lutron and Leviton wall dimmers. The American DJ FR20 DTW is equipped for multi-voltage operation and includes a hanging bracket, a safety cable, a gel frame, a frost filter, two retainer rings, a gold snoot, and a metal spacer. -
- 17W warm white LED engine
- 2" Fresnel lens
- Dimming potentiometer: 0-100%
- Dim-to-warm feature
- Triac dimmable, compatible with Lutron and Leviton wall dimmers or ADJ Dimmer Packs (DP-415R, DP-DMX20L, Uni Pak II)
- Color temperature of 3000K
- 19° beam angle, switchable to 45° with the included frost filter
- Includes hanging bracket, removable barndoors, safety cable, gel frame, and additional hardware
UPC: 818651025453 In the Box American DJ Encore FR20 DTW Dimmable Warm White LED Fresnel Hanging Bracket Removable Barndoors Safety Cable Gel Frame Frost Filter 2 x Retainer Ring Gold Snoot Metal Spacer Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the American DJ Encore FR20 DTW Dimmable Warm White LED Fresnel in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersAmerican DJ Encore FR20 DTW Specs | Light Source | 17 W warm white LED engine
LED Life: 50,000 hours | | Lens | 2.0" / 50.8 mm Fresnel | | Color Temperature | 3000K | | CRI | 92 | | Dimmer | Dimming Potentiometer: 0 to 100%
Dim-to-warm feature
Triac dimmable, compatible with Lutron & Leviton wall dimmers or ADJ dimmer packs (DP-415R, DP-DMX20L, Uni Pak II) | | Lux | 600 at 9.8' / 3.0 m | | Beam Angle | 19 or 45° | | Operating Voltage | Multi-Voltage: 100-240 VAC, 50/60 Hz | | Dimensions (L x W x H) | 10.3 x 5.3 x 8.3" / 25.9 x 13.3 x 21.0 cm | | Weight | 5.0 lb / 2.3 kg | | | | Package Weight | 6.56 lb | | Box Dimensions (LxWxH) | 12.75 x 10.4 x 7.85" |
