User Manual for American DJ Encore FR5OZ 50W LED Fresnel Click to enlarge the picture
Contents of the user manual for the American DJ Encore FR5OZ 50W LED
- Product category: Stage & Studio American DJ
- Brand: American DJ
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for American DJ Stage & Studio
 |
User manual for the American DJ Encore FR5OZ 50W LED contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any American DJ product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official American DJ user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a American DJ product will considerably shorten its lifespan!
|

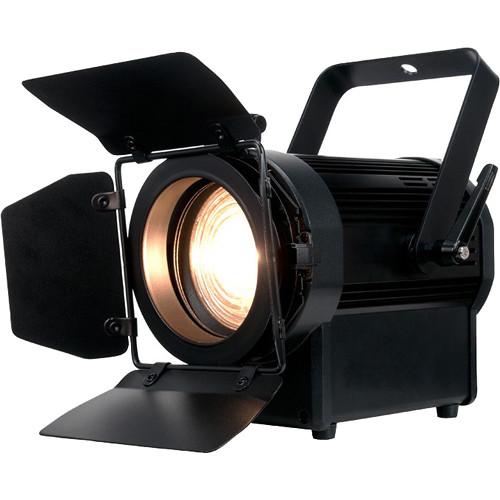

Product description Equally suited to washing stages and highlighting particular performers or elements, the 50W Encore FR5OZ from American DJ is an LED 6" Fresnel fixture offering a soft-edged 3000K warm-white beam with a CRI of 95. The included barn doors allow you to adjust the fixture's light dispersion while the integrated manual zoom enables you to regulate the beam angle between 8 and 50°. The fixture is fitted with a bracket that can be easily secured into place at any desired angle using the built-in side-mounted locking levers.

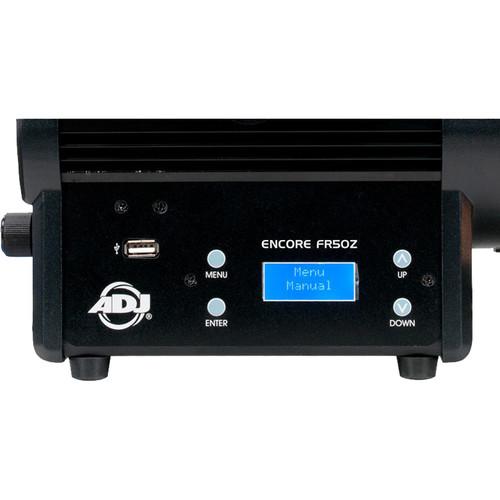

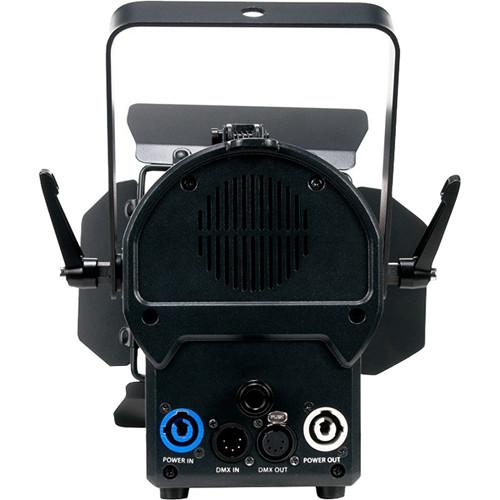

The fixture offers smooth 0-100% digital dimming and is compatible with the standard DMX512 control protocol for easy integration into existing lighting systems. A 16-character backlit LCD display menu located on the side of the unit makes it easy to select a DMX address as well as any of the fixture's operating options. The FR5OZ's connectivity interface includes 5-pin XLR input and output sockets for connection to a DMX controller, as well as powerCON input and output sockets for reducing cable runs by daisy chaining multiple fixtures from a single power supply. The Encore FR5OZ includes a set of barn doors and ships with a powerCON power cord - For use in small to medium sized theaters as well as for touring productions and conference work
- Suitable for venues with limited space, small tours, and one-off events where transportation space is limited
- Long-life LED light source
- Minimal excess heat makes for a cooler stage environment
- Robust extruded aluminum case
UPC: 818651020960 In the Box American DJ Encore FR5OZ 50W LED Fresnel Set of Barn Doors powerCON Power Cord Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the American DJ Encore FR5OZ 50W LED Fresnel in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersAmerican DJ Encore FR50Z Specs | Light Source | 50 W LED engine | | Lens | 6" Fresnel | | Color Temperature | 3000K | | CRI | 95 | | Zoom | 8 to 50°, manual | | Menu Operation | 4-button LCD menu | | Connectors | 5-pin DMX in/out
powerCON in/out, to daisy-chain power | | Dimming | 0-100% | | Material | Case: Extruded aluminum | | Operating Voltage | 100-240 VAC, 50/60 Hz | | Dimensions | 11.5 x 9.5 x 9.5" / 28.8 x 23.7 x 23.7 cm | | Weight | 10 lb / 4.2 kg | | | | Package Weight | 12.3 lb | | Box Dimensions (LxWxH) | 1.0 x 0.11 x 0.1" |
