User Manual for American DJ Encore Profile 1000 Color RGBW LED Ellipsoidal with Manual Zoom and 12-30° Zoom Click to enlarge the picture
Contents of the user manual for the American DJ Encore Profile 1000 Color
- Product category: Stage & Studio American DJ
- Brand: American DJ
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for American DJ Stage & Studio
 |
User manual for the American DJ Encore Profile 1000 Color contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any American DJ product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official American DJ user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a American DJ product will considerably shorten its lifespan!
|

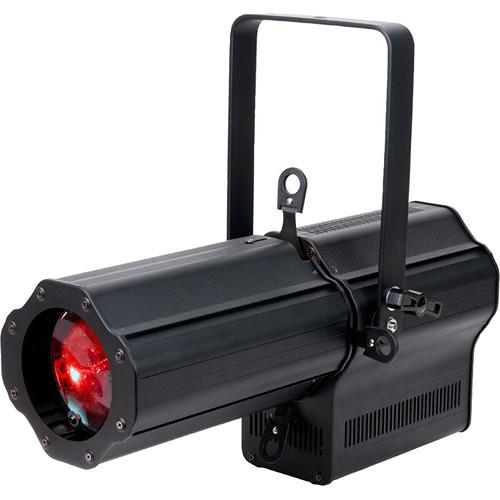

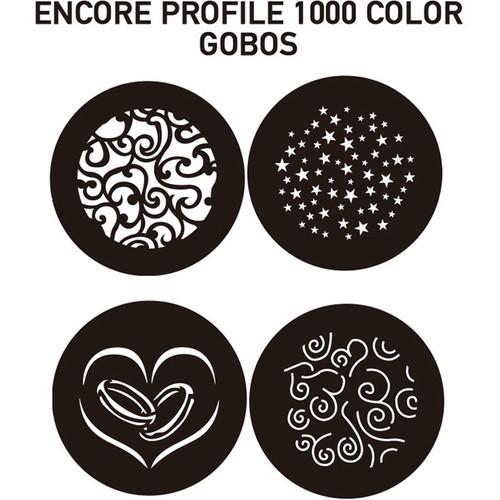

Product description The Encore Profile 1000 Color RGBW LED Ellipsoidal with Manual Zoom and 12-30° Zoom from American DJ, is a variable color output theatrical fixture that features manual zoom and focus control. It features five separate operating modes, five dimming modes, a master/slave function, and uses up to five DMX channels. The light outputs 64 static colors and is equipped with four replaceable GOBOs so you can create a variety of patterns.
The fixture allows you to adjust the beam spread from 12 to 30°. At 12° the fixture throws its beam up to 130', and at 30° beam spread the fixture throws its beam up to 90'. Manual zoom allows you to adjust the beam spread and the manual focus enables focusing your gobo pattern where you need it. As to be expected with a theatrical ellipsoidal built-in, manual framing shutters allow you to neatly cut and control the output. Compatible with optional IR remote controls, so you can control the fixture via DMX or IR. - The included hanging bracket enables mounting the fixture to a grid (pipe clamp not included).
- A built-in Airstream IR receiver allows you to control the fixture via an app and an optional ADJ Airstream IR transmitter (not included).
- The RGBW LED enables yo to create 64 distinct colors including hard-to-reach hues like amber, hot pink, and purple.

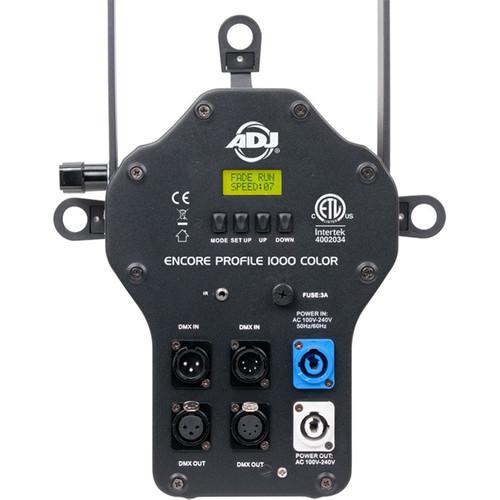

- The fixture incorporates two 3-pin and two 5-pin XLR connectors for DMX in and out, and has five channels of DMX control.
- Five operating modes include:
RGBW Dimmer Mode
Color Change Mode
Color Fade Mode
Auto Run Mode
Static Color Mode - Two PowerCon cable connectors allow you to securely daisy chain the power for this fixture.
In the Box American DJ Encore Profile 1000 Color RGBW LED Ellipsoidal with Manual Zoom and 12-30° Zoom Hanging Bracket 4 x Replaceable Glass Gobos PowerCon Power Cable Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the American DJ Encore Profile 1000 Color RGBW LED Ellipsoidal with Manual Zoom and 12-30° Zoom in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersAmerican DJ Encore Profile 1000 Specs | DMX Connectors | Input
1 x 3-pin XLR (male)
1 x 5-pin XLR (male)
Output
1 x 3-pin XLR (female)
1 x 5-pin XLR (female) | | Power | Voltage: 100 to 240 VAC, 50/60 Hz (auto sensing)
Consumption: 144 W
Loop-Through Power:
Input: 1 x PowerCon
Output: 1 x PowerCon | | Dimensions | 22 x 9.75 x 15.25" / 560 x 250 x 385 mm | | Weight | 19 lbs / 8.5 kg | | | | Package Weight | 26.76 lb | | Box Dimensions (LxWxH) | 25.6 x 17.0 x 15.5" |
Rating80% users recommend this product to others. And what about you?
This product has already been rated by 37 owners. Add your rating and experience with the product.
