User Manual for American DJ Entour Faze 450W Fog Machine Click to enlarge the picture
Contents of the user manual for the American DJ Entour Faze 450W Fog
- Product category: Fog & Haze Machines American DJ
- Brand: American DJ
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for American DJ Fog & Haze Machines
 |
User manual for the American DJ Entour Faze 450W Fog contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any American DJ product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official American DJ user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a American DJ product will considerably shorten its lifespan!
|
Product description - Facebook Live: Entour Faze Demo
- ADJ "First Look" - Entour Faze from Prolight + Sound 2018
- ADJ Entour Faze
- NEW ADJ Entour Faze - Walk Thru & Demo

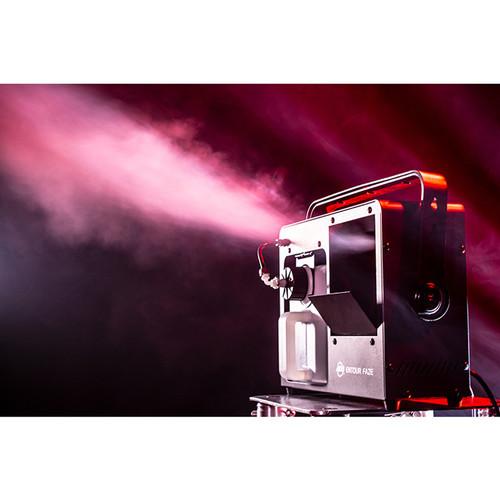

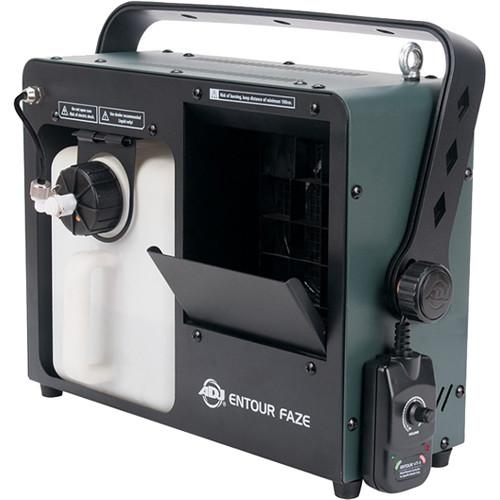

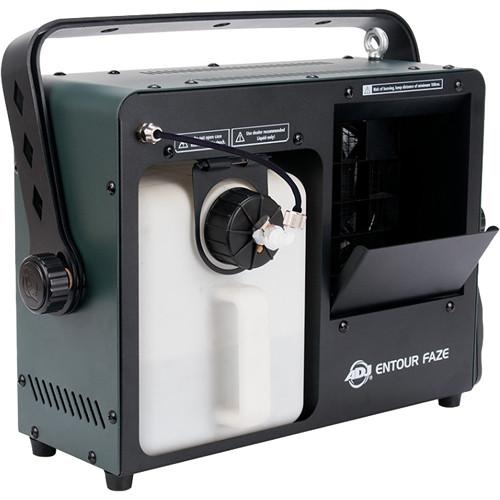

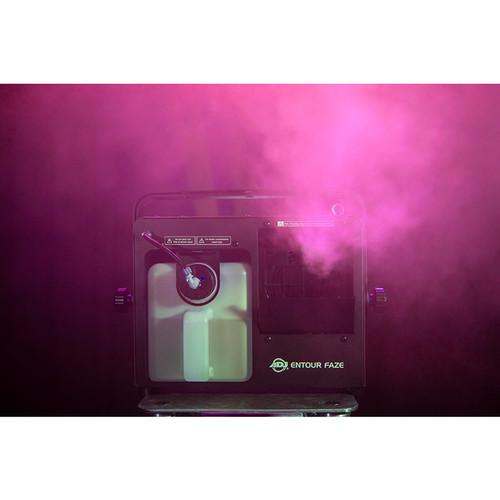

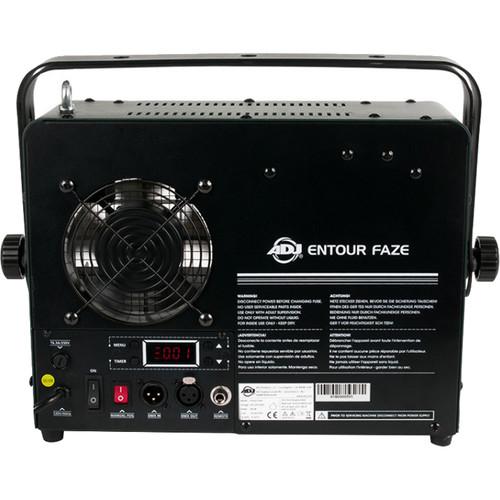

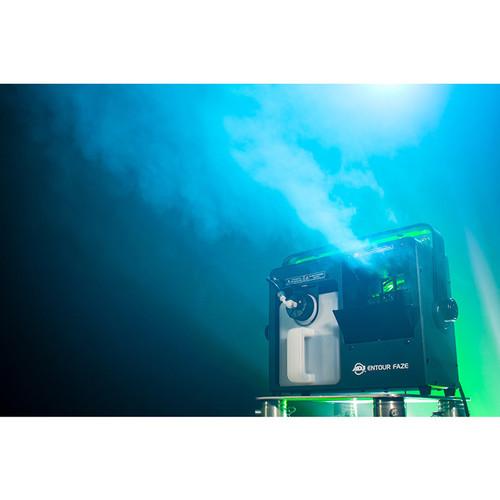

The American DJ Entour Faze is a water-based fog machine that creates 1000 ft³/minute of haze for misty atmospheres designed to enhance patterns from your light show in theaters, clubs, houses of worship, and more.Offered as an alternative to oil-based fog machines, it features a 450W heating element that continually reheats to ensure a stable temperature. The result is an even mist right out of the machine rather than big bursts of cloudy fog that could obscure your lights.Other features include an LED heating-status indicator, an automatic circuit cutoff to protect the pump if the fog fluid tank runs dry, and a convenient carrying handle. Operate the Entour Faze using the built-in manual controls or via the included Entour VT-1 wired remote, which has a 25' cable with a 1/4" connector. The Entour Faze also supports DMX control with its three DMX channel modes (1, 2, and 4) and XLR 3-pin I/O. A dual hanging bracket system is supplied to allow for precise positioning. - Water-based fog machine offered as an alternative to oil-based machines
- Outputs 1000 ft³/minute of thin haze
- Rapid heater technology enables a short heat-up time of 40 seconds
- Automatic circuit cutoff to protect pump if fog fluid tank runs dry
- LED heating indicator system—red (heating), green (ready to use)
- 0.8-gallon external fog fluid tank
- F4L ECO water-based fog fluid recommended by American DJ
- Convenient carrying handle and safety eye loop

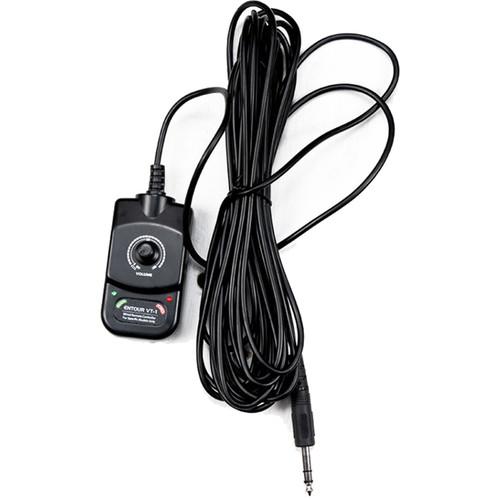

- Includes Entour VT-1 wired remote with output volume control, red and green status indicators, and a 25' cable

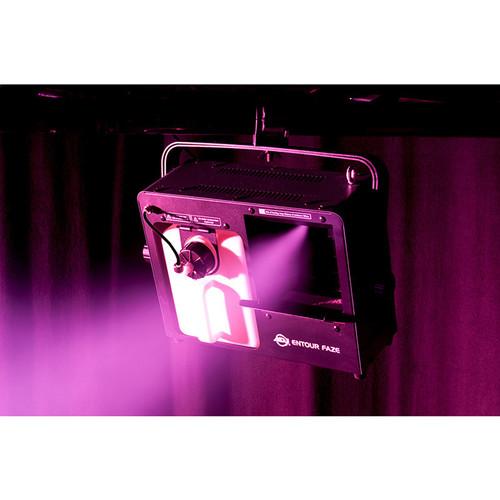

- Includes dual hanging bracket system that allows machine to be angled in an optimum position
UPC: 818651025149 In the Box American DJ Entour Faze 450W Fog Machine Entour VT-1 Wired Remote Control Dual Hanging Bracket System Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the American DJ Entour Faze 450W Fog Machine in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersAmerican DJ Entour Faze Specs | Fog Output | 1000 ft³ / 28.3 m³ per minute | | Tank Capacity | 0.8 gal / 3 L | | Warm-Up Time | 40 seconds | | Compatible Fluid | Water-based fog fluid | | Fluid Consumption | 10 mL/minute | | Heater | 450 W | | DMX Connectors | Input: XLR 3-pin male
Output: XLR 3-pin female | | DMX Channel Modes | 1, 2, and 4 | | Power Requirements | 120 VAC, 60 Hz | | Power Consumption | 465 W | | Dimensions (L x W x H) | 16.3 x 8.0 x 11.9" / 41.4 x 20.2 x 30.3 cm | | Weight | 10 lb / 4.5 kg | | | | Package Weight | 17.33 lb | | Box Dimensions (LxWxH) | 18.5 x 12.7 x 8.8" |
