User Manual for American DJ Event Bar Pro 40W White LED Light Fixture Click to enlarge the picture
Contents of the user manual for the American DJ Event Bar Pro 40W
- Product category: DJ & Effect Lights American DJ
- Brand: American DJ
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for American DJ DJ & Effect Lights
 |
User manual for the American DJ Event Bar Pro 40W contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any American DJ product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official American DJ user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a American DJ product will considerably shorten its lifespan!
|

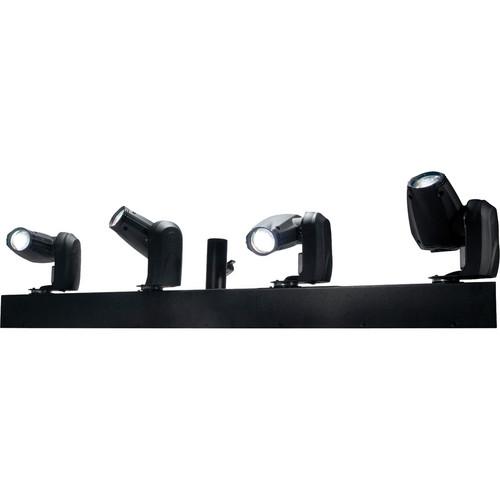

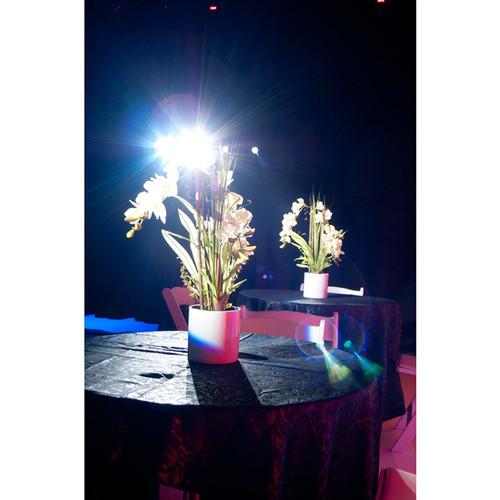

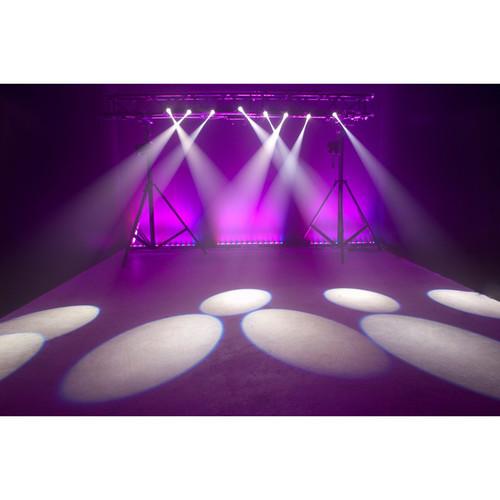

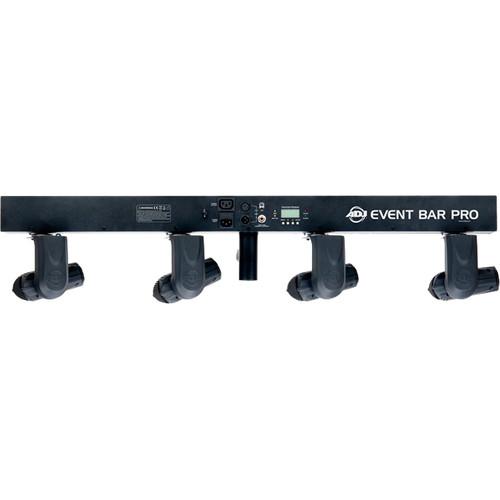

Product description The Event Bar Pro 40W White LED Light Fixture from American DJ is a 4-head pinspot fixture powered by 4 x 10W white LEDs that produce small 5° beams from built-in programs. The Event Bar Pro outputs powerful, sharp white beams of light. Users may also individually program each head's movements with a DMX controller (sold separately).The Event Bar Pro can be used to spot tables, décor and retail environments, or used as a special effect light at night clubs or other parties. The Event Bar Pro’s base has built-in DMX in/out, IEC power in/out connectors, 4-button DMX digital display, built-in microphone for sound activation, and 1/4” input for the UC3 controller (sold separately). There is also a built-in mount to hang the Event Bar Pro on a tripod stand (sold separately). - 4-head X-Y Bar pinspot system with 4 x 10W white LEDs
- Each pinspot's colors and movements may be individually controlled via DMX controller (sold separately)
- 2, 17, 20, 22 or 25 DMX channel modes
- Show mode, sound active, and DMX controlled operational modes
- 4-button DMX digital display
- 5 selectable dim curves (standard, stage, TV, architectural, and theater)
- Full dimming/strobing on each pinspot head
- Linkable DMX via 3-pin XLR cable; Power via IEC daisy-chain power link (up to 5 Event Bar Pro's at 120V, up to 8 Event Bar Pro's at 230V)
- Compatible with American DJ UC3 Series easy-to-use controllers (sold separately)
- LEDs rated at approximately 50,000 hours
- Omega bracket included so the bar may be attached to a clamp for truss mounting
- Built-in mount for a lighting stand (sold separately)
In the Box American DJ Event Bar Pro 40W White LED Light Fixture Omega Bracket Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the American DJ Event Bar Pro 40W White LED Light Fixture in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersAmerican DJ Event Bar Pro Specs | Voltage | 100 to 240 VAC, 50/60 Hz | | LEDs | 4 x 10 W White LEDs | | Beam Angle | 5° | | Power Consumption | 85 W | | Fuse | 7 A | | Daisy Chain | 5 fixtures maximum (120 V), 8 fixtures maximum (230 V) | | DMX | 5 DMX channel modes: 2, 17, 20, 22, 25-channel mode | | Positions | Any safe, secure position | | Dimming | 0 to 100% | | Dimensions (L x W x H) | 40.75 x 3.25 x 10.75" (1035.05 x 82.55 x 273.05 mm) | | Weight | 29.0 lb (13.1 kg) | | | | Package Weight | 32.0 lb | | Box Dimensions (LxWxH) | 45.0 x 15.0 x 8.0" |
