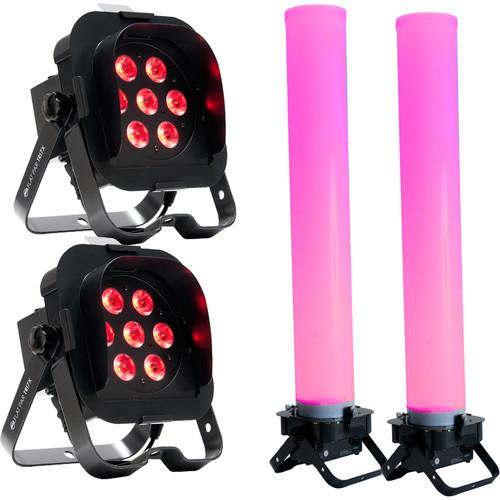

Product description The Flat Par Magna Pak from American DJ includes two Flat PAR TRI7XS LED fixtures and two Magna Tubes. The Flat PAR fixtures each have seven 3W tri-color LEDs and a snoot to help limit unwanted light exposure. The Magna Tube is a 3' acrylic cylinder designed to create an alternative look for uplighting. Magnets on the Magna Tube attach to the Flat PAR's metal frame for easy mounting. - Flat PAR TRI7XS The Flat PAR TRI7XS from American DJ is a professional LED PAR can with bright output. The included snoot helps limit unwanted light exposure.

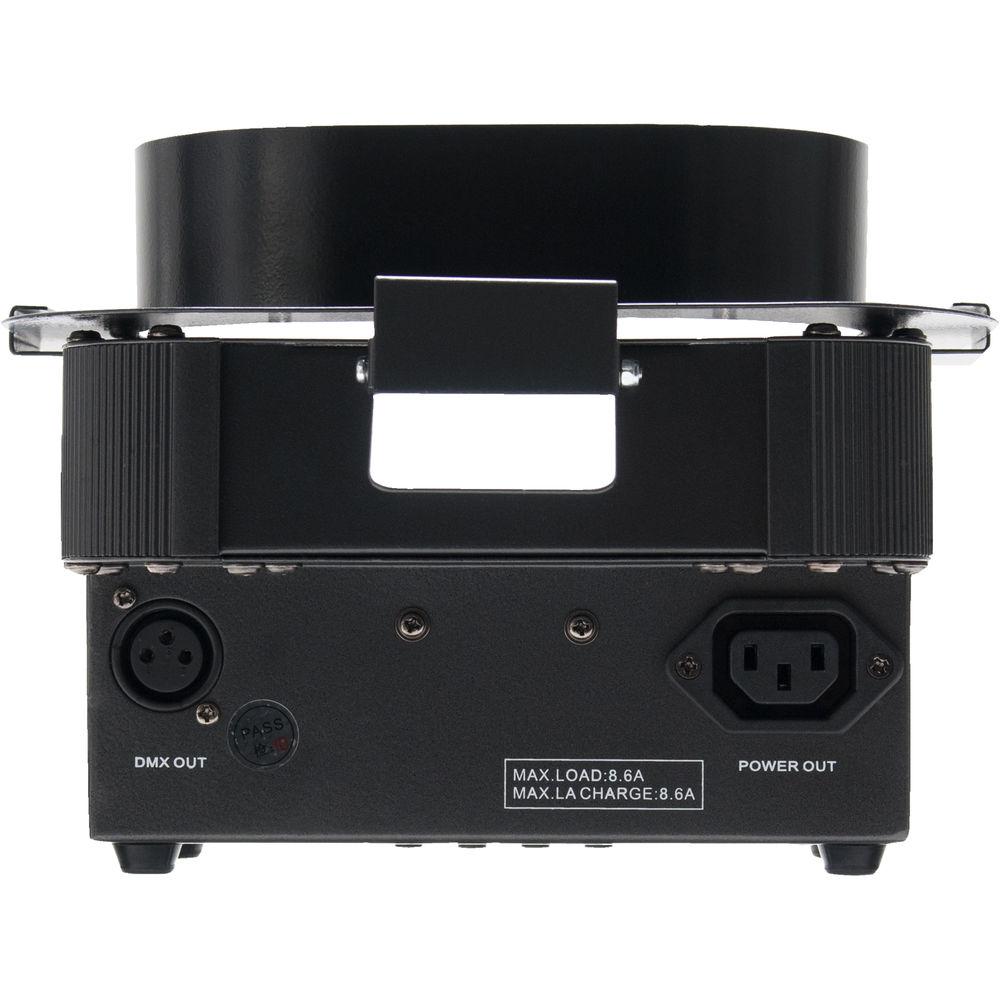

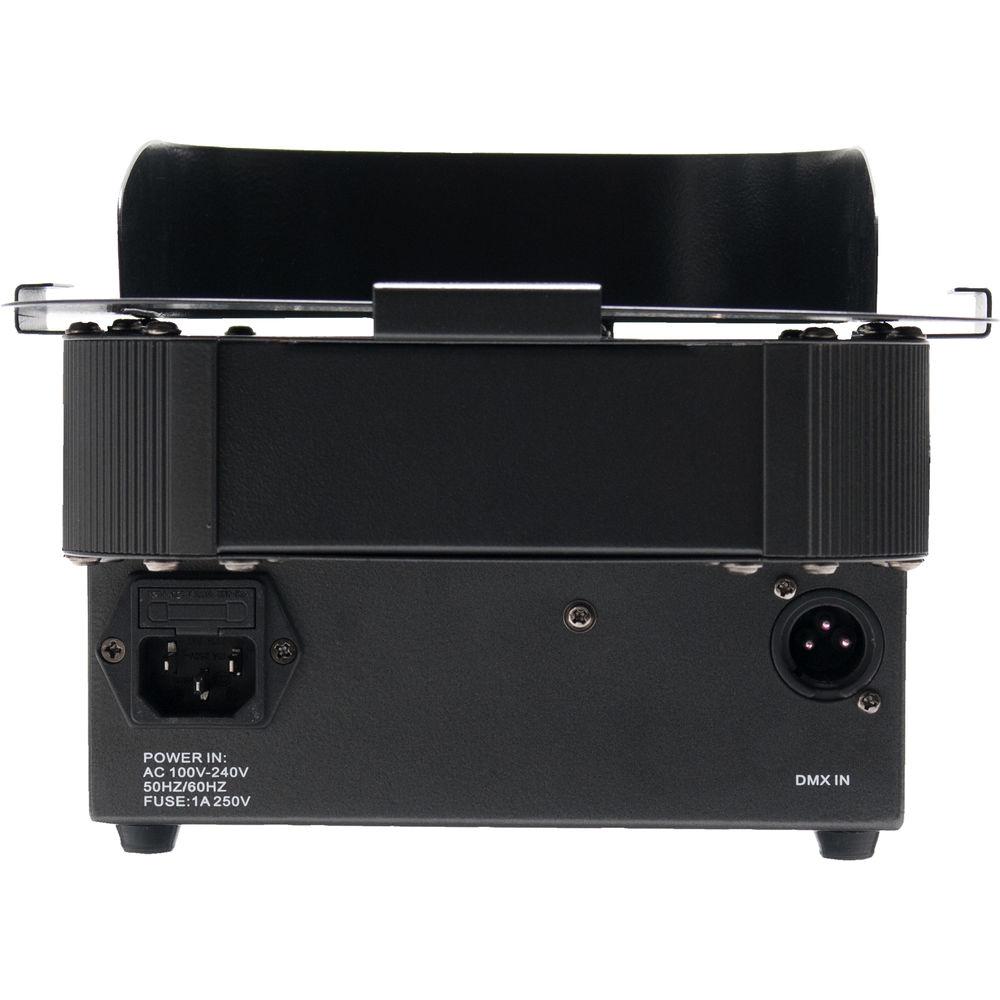

It has seven different DMX channel modes, and may also run in Sound Active or Master/Slave modes. This LED fixture also features fifteen color macros, electronic dimming (0-100%), an IEC AC input and output on the rear to daisy chain power and a 25-degree beam angle. - Slim PAR can with seven 3W tri LEDs
- "Sit-flat" design allows the unit to be set flat on the ground or set inside a truss
- Thirty-two built-in color macros
- Safety hook on rear panel
- Linkable via 3-pin XLR cable

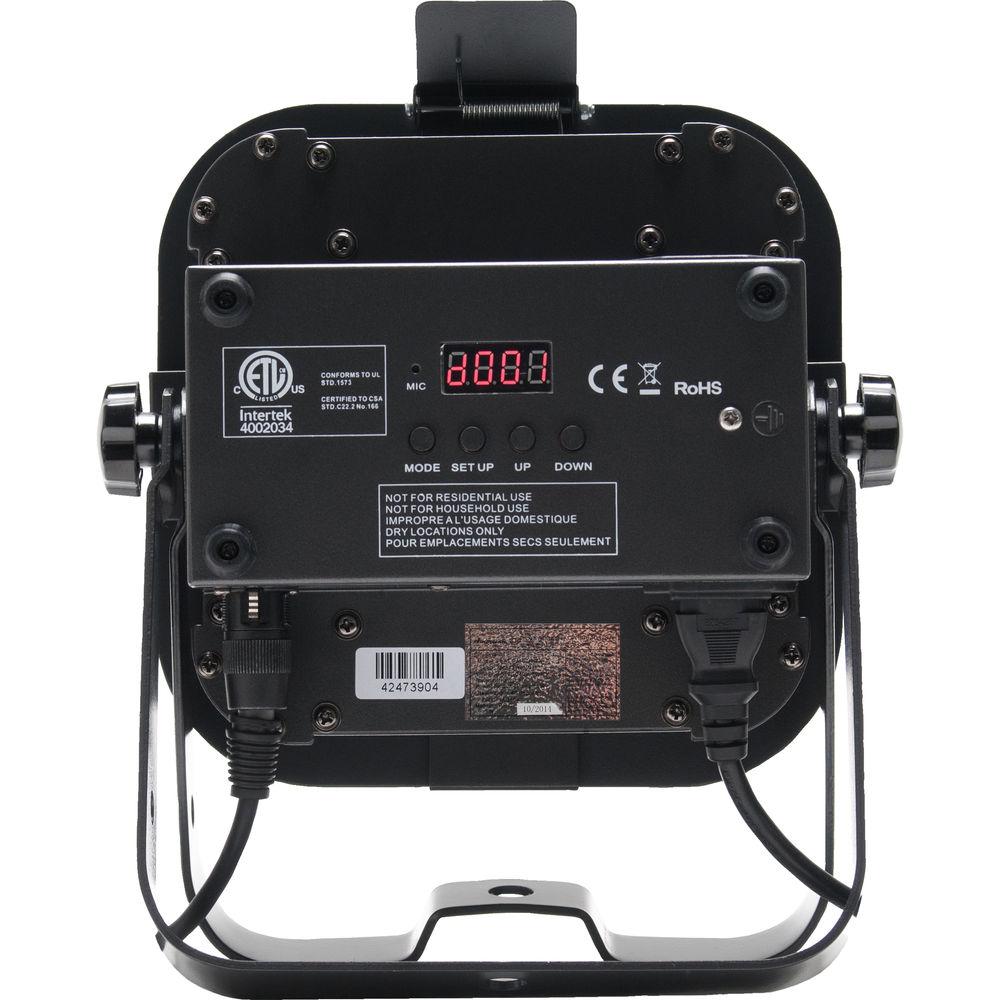

- Four-button LED DMX display on rear panel
- Dual bracket yoke allows fixture to be hung or set on the ground

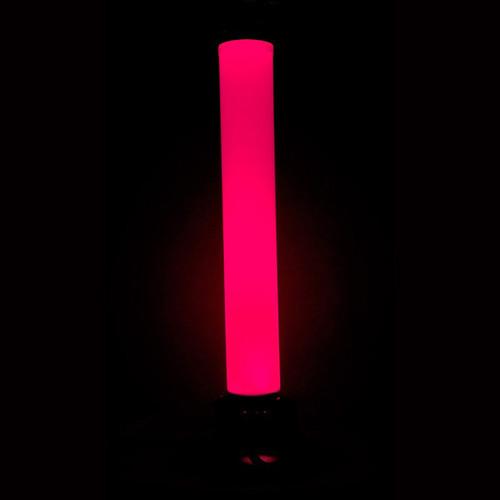

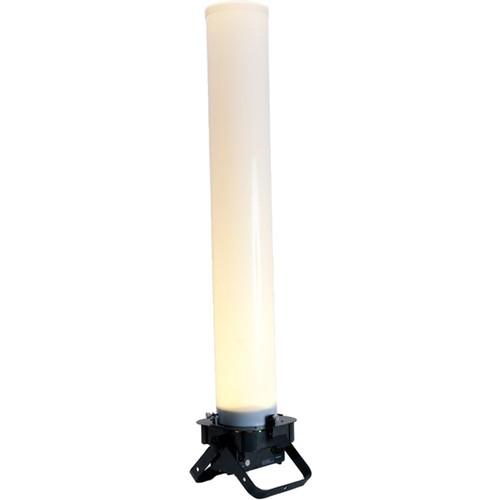

UPC: 819730015273 - Magna Tube for Flat LED Pars The Magna Tube for Flat LED Pars from ADJ is an accessory to create an alternative look to uplighting. It can be used, when paired with an ADJ LED Par (sold separately), in various environments to create a visual dimension in light for stage, mobile production, nightclub, and house of worship type applications. Additionally, the Magna Tube's diameter is 6" with a height of 39.5". It includes a magnetic metal frame adapter and a silicon rubber cover.Note: Do not use with halogen Par Cans.
- Accessory for ADJ flat LED Pars & WiFLY LED Pars
- Includes 3' acrylic tube, magnetic metal frame adapter, and silicon rubber cover
- Suitable alternative look to uplighting
- Compatible with the following ADJ Pars:
- Flat Par TRI7X
- Flat Par TRI7XS
- Flat Par QWH5X
- Flat Par QWH5XS
- Flat Par QA5X
- Flat Par QA5XS
- Flat Par TW5
- WiFly EXR HEX Par
- WiFly Par QA5
- WiFly Par QA5 WH
- WiFly EXR Hex Par
UPC: 819730017956 In the Box Bundle Items 2 x Flat PAR TRI7XS ydxybuaayuffaa 2 x Magna Tube for Flat LED Pars ydxybuaayuffaa - Magnetic Metal Frame Adapter
Table of Contents
|
Upload User Manual
Have you got an user manual for the American DJ Flat Par Magna Pak in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - Flat PAR TRI7XS
| LED Life | 50,000 hours | | Beam Angle | 25° | | Modes | 6 operational modes: Manual Color, Color Change, Color Fade, Auto (Program Run), Sound Active, and DMX-512 | | Macros | 32 built-in color macros | | Effects | Strobe effect | | DMX | 7 DMX channel modes: 1, 2, 3, 4, 5, 6, 7 | | Electronic Dimming | 0 - 100% | | Inputs and Outputs | DMX 3-pin XLR, IEC AC | | Approvals | ETL listed | | Maximum Power Draw | 25 W | | Power Requirements | 90-240 VAC, 50-60 Hz | | Dimensions | 10.75 x 9 x 4.5" (27.2 x 23 x 11.5 cm) | | Weight | 7 lb (3.2 kg) | | | | Box Dimensions (LxWxH) | 12.0 x 10.5 x 8.5" | - Magna Tube for Flat LED Pars
| Tube Diameter | 6" (150 mm) | | Tube Length | 39.75" (1000 mm) | | Compatible Device Type | Compatible with the following ADJ Pars: Flat Par TRI7X, Flat Par TRI7XS, Flat Par QWH5X, Flat Par QWH5XS, Flat Par QA5X, Flat Par QA5XS, Flat Par TW5, WiFly EXR HEX Par, WiFly Par QA5, WiFly Par QA5 WH, and WiFly EXR Hex Par | | Dimensions (L x W x H) | 8.25 x 8.25 x 39.75" (208 x 208 x 1008 mm) | | Weight | 3.6 lb (1.64 kg) | | | | Box Dimensions (LxWxH) | 41.8 x 9.8 x 8.2" |
