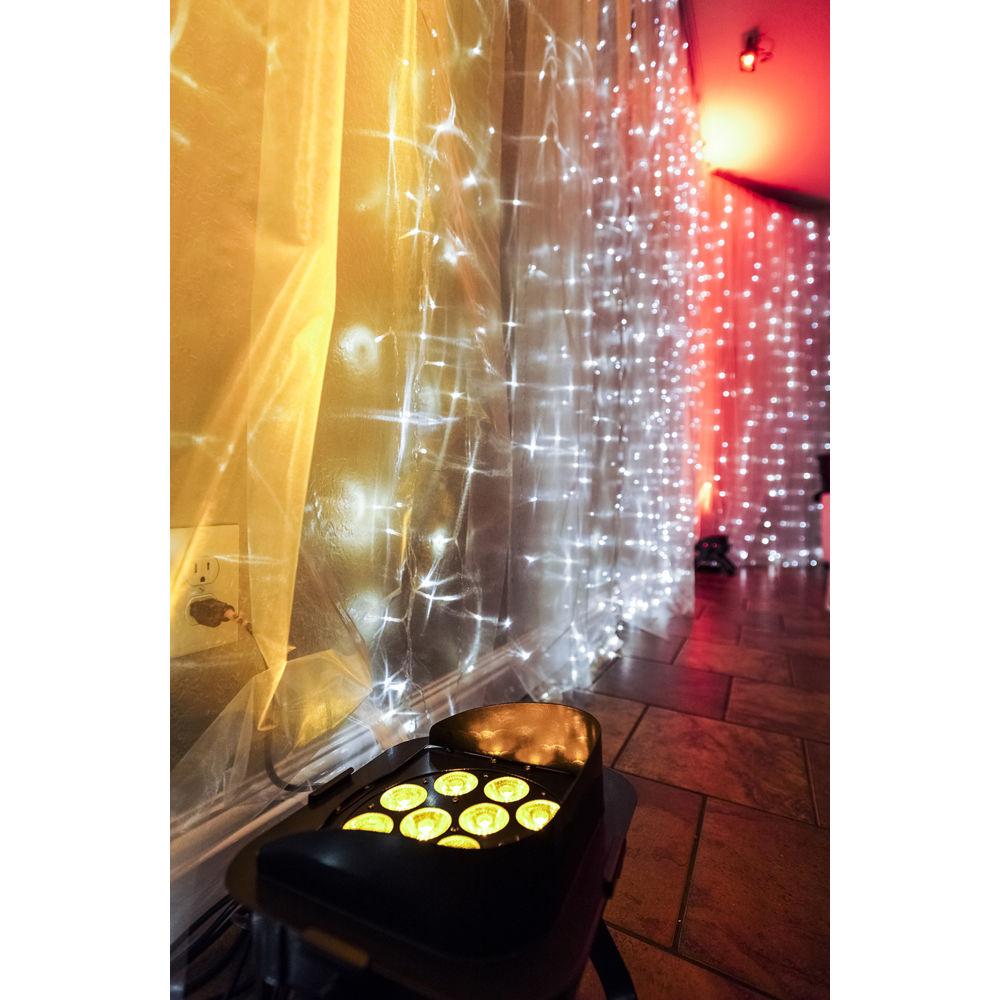

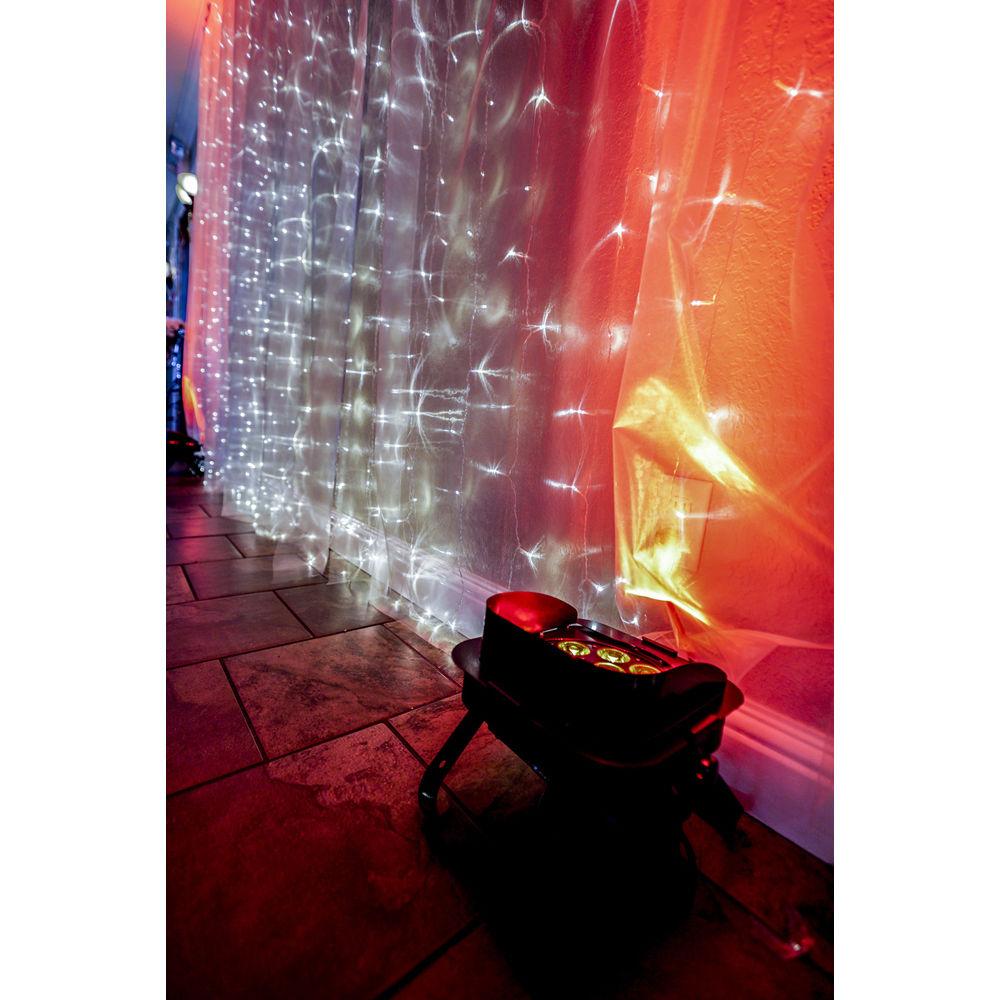

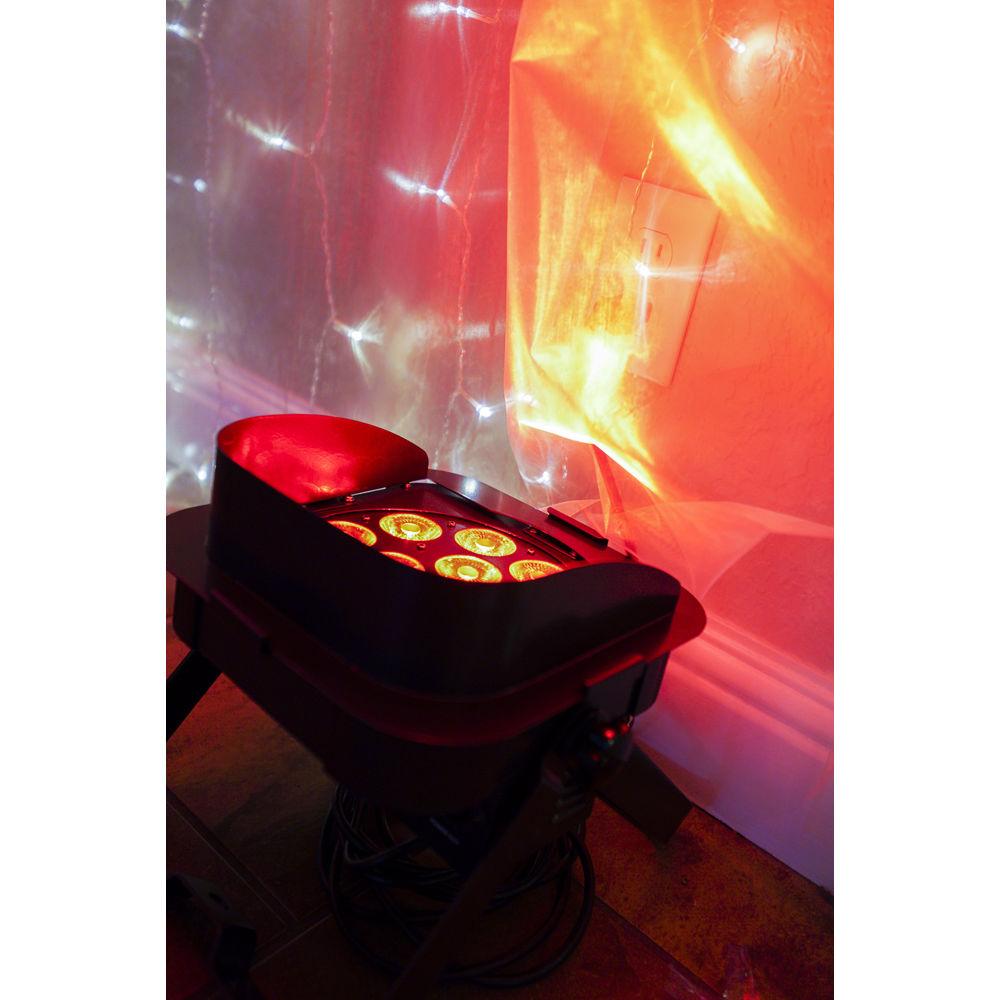

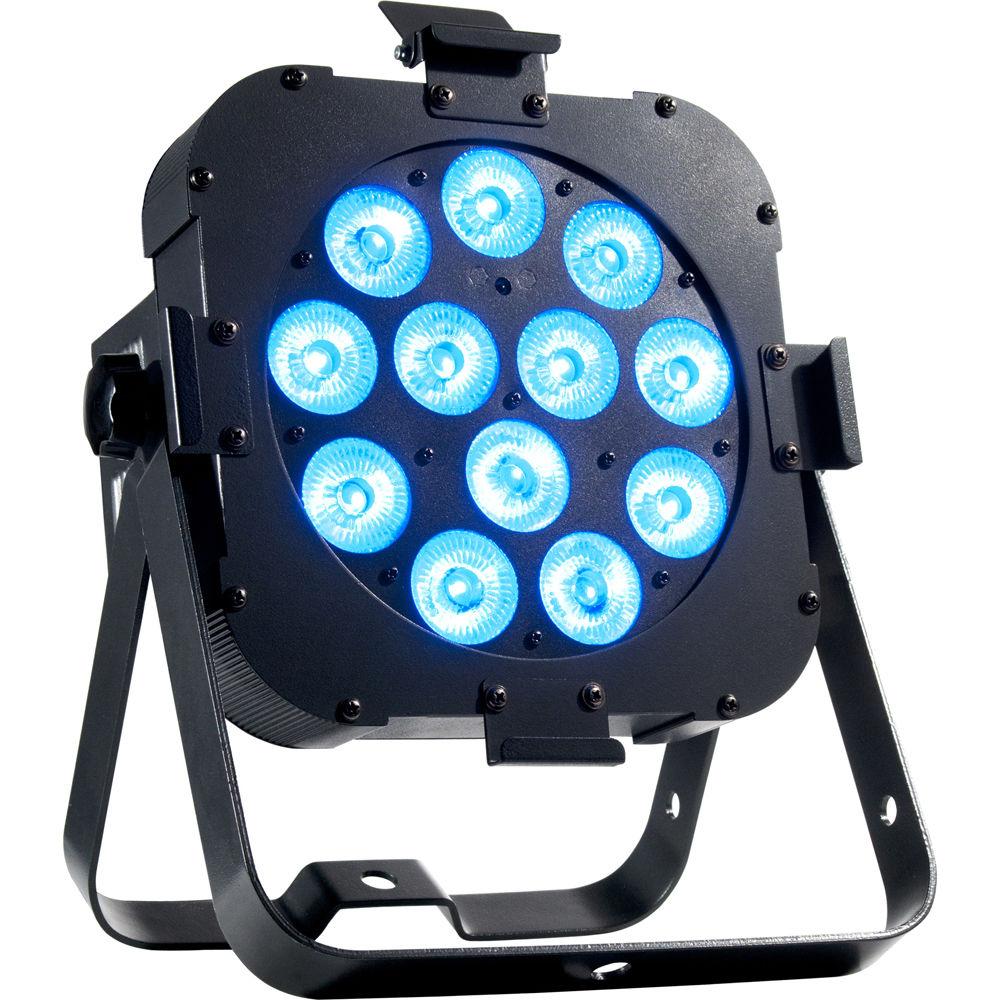

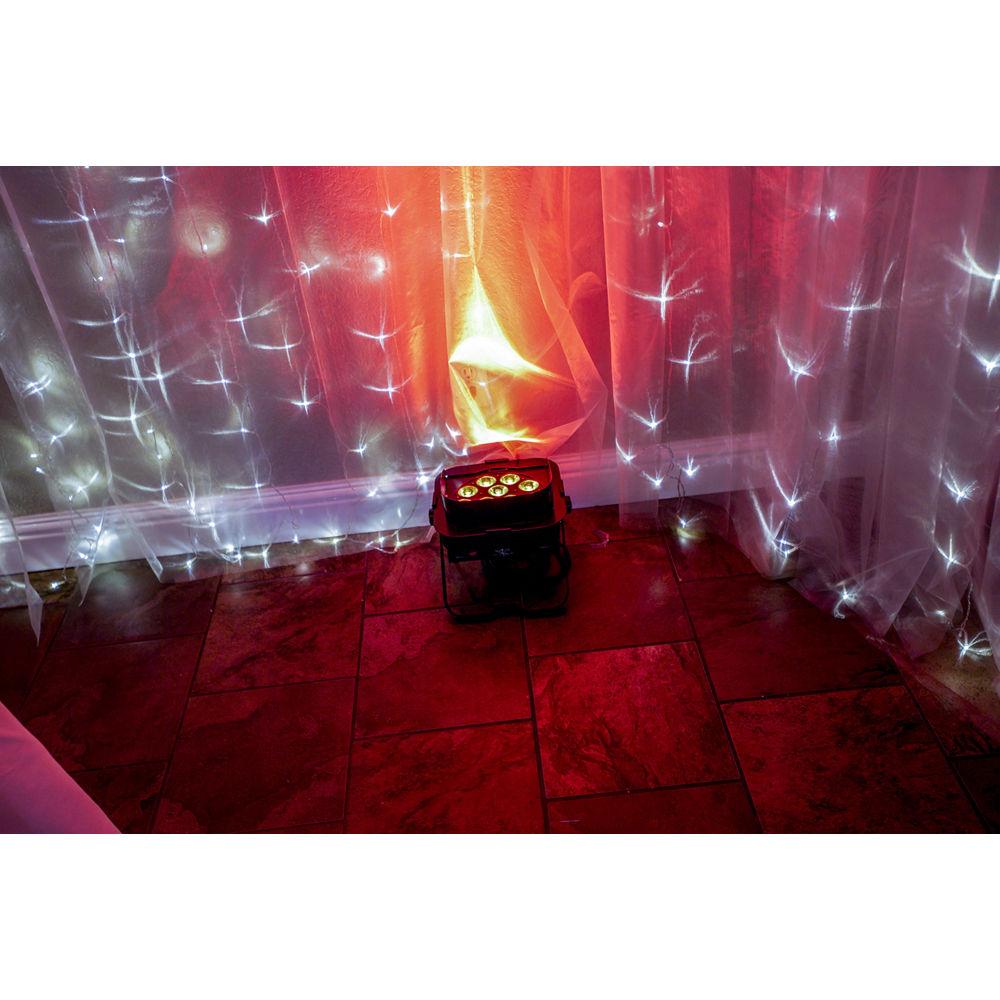

Product description The Flat Par QA12XS from American DJ is a high-powered RGBA (red, green, blue, amber) LED PAR fixture designed to produce color washes with bright and smooth color mixing, without RGB shadows. With twelve 5W (4-in-1) Quad LEDs, a 25° beam angle, and a true amber LED to get the hard-to-achieve orange and amber hues, it is well suited for venue lighting, dance floor color washing, and for providing heat-free illumination of stage performers. The unit comes with a snoot frame to help limit unwanted light exposure and a gel frame to hold optional filters (available separately) used to diffuse the beam angle. Featuring a sit-flat, slim profile with convenient side-positioning of power and DMX in/out sockets, the fixture can sit directly on the ground or inside a truss for up-lighting effects, ideal for use in applications where space is limited. Easy to use, the Flat Par QA12XS gives you plenty of creative options. It offers automated programs such as Sound-Active, Auto-Run, Color Macro & Color Strobe for fast setup, and DMX mode for in-depth control. The master/slave option lets you coordinate multiple fixtures without the need for a controller. Other features include flicker-free operation (ideal when used for video applications), 15 built-in color macros, and an auto-sensing power supply. You can also daisy-chain power for up to 7 units. The fixture comes equipped with a scissor yoke which can be used for conventional mounting to a truss or lighting stand, as well as to create a variable-angle floor stand. It can be wirelessly controlled with the ADJ LED RC2 remote (available separately). - Ultra-bright slim PAR with 12 x 5W RGBA Quad (4-in-1) LEDs
- With a true amber LED to get the hard-to-achieve orange and amber hues

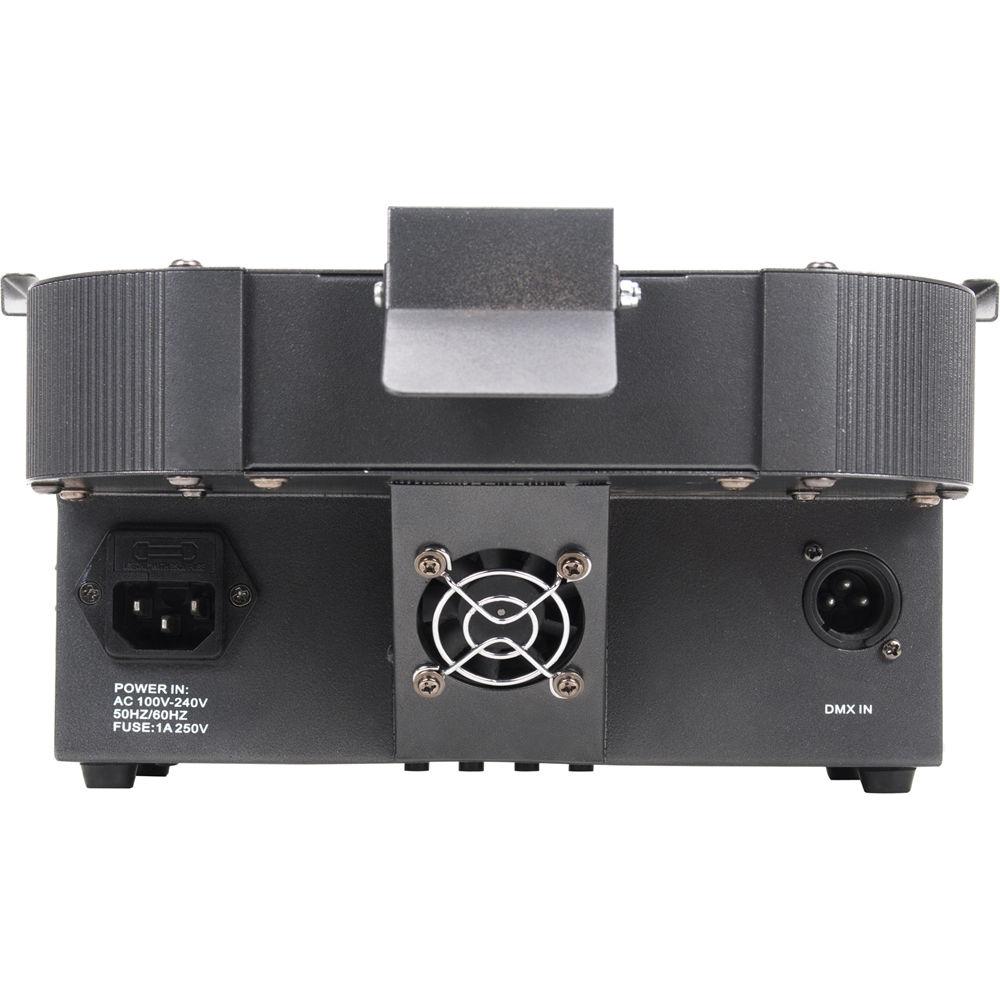

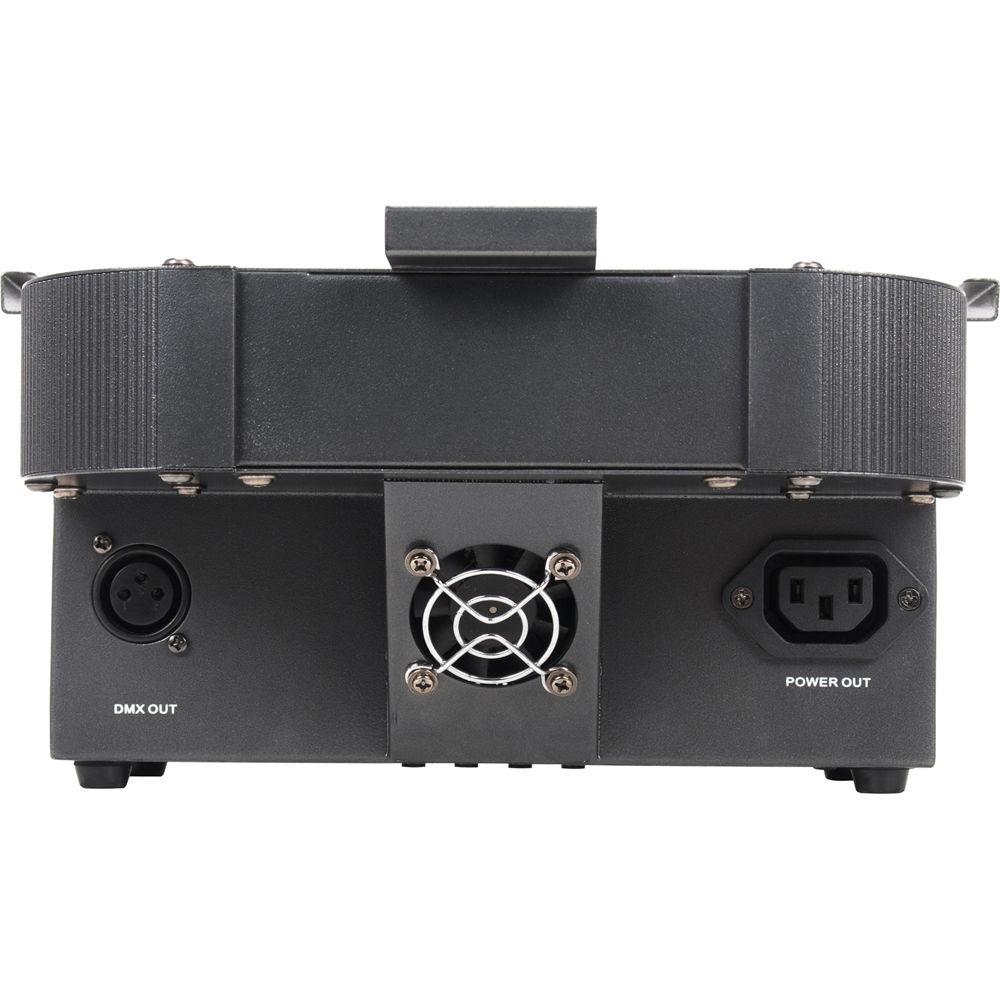

- Sit-flat design with DMX and IEC AC in/out connectors on the side, for positioning fixture flat on the ground or recessed inside a truss
- Smooth RGBA color mixing with fast or slow color-change operation

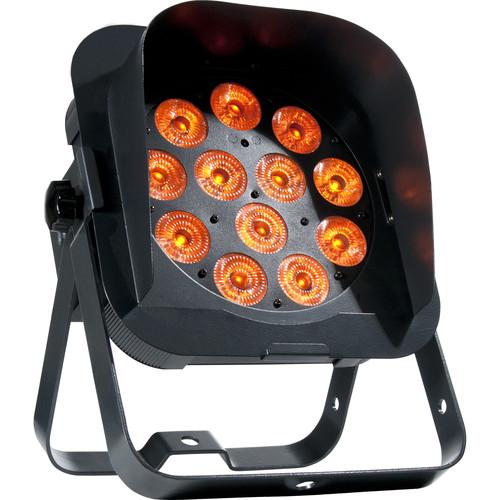

- Snoot frame included – helps limit unwanted light exposure
- Gel frame included – diffuse beam angle with optional filters (available separately)
- Flicker-free light for use with video applications
- 8 x DMX channel modes: 1, 2, 3, 4, 5, 6, 7, or 8 channels
- Six operational modes: Manual Color, Color Change, Color Fade, Auto (Program Run), Sound Active, and DMX-512
- Fifteen built-in color macros
- Daisy-chain power for up to 7 units
- No duty cycle – run all night
- Dual-bracket yoke to hang fixture on truss, mount on a wall or set on the ground
- Multi-voltage operation: 100-240 VAC, 50/60 Hz, auto-sensing
- Compatible with ADJ LED RC2 wireless remote (available separately)
UPC: 819730014511 In the Box American DJ Flat Par QA12XS - RGBA LED Wash Light with Snoot Snoot Frame Gel Frame IEC Power Cable (6') Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the American DJ Flat Par QA12XS - RGBA LED Wash Light with Snoot in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersAmerican DJ Flat Par QA12XS Specs | Light Source | 12 x RGBA (4-in-1) quad LEDs (red, green, blue, amber); 5 W | | Life Expectancy | Approximately 50,000 hours | | Colors | RGBA color mixing
15 x built-in color macros | | Photometrics | 4656 lux at 6.5' (2 m)
1178 lux at 13.1' (4 m) | | Beam Angle | 25° | | Modes | 6 x Operational Modes: Manual Color, Color Change, Color Fade, Auto (Program Run), Sound Active, and DMX | | Electronic Dimming | 0-100% | | DMX Channel Modes | 8 x DMX channel modes: 1, 2, 3, 4, 5, 6, 7, or 8 channels | | DMX Connectors | Input: 3-pin XLR

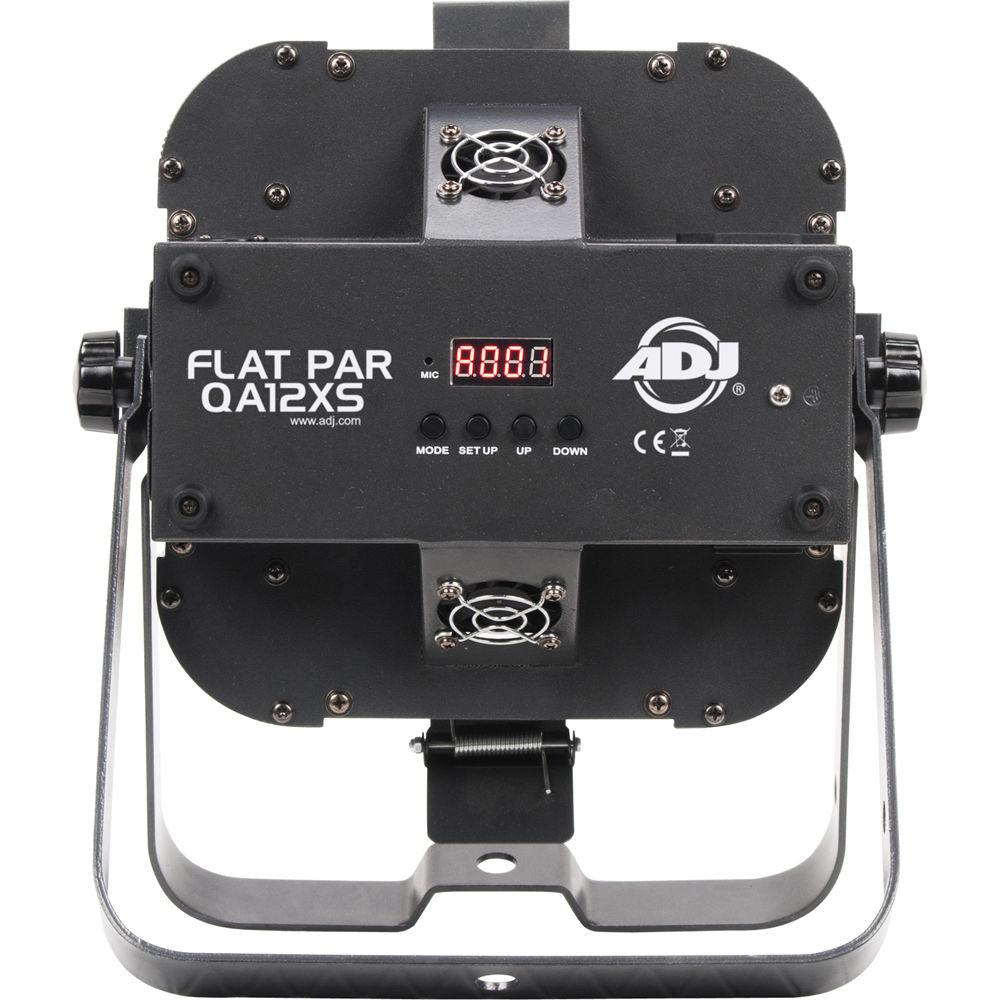

Output: 3-pin XLR | | Display/Controls | LED DMX display with 4-button menu | | Wireless Control | ADJ LED RC2 remote (available separately)
Range: 15' (4.5 m) | | Input Voltage | 100-240 VAC, 50/60 Hz, auto-sensing | | Power Connectors | Input: IEC
Output: IEC | | Power Linking | Up to 7 units | | Maximum Power Draw | 80 W | | Mounting | Dual-yoke bracket | | Dimensions | 13 x 11 x 4.5" (32.8 x 28 x 11.5 cm) | | Weight | 7 lb (3.2 kg) | | | | Package Weight | 11.5 lb | | Box Dimensions (LxWxH) | 14.5 x 12.2 x 9.3" |
