User Manual for American DJ Flat PAR TRI7XS Click to enlarge the picture
Contents of the user manual for the American DJ Flat PAR TRI7XS
- Product category: DJ & Effect Lights American DJ
- Brand: American DJ
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for American DJ DJ & Effect Lights
 |
User manual for the American DJ Flat PAR TRI7XS contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any American DJ product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official American DJ user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a American DJ product will considerably shorten its lifespan!
|

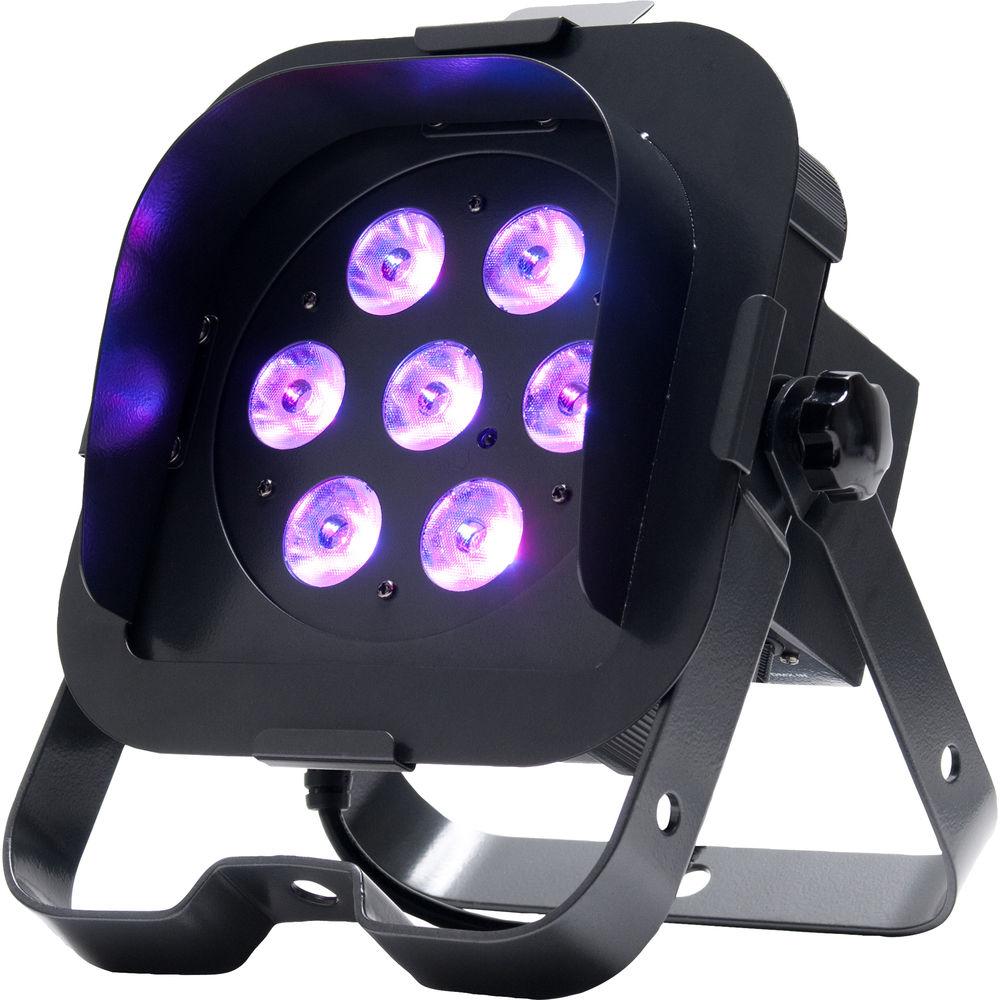

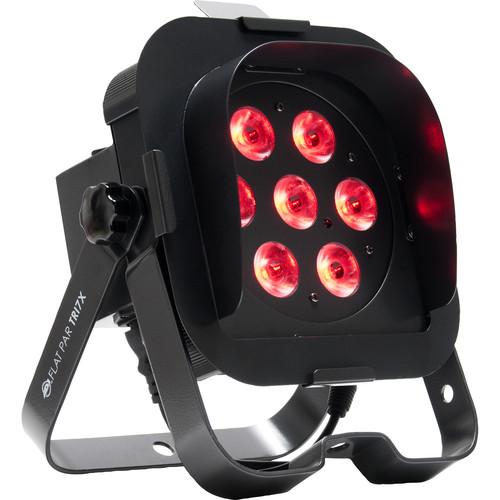

Product description The Flat PAR TRI7XS from American DJ is a professional LED PAR can with bright output. The included snoot helps limit unwanted light exposure.

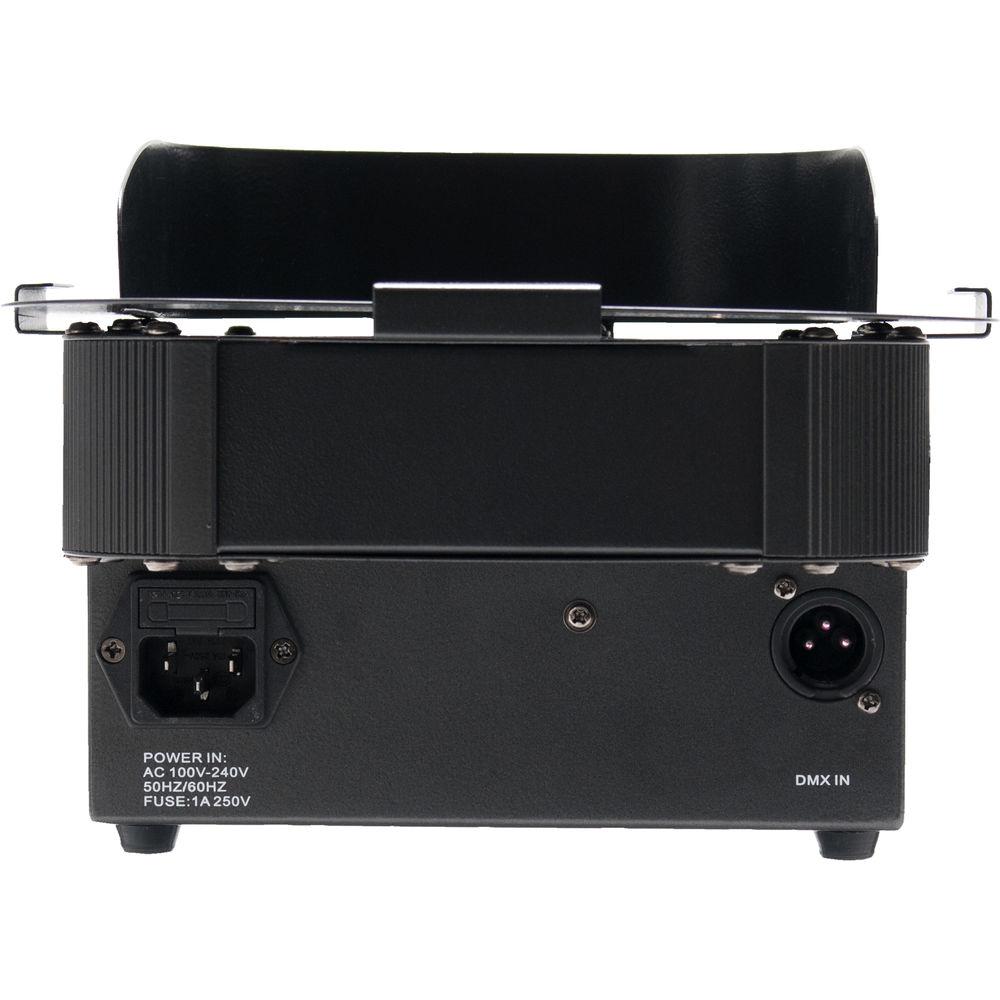

It has seven different DMX channel modes, and may also run in Sound Active or Master/Slave modes. This LED fixture also features fifteen color macros, electronic dimming (0-100%), an IEC AC input and output on the rear to daisy chain power and a 25-degree beam angle. - Slim PAR can with seven 3W tri LEDs
- "Sit-flat" design allows the unit to be set flat on the ground or set inside a truss
- Thirty-two built-in color macros
- Safety hook on rear panel
- Linkable via 3-pin XLR cable

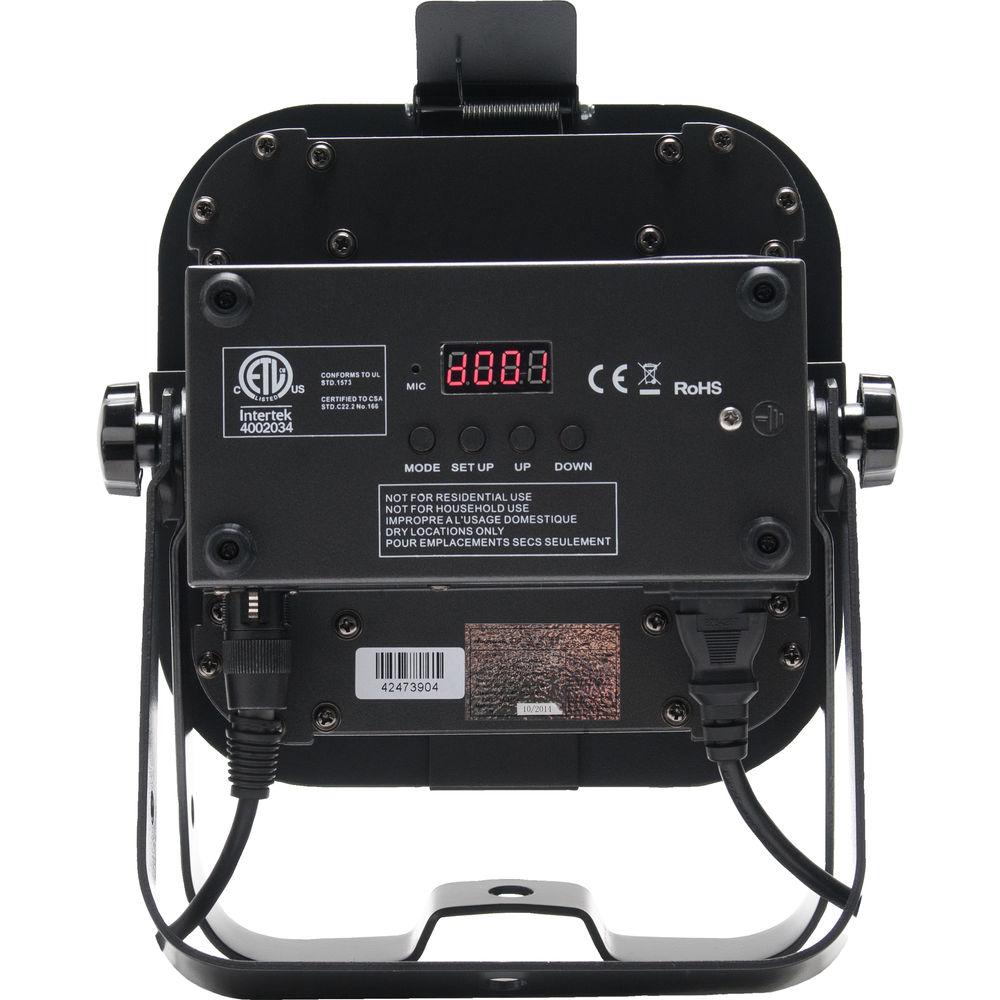

- Four-button LED DMX display on rear panel
- Dual bracket yoke allows fixture to be hung or set on the ground
UPC: 819730015273 In the Box American DJ Flat PAR TRI7XS Snoot Gel Frame Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the American DJ Flat PAR TRI7XS in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersAmerican DJ Flat Par Tri7XS Specs | LED Life | 50,000 hours | | Beam Angle | 25° | | Modes | 6 operational modes: Manual Color, Color Change, Color Fade, Auto (Program Run), Sound Active, and DMX-512 | | Macros | 32 built-in color macros | | Effects | Strobe effect | | DMX | 7 DMX channel modes: 1, 2, 3, 4, 5, 6, 7 | | Electronic Dimming | 0 - 100% | | Inputs and Outputs | DMX 3-pin XLR, IEC AC | | Approvals | ETL listed | | Maximum Power Draw | 25 W | | Power Requirements | 90-240 VAC, 50-60 Hz | | Dimensions | 10.75 x 9 x 4.5" (27.2 x 23 x 11.5 cm) | | Weight | 7 lb (3.2 kg) | | | | Box Dimensions (LxWxH) | 12.0 x 10.5 x 8.5" |
