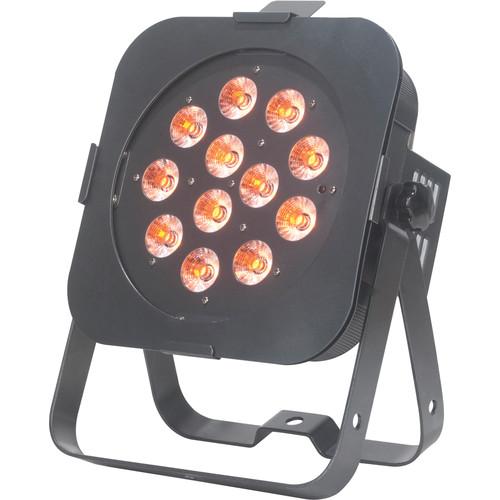

Product description The Flat Par TW12 from American DJ is a 60W dynamic CW/WW/A (cool white, warm white, amber) LED PAR fixture that allows lighting designers to produce washes with white color temperatures ranging from warm yellow-amber tungsten hues to super blue-white discharge looks. It is well suited for creating nuanced white lighting schemes or flattering light that preserves performers skin tones.The unit features twelve 5W Tri-White (3-in-1) LEDs with a 40° beam angle for smooth, seamless color mixing, without RGB shadows. Included is a gel frame for holding optional filters (available separately) used to further diffuse the beam angle.For fast setup, the TW12 can be operated in stand-alone mode with automated programs such as Sound-Active, Auto-Run, Color Macro & Strobe, and in DMX mode for in-depth control. The master/slave option lets you coordinate multiple fixtures without the need for a controller.Other features include flicker-free operation (ideal when used for video applications), 32 built-in color macros, and an auto-sensing power supply. You can also daisy-chain power for up to 10 units.With its sit-flat, slim profile that features convenient side-positioning of power and DMX in/out sockets, the fixture can sit directly on the ground or inside a truss for up-lighting effects. It can be wirelessly controlled with the ADJ LED RC3 remote (available separately). - 60W flat PAR with 12 x 5W Tri-White (3-in-1) LEDs – cool white / warm white / amber
- Dynamic white LEDs for a variety of white color temperatures from warm yellow-amber tungsten hue to super blue-white discharge look

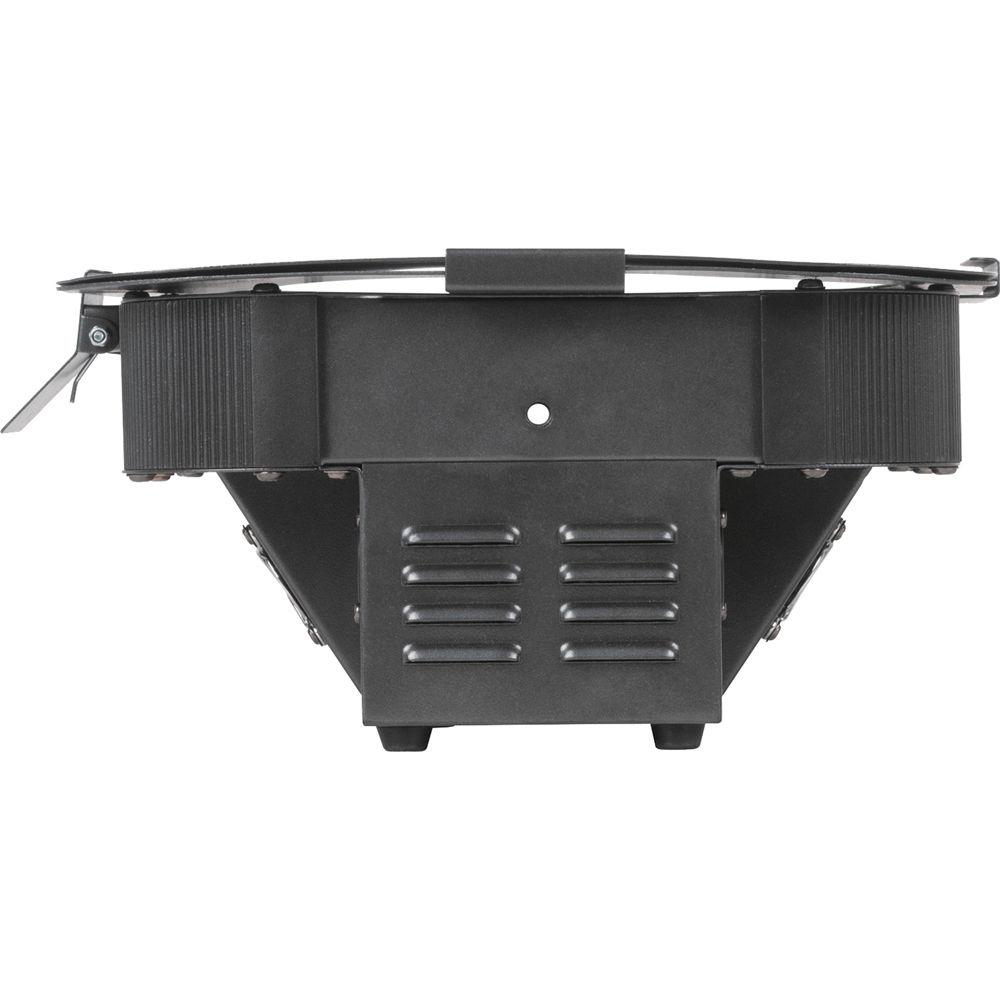

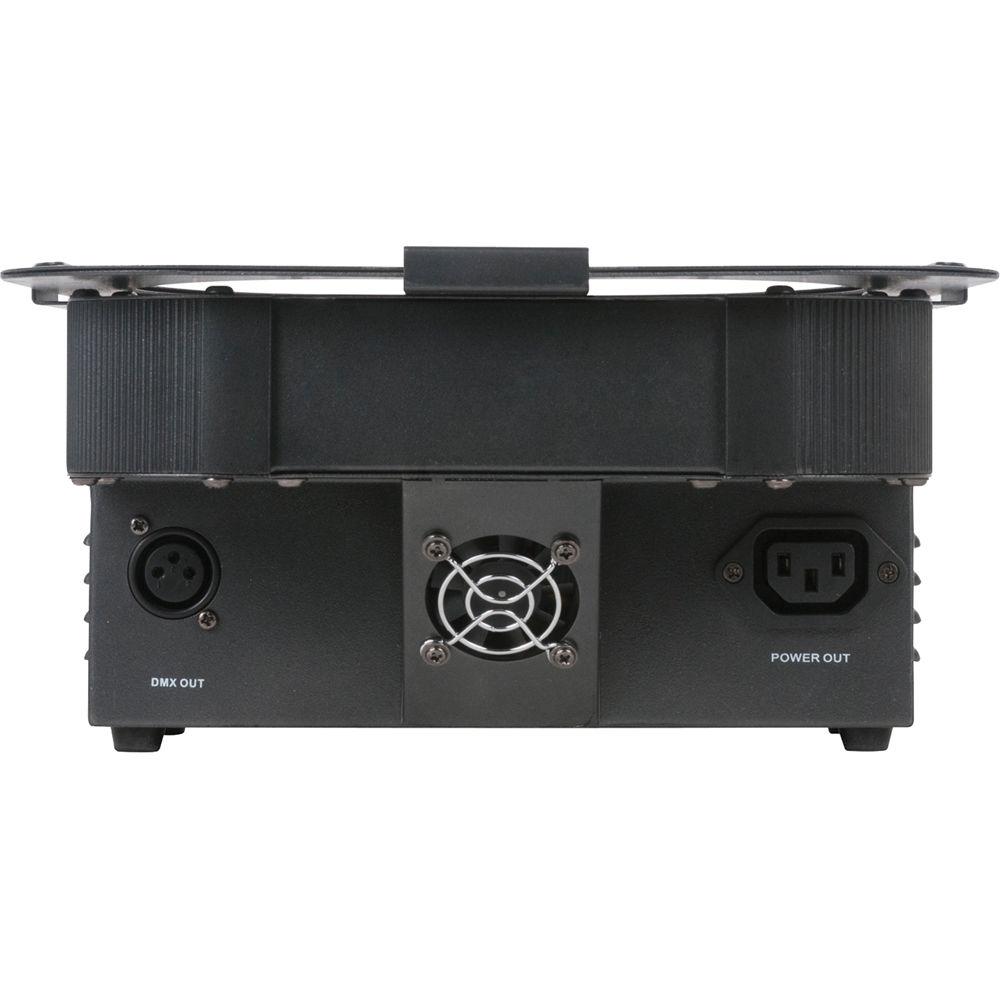

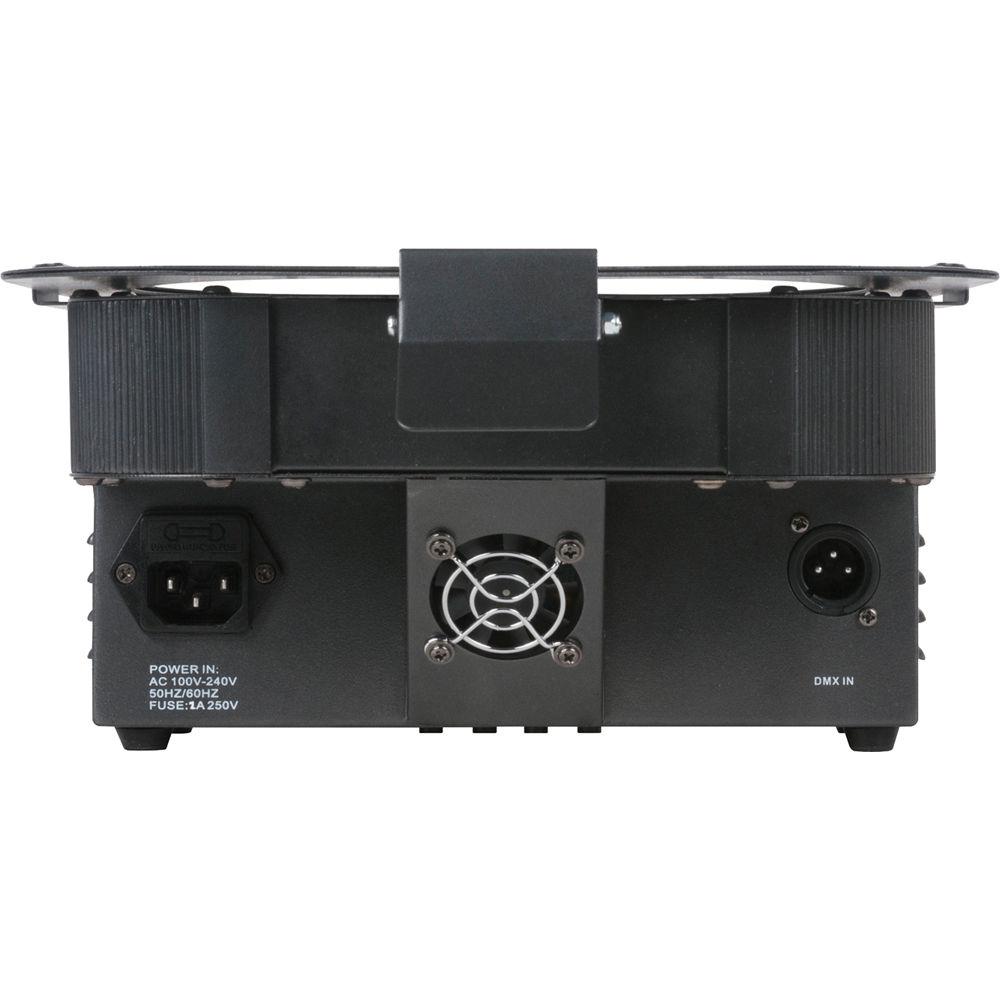

- Sit-flat design with DMX and IEC AC in/out connectors on the side, for positioning fixture flat on the ground or recessed inside a truss
- 6 x DMX channel modes: 2, 3, 4, 5, 8, or 9 channels
- Electronic dimming 0-100%, with five dimming curves – Standard, Stage, TV, Architectural, Theater
- Five operational modes: Static Color, WW/CW/A Dimmer, Auto (Program Run), Sound Active, and DMX
- 32 x built-in color macros
- LED pulse and strobe effect
- Flicker-free light for use with video applications
- Gel frame included - diffuse beam angle with optional filters (available separately)
- Daisy-chain power for up to 10 units
- Dual-bracket yoke to hang fixture on truss, mount on a wall or set on the ground
- Multi-voltage operation: 100-240 VAC, 50/60 Hz, auto-sensing
- Compatible with ADJ LED RC3 wireless remote (available separately)
UPC: 819730013026 In the Box American DJ Flat Par TW12 - 60W Tri-White LED Wash Light Gel Frame IEC Power Cable (6') Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the American DJ Flat Par TW12 - 60W Tri-White LED Wash Light in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersAmerican DJ Flat Par TW12 Specs | Light Source | 12 x Tri-White (3-in-1) Tri LEDs (cool white, warm white, amber); 5 W | | Life Expectancy | Approximately 50,000 hours | | Colors | CW/WW/A color mixing
Variable Color Temperature: 2700 - 6500K
Cool White: > 6500K
Warm White: > 2700K
Amber Wavelength: 590 - 595 nm
32 x built-in color macros | | CRI | Cool White: 70 - 80
Warm White: 70 - 80 | | Illuminance | 1650 lux at 6.5' (2 m)
393 lux at 13.1' (4 m) | | Beam Angle | 40° | | Dimming | Electronic: 0 - 100%
Curves: Standard, Stage, TV, Architectural, Theater | | Modes | 5 x Operational Modes: Static Color, WW/CW/A Dimmer, Auto (Program Run), Sound Active, and DMX | | DMX Connectors | Input: 3-pin XLR
Output: 3-pin XLR | | DMX Channel Modes | 6 x Modes: 2, 3, 4, 5, 8, or 9 channels | | Display/Controls | 4-button, DMX LED display on rear panel | | Wireless Control | ADJ LED RC3 wireless remote (available separately)
Range: 30' (9 m) | | Input Voltage | 100-240 VAC, 50/60 Hz, auto-sensing | | Power Connectors | Input: IEC
Output: IEC | | Power Linking | Up to 10 fixtures | | Power Consumption | 61 W | | Fuse | 2 A | | Mounting | Dual-yoke bracket | | Dimensions | 13.0 x 11.0 x 4.0" (32.8 x 28.0 x 10.5 cm) | | Weight | 7.2 lb (3.25 kg) | | | | Package Weight | 10.009 lb | | Box Dimensions (LxWxH) | 14.7 x 12.6 x 6.6" |
