User Manual for American DJ Flat Par TW5 - 25W Tri-White LED Wash Light

Click to enlarge the picture
American DJ Flat Par TW5 - 25W Tri-White LED Wash Light Contents of the user manual for the American DJ Flat Par TW5 -
  • Product category: DJ & Effect Lights American DJ
  • Brand: American DJ
  • Description and content of package
  • Technical information and basic settings
  • Frequently asked questions – FAQ
  • Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
  • Authorized service for American DJ DJ & Effect Lights

American DJ Flat Par TW5 - 25W Tri-White LED Wash Light American DJ Flat Par TW5 - 25W Tri-White LED Wash Light American DJ Flat Par TW5 - 25W Tri-White LED Wash Light American DJ Flat Par TW5 - 25W Tri-White LED Wash Light
User manual for the American DJ Flat Par TW5 - contain basic instructions that need to be followed during installation and operation. Before starting your appliance, the user manual should be read through carefully. Follow all the safety instructions and warnings, and be guided by the given recommendations. User manual is an integral part of any American DJ product, and if it is sold or transferred, they should be handed over jointly with the product. Following the instructions for use is an essential prerequisite for protecting health and property during use, as well as recognition of liability on the part of the manufacturer for possible defects should you make a warranty claim. Download an official American DJ user manual in which you will find instructions on how to install, use, maintain and service your product.

And do not forget – unsuitable use of a American DJ product will considerably shorten its lifespan!



Product description

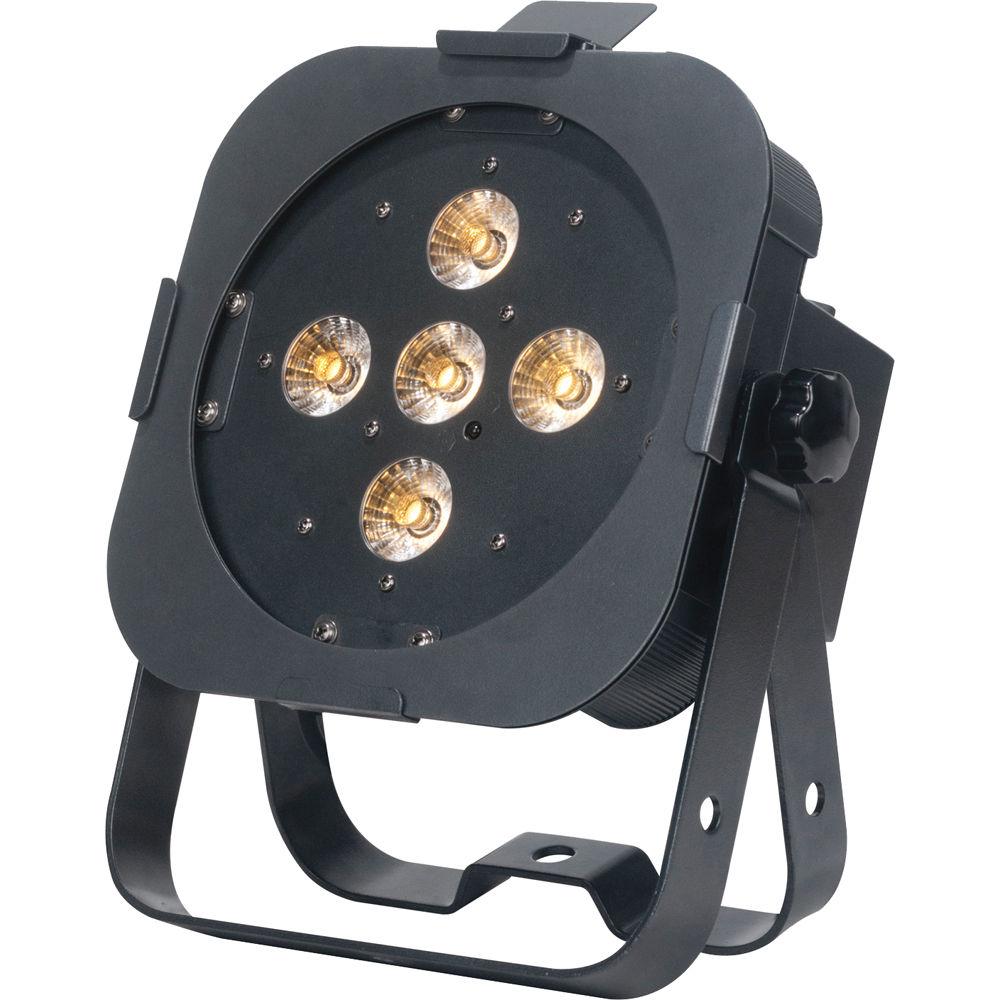

The Flat Par TW5 from American DJ is a 25W dynamic CW/WW/A (cool white, warm white, amber) LED PAR fixture that allows lighting designers to produce washes with white color temperatures ranging from warm yellow-amber tungsten hues to super blue-white discharge looks. It is well suited for creating nuanced white lighting schemes or flattering light that preserves performers skin tones.The unit features five 5W Tri-White (3-in-1) LEDs with a 40° beam angle for smooth, seamless color mixing, without RGB shadows. Included is a gel frame for holding optional filters (available separately) used to further diffuse the beam angle.For fast setup, the TW5 can be operated in stand-alone mode with automated programs such as Sound-Active, Auto-Run, Color Macro & Strobe, and in DMX mode for in-depth control. The master/slave option lets you coordinate multiple fixtures without the need for a controller.Other features include flicker-free operation (ideal when used for video applications), 32 built-in color macros, and an auto-sensing power supply. You can also daisy-chain power for up to 25 units.With its sit-flat, slim profile that features convenient side-positioning of power and DMX in/out sockets, the fixture can sit directly on the ground or inside a truss for up-lighting effects. It can be wirelessly controlled with the ADJ LED RC3 remote (available separately).
  • 25W flat PAR with 5 x 5W Tri-White (3-in-1) LEDs – cool white / warm white / amber
  • Dynamic white LEDs for a variety of white color temperatures from warm yellow-amber tungsten hue to super blue-white discharge look

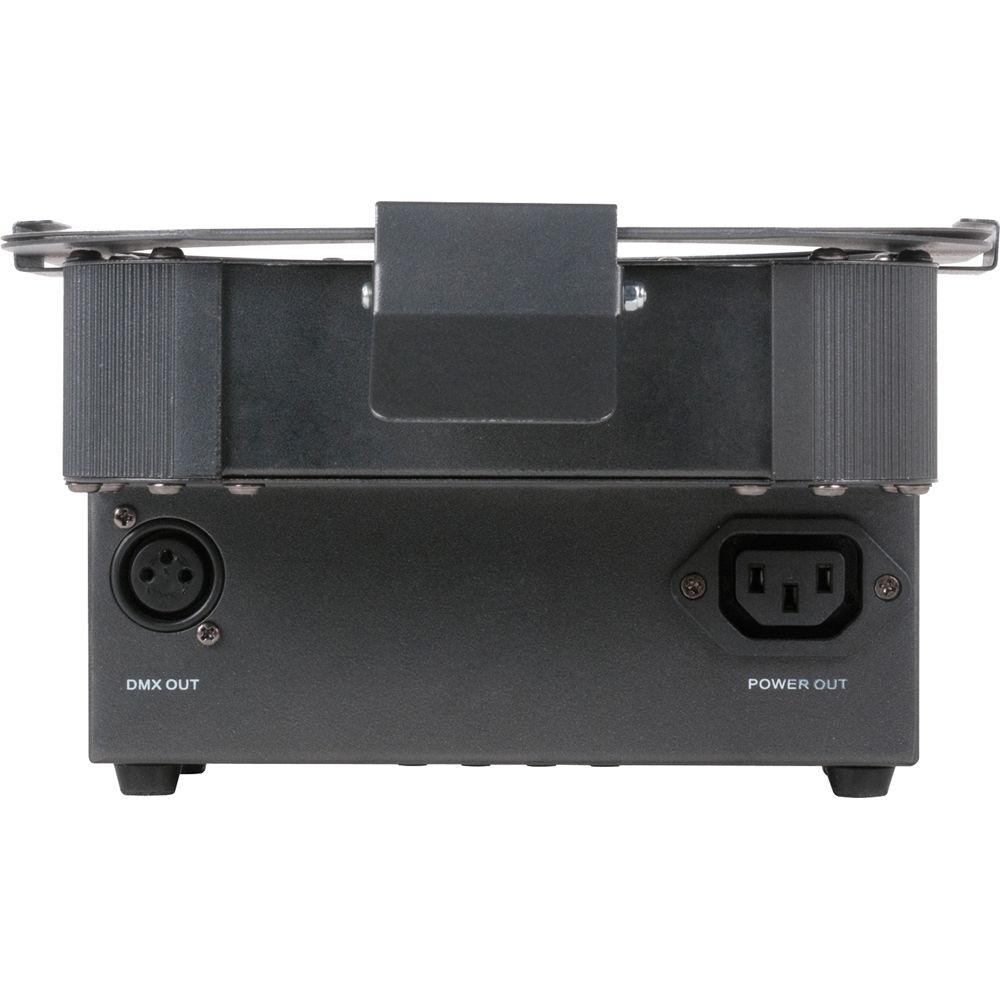

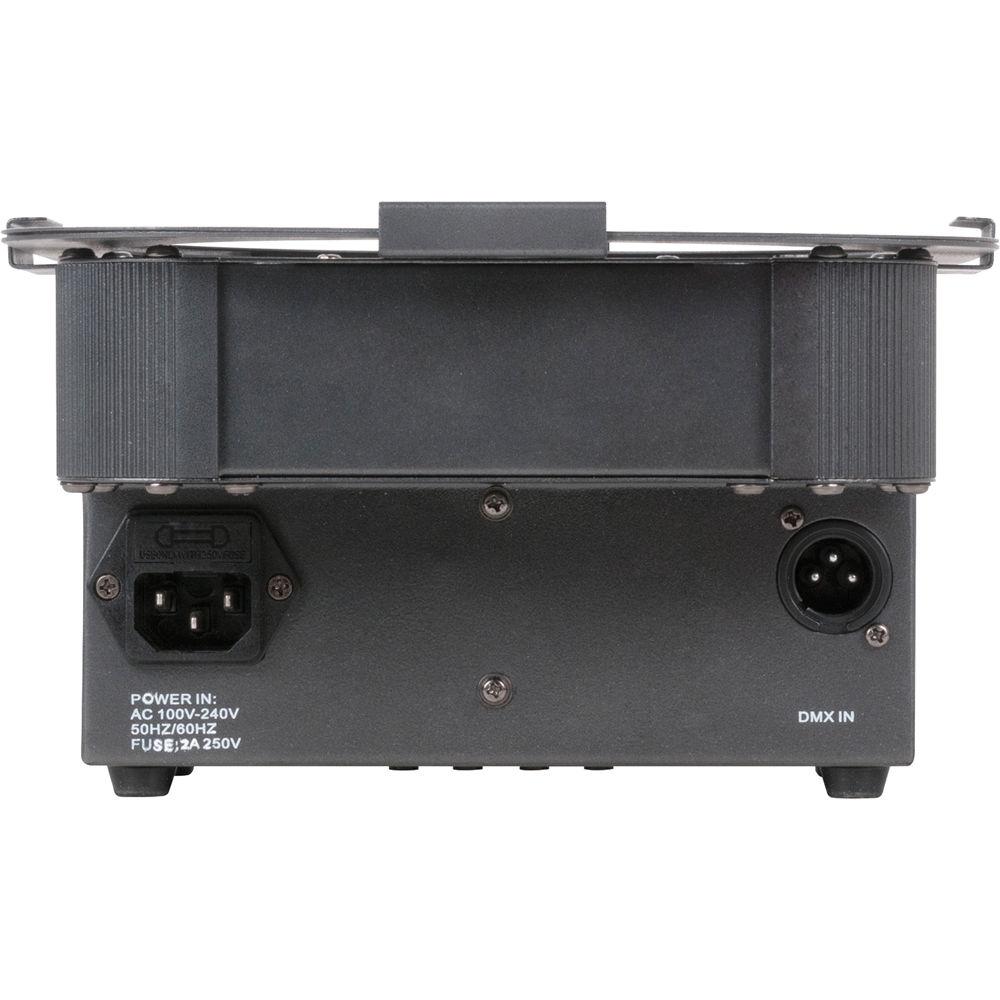

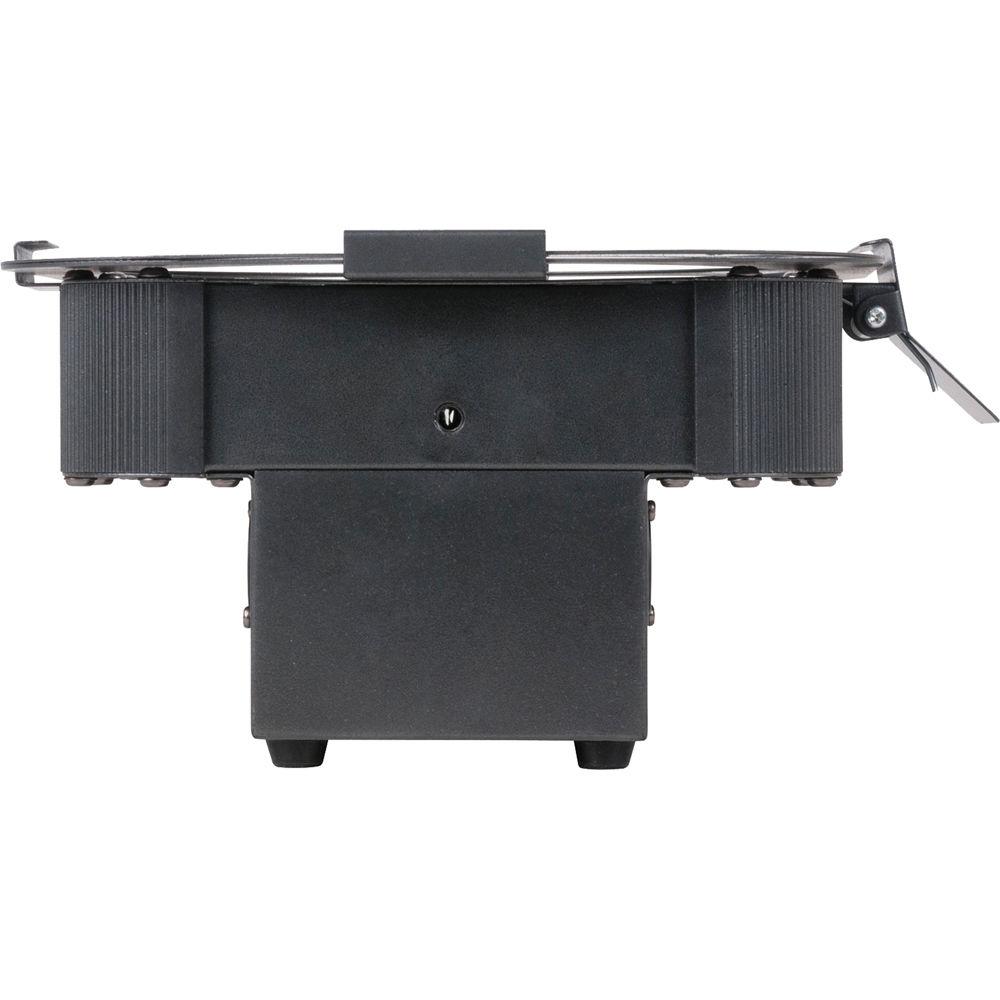

  • Sit-flat design with DMX and IEC AC in/out connectors on the side, for positioning fixture flat on the ground or recessed inside a truss
  • 6 x DMX channel modes: 2, 3, 4, 5, 8, or 9 channels
  • Electronic dimming 0-100%, with five dimming curves – Standard, Stage, TV, Architectural, Theater
  • Five operational modes: Static Color, WW/CW/A Dimmer, Auto (Program Run), Sound Active, and DMX
  • 32 x built-in color macros
  • LED pulse and strobe effect
  • Flicker-free light for use with video applications
  • Gel frame included - diffuse beam angle with optional filters (available separately)
  • Daisy-chain power for up to 25 units
  • Dual-bracket yoke to hang fixture on truss, mount on a wall or set on the ground
  • Multi-voltage operation: 100-240 VAC, 50/60 Hz, auto-sensing
  • Compatible with ADJ LED RC3 wireless remote (available separately)
UPC: 819730013019 In the Box American DJ Flat Par TW5 - 25W Tri-White LED Wash Light
  • Gel Frame
  • IEC Power Cable (6')
  • Limited 2-Year Warranty
  • Table of Contents




    Upload User Manual

    Have you got an user manual for the American DJ Flat Par TW5 - 25W Tri-White LED Wash Light in electronic form? Please send it to us and help us expand our library of instruction manuals. Thank you, too, on behalf of other users.

    To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
    Upload PDF user manual Upload DOC user manual
    Please enter here the link to the user manual of this product:





    OR

    Enter here the file with the user manual of this product from your computer/phone:
    (60MB max; Permitted formats: PDF)

    0%


    Technical parameters

    American DJ Flat Par TW5 Specs

    Light Source 5 x Tri-White (3-in-1) Tri LEDs (cool white, warm white, amber); 5 W
    Life Expectancy Approximately 50,000 hours
    Colors CW/WW/A color mixing
    Variable Color Temperature: 2700 - 6500K
    Cool White: > 6500K
    Warm White: > 2700K
    Amber Wavelength: 590 - 595 nm
    32 x built-in color macros
    CRI Cool White: 70 - 80
    Warm White: 70 - 80
    Illuminance 700 lux at 6.5' (2 m)
    166 lux at 13.1' (4 m)
    Beam Angle 40°
    Dimming Electronic: 0 - 100%
    Curves: Standard, Stage, TV, Architectural, Theater
    Modes 5 x Operational Modes: Static Color, WW/CW/A Dimmer, Auto (Program Run), Sound Active, and DMX
    DMX Connectors Input: 3-pin XLR
    Output: 3-pin XLR
    DMX Channel Modes 6 x Modes: 2, 3, 4, 5, 8, or 9 channels
    Display/Controls 4-button, DMX LED display on rear panel
    Wireless Control ADJ LED RC3 wireless remote (available separately)
    Range: 30' (9 m)
    Input Voltage 100-240 VAC, 50/60 Hz, auto-sensing
    Power Connectors Input: IEC
    Output: IEC
    Power Linking Up to 25 fixtures
    Power Consumption 26 W
    Fuse 2 A
    Mounting Dual-yoke bracket
    Dimensions 10.75 x 9.0 x 4.0" (27.2 x 23.0 x 10.5 cm)
    Weight 5.3 lb (2.4 kg)
    Package Weight 7.75 lb
    Box Dimensions (LxWxH) 12.2 x 10.9 x 6.1"
