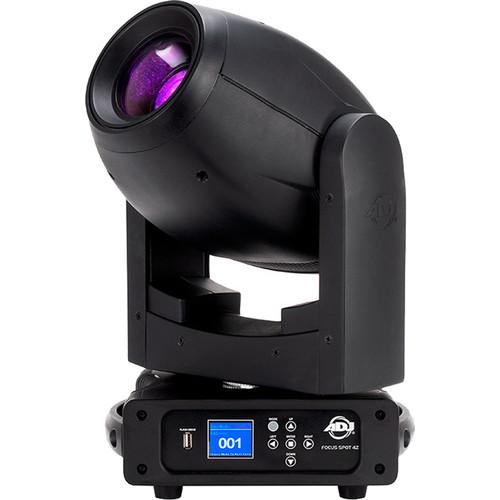

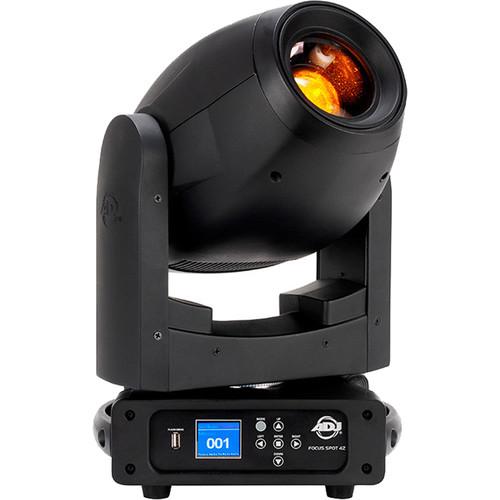

Product description The black American DJ Focus Spot 4Z is a 200W moving-head spot fixture with motorized focus and zoom, well suited for lighting installations and live performance applications in clubs, theaters, and concert productions. The 4Z features a 200W cool-white LED engine (rated at 50,000 hours), 16-bit fine tilt and pan movement, 16-bit fine dimming resolution, motorized focus, and a motorized zoom from 11 to 22°.
The color wheel has eight colors plus white and six replaceable rotating GOBOs plus open. Additional features include two prism effects including rotating 5-facet linear and rotating 6-facet circular. This fixture features six selectable dimming curves as well as numerous built-in effects.For controls, the unit features several DMX channel modes with 3-pin XLR DMX input and output connectors. Multiple units can be daisy-chained to create complex lighting installations. The color display on the front panel shows DMX addressing and function settings, controllable via the four-button interface. A dedicated USB port is available for firmware updates. -
- 200W cool-white LED engine (50,000 hours)
- 8 colors + white
- 6 rotating, replaceable GOBOs + open
- Zoom range: 11 to 22°
- Focus: motorized
- 2 prism FX: rotating 5-facet linear and rotating 6-facet circular

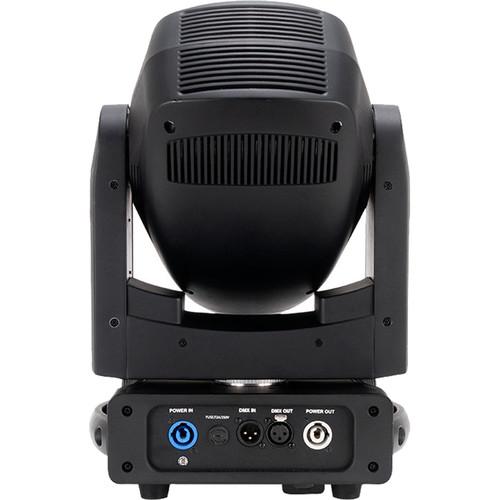

- powerCON in/out to daisy-chain power
- 3-pin DMX in/out
- USB firmware update port
- Multiple DMX control channels mode
- Fine pan & tilt: 16-bit
- Dimming & fine dimming (16-bit): 0-100% electronic
- 6 dimming modes: standard
In the Box American DJ Focus Spot 4Z - 200W LED Moving Head with Motorized Focus & Zoom Omega Bracket Power Cord Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the American DJ Focus Spot 4Z - 200W LED Moving Head with Motorized Focus & Zoom in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersAmerican DJ Focus Spot 4Z Specs | Light Source | 200 W Cool-White LED | | Life Expectancy | Approximately 50,000 Hours | | Beam Angle | 11 to 22° | | Zoom | Motorized | | Pan & Tilt | Standard and Fine Control | | Movement Resolution | 8-bit / 16-bit | | Color Wheel | 8 Colors + Cool White | | Gobos | 6 Rotating and Replaceable GOBOs + Open | | Focus | Motorized | | Prism | Prism 1: 5-Facet Linear, Rotating
Prism 2: 6-Facet Circular, Rotating | | Dimming | Type: Electronic Standard and Fine (16-Bit)
Range: 0-100% | | Dimmer Curves | 6 Curves | | Protocols | DMX | | DMX Connectors | Input 1 x XLR 3-Pin
Output: 1 x XLR 3-Pin
| | DMX Channel Modes | Multiple Channel Modes | | Power Connector | Input/Ouput: powerCON | | Input Voltage | 100 to 230 VAC, 50/60 Hz | | Dimensions | 17.7 x 11.0 x 6.9" / 448.8 x 279.4 x 174.0 mm | | Weight | 18.3 lb / 8.3 kg |
