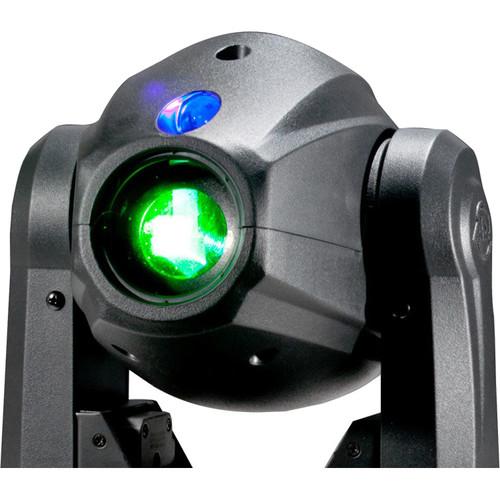

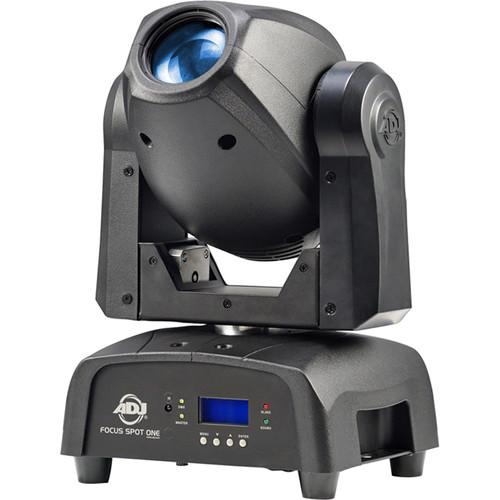

Product description The Focus Spot One Rotating LED Head from American DJ features a high powered 35W LED with motorized focus and a 3W UV LED for black lighting or additional color hues. It also features a gobo wheel with replaceable, rotating, and indexable gobos. The gobos can be replaced easily by removing the top housing with one screw that's on a hinge. Gobos easily lock in and out of the gobo wheel.The moving head supports DMX controlling. It can also be controlled via UC IR wireless remote (not included) or sound, when operated in sound active mode. The Focus Spot One is versatile and suitable for clubs, theaters, churches, and concert productions. - One 35W cool white LED and one 3W UV LED
- Pan/Tilt Inverse mode for contrasting movement when fixtures are linked together
- 15 & 17 DMX channel modes

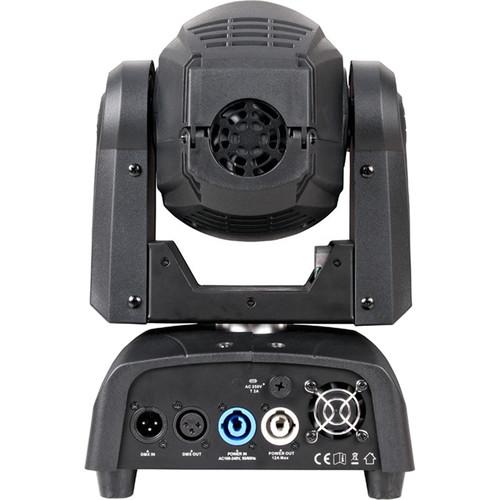

- 3-pin XLR in/out and powerCon in/out power connectors
- 4 built-in lighting shows
- Gobo shake, strobe/pulse, and 6-facet prism effects
UPC: 819730019226 In the Box American DJ Focus Spot One Rotating LED Head Omega Bracket for Truss Mounting Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the American DJ Focus Spot One Rotating LED Head in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.

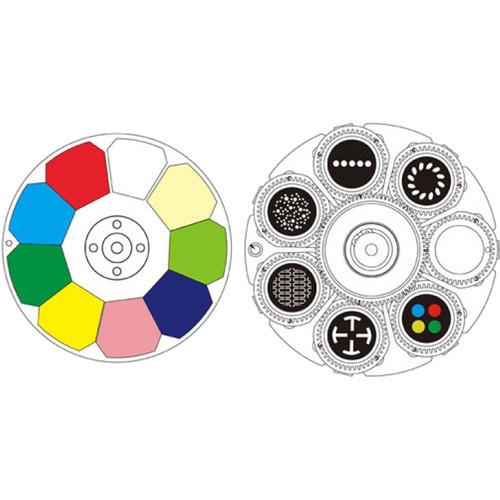

Technical parametersAmerican DJ Focus Spot One Specs | | | Beam Angle | 16° | | Operational Modes | Sound active, show mode, and DMX controlled | | DMX | DMX channel modes: 15 and 17 | | Gobos | 8 x color + spot & split colors
6 x rotating, replaceable gobos + spot | | Gobo Size | Outer: 0.93" (23.8 mm)
Inner: 0.74" (19 mm)
Thickness: 0.007" (0.2 mm) | | Electronic Dimming | 0 to 100%
5 dimmer curves | | Pan | 540° | | Tilt | 240° | | Light Source | 1 x 35 W cool white LED
1 x 3 W UV LED | | LED Life | Approximately 50,000 hours | | Motor | Stepper motors with micro stepping | | Connector | 3-pin XLR in/out
powerCon AC in/out on rear to daisy-chain units | | Daisy Chain | 19 Focus Spot Ones @ 120 V
35 Focus Spot Ones @ 240 V | | Cooling | Fan cooled | | Voltage | Multi-voltage Operation: 100 to 240 V, 50/60 Hz | | Power Consumption | 81 W | | Dimensions | 7.75 x 8.75 x 14.25" (197 x 221 x 360 mm) | | Weight | 12.5 lb (5.7 kg) | | | | Package Weight | 26.0 lb | | Box Dimensions (LxWxH) | 17.4 x 12.7 x 10.4" |
