User Manual for American DJ Focus Spot Three Z 100W LED Moving Head Click to enlarge the picture
Contents of the user manual for the American DJ Focus Spot Three Z
- Product category: DJ & Effect Lights American DJ
- Brand: American DJ
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for American DJ DJ & Effect Lights
 |
User manual for the American DJ Focus Spot Three Z contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any American DJ product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official American DJ user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a American DJ product will considerably shorten its lifespan!
|

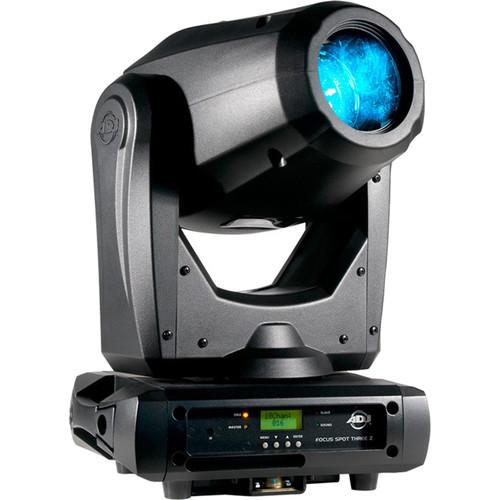

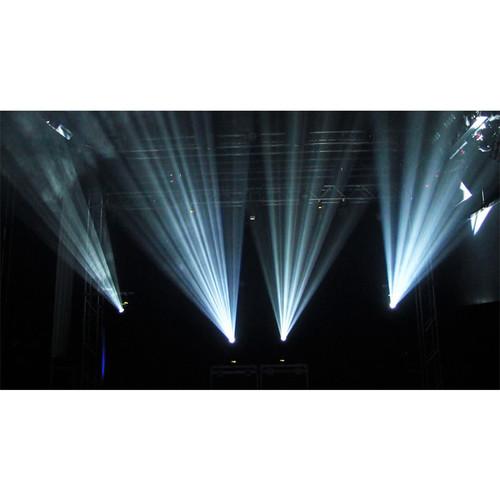

Product description The black Focus Spot Three Z 100W LED Moving Head from American DJ is designed for lighting installations and live performance applications in clubs, theaters, and concert productions. It features a 100W LED light source (rated at 50,000 hours), 540° pan, 270° tilt, 16-bit movement resolution, motorized focus, and motorized zoom from 12 to 18°.
The color wheel has eight colors and white, while one gobo wheel features seven static gobos, and the other gobo wheel has six rotating/interchangeable gobos. The gobos feature both shake and scroll effects, and can be further manipulated with either the rotating 6-facet circular prism or the rotating 6-facet linear prism. This fixture features five selectable dimming curves (standard, stage, TV, architectural, theater). It also features an electronic regular strobe, a random strobe, and a pulse effect.
For controls, the unit features two DMX channel modes (18 and 21 channels) with 3-pin XLR DMX input and output connectors. Multiple units can be daisy-chained to create complex lighting installations. The pan/tilt inversion mode is designed for contrasting movement when the fixtures are linked together. The unit also features a sound-activation mode that utilizes an internal microphone, as well as an internal show mode with four built-in shows. The LED display on the front panel shows DMX addressing and function settings, controllable via the four-button interface. - High-output moving head with 100W LED source
- 8 colors, white, and split colors
- Gobo wheel 1: seven static gobos + spot
Gobo wheel 2: six rotating / interchangeable gobos + spot - Separate color & gobo wheels
- 6-facet linear prism and 6-facet circular prism, both rotating
- 3 operational modes: DMX, sound active & internal show control
- 2 DMX channel modes: 18 and 21 channels
- 4 built-in lighting shows
- 12 to 18° variable beam angle
- 630° pan / 270° tilt (16-bit) fast pan/tilt movement
- Pan / tilt inversion mode
- Electronic dimming: 0 to 100%
- 5 selectable dimming curves: standard, stage, TV, architectural, and theater
- Electronic shutter with variable-speed strobe, random strobe, and pulse effects
- XLR 3-pin DMX input and output

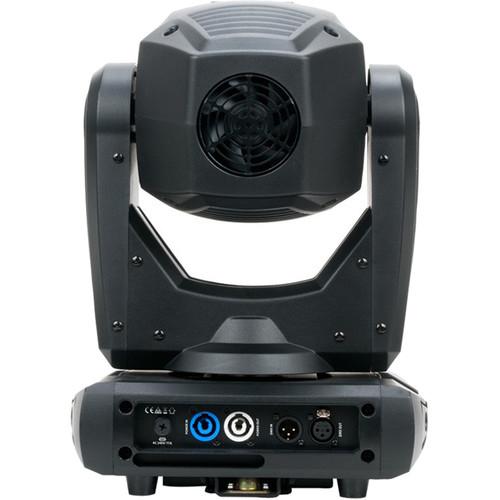

- Power link fixtures via the powerCON connectors
- Long life: rated at approximately 50,000 hours
- 4-button DMX LCD menu with 180° Inverse View mode
- Stepper motors with micro-stepping
UPC: 819730019035 In the Box American DJ Focus Spot Three Z 100W LED Moving Head Omega Bracket Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the American DJ Focus Spot Three Z 100W LED Moving Head in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersAmerican DJ Focus Spot Three Z Specs | Light Source | 1 x 100 W Cool White LED | | Life Expectancy | Approximately 50,000 hours | | Illuminance | 12° @ 9.9' (3 m): 13,090 lux
18° @ 9.9' (3 m): 6300 lux | | Beam Angle | 12 to 18° | | Zoom | Motorized | | Pan | 630° | | Tilt | 270° | | Movement Resolution | 8-bit / 16-bit | | Color Wheel | 8 x colors + white
Split colors | | Gobos | Wheel 1: 7 x static gobos + spot
Wheel 2: 6 x rotating / interchangeable gobos + spot
Effects: Shake
Size (Wheel 2): 23.8 mm (outer), 20 mm (viewable) | | Focus | Motorized | | Prism | Prism 1: 6-facet linear, rotating
Prism 2: 6-facet circular, rotating | | Dimming | Type: Electronic
Range: 0-100% | | Dimmer Curves | Standard / Stage / TV / Architectural / Theater | | Shutter/Strobe | Type: Electronic
Strobe: Standard, Random, Pulse | | Operation Modes | 3 x Modes: DMX, sound activation, and internal show | | Protocols | DMX | | DMX Connectors | Input 1 x XLR 3-pin
Output: 1 x XLR 3-pin
| | DMX Channel Modes | 2 x Modes: 18 and 21 channels | | Wireless Control | ADJ UC IR Remote (available separately)
ADJ Airstream IR (available separately) | | Power Connector | Input: 1 x powerCON
Output: 1 x powerCON | | Input Voltage | 100 to 230 VAC, 50/60 Hz | | Power Linking | 120 VAC: Up to 3 units
230 VAC: Up to 6 units | | Power Consumption | 230 W | | Fuse | 5 A | | Cooling | Fan-cooled | | Duty Cycle | None | | Working Position | Any safe, secure position | | Mounting | Omega bracket | | Dimensions | 7.25 x 11.25 x 19.75" (18.5 x 28.4 x 48.9 cm) | | Weight | 26 lb (12 kg) | | | | Package Weight | 32.75 lb | | Box Dimensions (LxWxH) | 23.25 x 16.0 x 12.0" |
