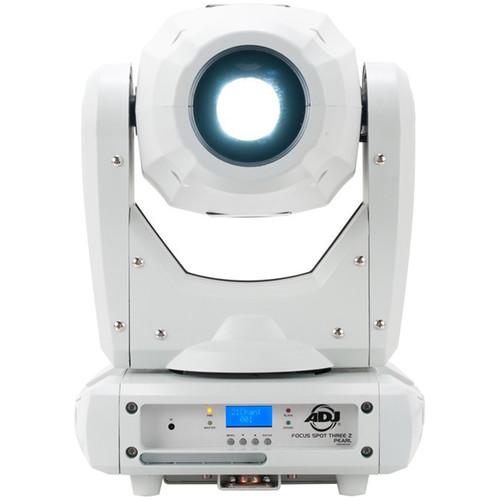

Product description The Focus Spot Three Z Pearl Moving Head Fixture from American DJ with white casing features motorized focus and motorized zoom allowing for a variable beam angle from 12 to 18°. In addition, it comes fit with one rotating gobo wheel, one fixed gobo wheel, and one color wheel, letting you generate patterns and effects in a series of vibrant hues.
The Three Z Pearl features two 6-facet prisms (one circular and one linear), enabling spellbinding multi-beam effects capable of filling wide spaces with color and movement. It is versatile and has 18 & 21 DMX channel modes, pan/tilt inversion, 16-bit pan/tilt, 3-pin DMX in/out, powerCON in/out power connectors, and a 4-button DMX LCD menu with 180° inverse view mode. - High output 100W LED moving head spot with white casing
- Four built-in lighting shows
- Electronic strobe/pulse effect, random strobe slow to fast
- Pan/Tilt inverse mode for contrasting movement when fixtures are linked together
- Two 6-facet rotating prism effects (one circular & one linear)
- 16-bit fine pan/tilt control
- Stepper motors with micro stepping
- 4-button DMX LCD menu with 180° inverse view mode
- Includes Omega bracket for truss mounting
UPC: 819730019240 In the Box American DJ Focus Spot Three Z Pearl Moving Head Fixture Omega Bracket Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the American DJ Focus Spot Three Z Pearl Moving Head Fixture in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersAmerican DJ Focus Spot Three Z Specs | Lamp | 100W high output LED | | Lamp Life | Approximately 50,000 hours | | Beam Angle | 12 to 18° beam angle | | Operational Modes | Sound active, show mode, & DMX controlled | | Gobo Wheel | Gobo wheel 1 has 7 x static gobos + spot
Gobo wheel 2 has 6 rotating gobos + spot
Interchange gobos on wheel 2 x 23.8 mm gobo size, 20 mm viewable | | Pan/Tilt | 630°/270° | | Color | 8 colors + spot | | DMX Connectors | 3-pin XLR In/Out | | DMX Channels | 18 & 21 DMX channel modes | | Power Connection Type | PowerCon AC in/out on rear to daisy chain power (up to 3 Focus Spot Three Zs @ 120 V and 6 Focus Spot Three Zs @ 230 V) | | Power | 100 to 230 V, 50/60 Hz | | Power Consumption | 230 W | | Dimensions | 7.3 x 11.3 x 19.8" (19 x 28.7 x 50.1) | | Weight | 26 lb (12 kg) |
