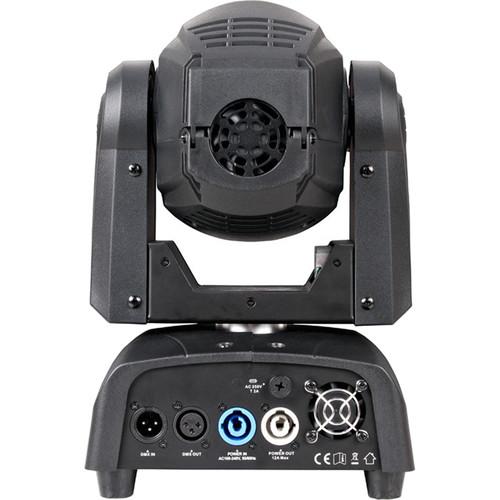

Product description The Focus Spot Two Rotating LED Head from American DJ features a high powered 75W LED with motorized focus and a 3W UV LED for black lighting or additional color hues. It also features a gobo wheel with replaceable, rotating, and indexable gobos. The gobos can be replaced easily by removing the top housing with one screw that's on a hinge. Gobos easily lock in and out of the gobo wheel.The moving head supports DMX controlling. It can also be controlled via a UC IR wireless remote (not included) or via sound, when operated in sound active mode. The Focus Spot Two is versatile and suitable for clubs, theaters, churches, and concert productions. - One 75W cool white LED and one 3W UV LED
- Manual zoom knob near the lens to change the beam angle from 15° to 20°
- Pan/Tilt Inverse mode for contrasting movement when fixtures are linked together
- 16 & 18 DMX channel modes
- 3-pin DMX in/out and powerCon in/out power connectors
- 4 built-in lighting shows
- Gobo shake, strobe/pulse¸ and 6-facet prism effect
UPC: 819730018298 In the Box American DJ Focus Spot Two Rotating LED Head Omega Bracket for Truss Mounting Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the American DJ Focus Spot Two Rotating LED Head in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersAmerican DJ Focus Spot Two Specs | Beam Angle | 15° to 20° | | Operational Modes | Sound active, show mode, and DMX controlled | | DMX | DMX channels: 16 and 18 | | Gobos | 8 x color + spot & split colors
6 x rotating, replaceable gobos + spot | | Gobo Size | Outer: 0.93" (23.8 mm)
Inner: 0.74" (19 mm)
Thickness: 0.007" (0.2 mm) | | Electronic Dimming | 0 to 100%
5 dimmer curves | | Pan | 540° | | Tilt | 230° | | Light Source | 1 x 75 W cool white LED (8000K, 50,000 hours)
1 x 3 W UV LED | | LED Life | Approximately 50,000 hours | | Motor | Stepper motors with micro stepping | | Connector | 3-pin XLR in/out
powerCon AC in/out on rear to daisy chain units | | Daisy Chain | 14 Focus Spot Twos @ 120 V
26 Focus Spot Twos @ 240 V | | Cooling | Fan cooled | | Voltage | Multi-Voltage Operation: 100 to 240 V, 50/60 Hz | | Power Consumption | 108 W | | Dimensions | 6.75 x 9.25 x 15.25" (173 x 237 x 385 mm) | | Weight | 16 lb (7.3 kg) |
