User Manual for American DJ Fog Fury Jett Pro RGBA UV LED Fog Machine Click to enlarge the picture
Contents of the user manual for the American DJ Fog Fury Jett Pro
- Product category: Fog & Haze Machines American DJ
- Brand: American DJ
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for American DJ Fog & Haze Machines
 |
User manual for the American DJ Fog Fury Jett Pro contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any American DJ product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official American DJ user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a American DJ product will considerably shorten its lifespan!
|
Product description The American DJ Fog Fury Jett Pro is a high-output fog machine that uses red, green, blue, amber, and UV LEDs to add color to blasts of fog over 40' in the air. The machine has a 0.7-gallon tank that can be mounted in the front or rear, so the unit can be used vertically or horizontally. Fog output is 40,000 ft3/min and ADJ employs Electronic Thermo-Sensing Technology to maintain a constant temperature to avoid long warm-up times between blasts. A sensor inside the reservoir tank will cause an LED to flash when the level is low. Operate the Fog Fury Jett Pro using the built-in manual controls or via the included wireless remote. It also has five DMX channel modes (1, 2, 3, 7, and 9 channels) and onboard WiFLY EXR wireless DMX, with controls available for fog, color mixing, and strobing. - Benefits
-
- 1450W professional DMX fog machine
- Accommodates vertical or horizontal orientation

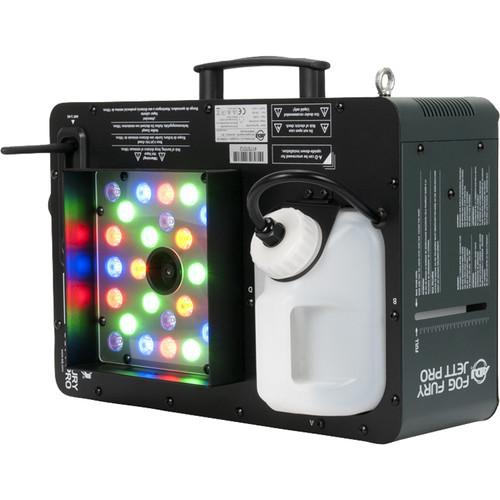

- 28 x 3W RGBA LEDs (six red, seven green, six blue, three amber, and six UV)
- High-performance pump for 40,000 ft³/minute output
- Produces a dry blast of fog over 40' high
- ADJ’s Electronic Thermo-Sensing (ETS) technology
- Special heating element design that uses an oil-type transmission pipeline system to minimize the possibility of clogging
- Supports manual control, remote control, and DMX control
- 1, 2, 3, 7, and 9 DMX channels
- Onboard ADJ WiFLY EXR wireless DMX

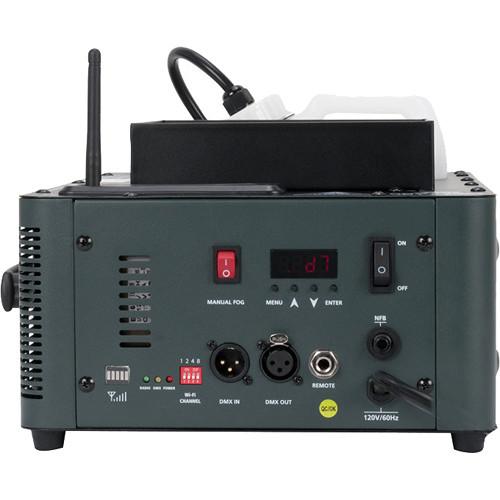

- 4-button control panel and LCD display on rear panel
- Includes wireless remote control and receiver
- XLR 3-pin DMX input and output connections
- Convenient carrying handle
- Visible fog-fluid level indicator on rear
- LED under reservoir flashes when level is low

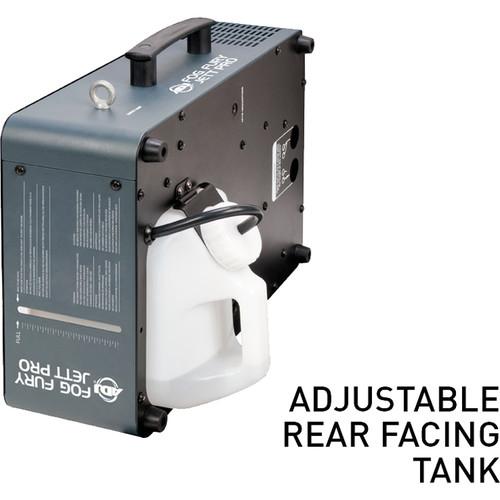

- Tank can be mounted to either front or rear so that the effect may be pointed up or down
- Only use high-quality, water-based fog fluid
- Safety cable eye bolt
UPC: 819730019714 In the Box American DJ Fog Fury Jett Pro RGBA+UV LED Fog Machine FFJWR Wireless Remote for Fog Fury Jett rwvvzrzvdadxxysaayaetyuycvuwwt Limited 2-Year Warranty on LEDs Limited 1-Year Warranty on Fog Machine Table of Contents
|
Upload User Manual
Have you got an user manual for the American DJ Fog Fury Jett Pro RGBA UV LED Fog Machine in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersAmerican DJ Fog Fury Jett Pro Specs | LED Source | 28 x 3 W R/G/B/A/UV LEDs:
6 x Red
7 x Green
6 x Blue
3 x Amber
6 x UV | | Output | Fog: 40,000 ft3 / 1132.67 m³ per min
Height: > 40' / 12.2 m (maximum) | | Tank Volume | 0.7 gal / 2.5 L | | Fluid | Water-based | | Fluid Consumption | 150 mL/minute | | Heater | 1450 W | | Access Time | Heat-Up Time: 9 minutes
Reheating Time Between Intervals: 80 seconds | | Operation Modes | Manual, remote control, DMX | | DMX Connectors | Input: XLR 3-pin male
Output: XLR 3-pin female | | DMX Channel Modes | 1, 2, 3, 7, and 9 | | Wireless Range | WiFLY EXR: 2500' / 760 m (maximum, line of sight) | | Wireless Remote | ADJ FFJWR | | Voltage | 120 VAC, 60 Hz or 240 VAC, 50 Hz (non-switching) | | Power Connections | Input: IEC | | Power Consumption | 1550 W | | Breakers | 120 VAC: 16 A
230 VAC: 10 A | | Duty Cycle | Not to exceed 6 hours turned on | | Dimensions (L x W x H) | 16.5 x 12.4 x 8.1" / 41.9 x 31.5 x 20.6 cm | | Weight | 21 lb / 9.5 kg | | | | Package Weight | 26.31 lb | | Box Dimensions (LxWxH) | 20.8 x 16.6 x 9.9" |
