User Manual for American DJ Fog Fury Jett - RGBA LED Fog Machine Click to enlarge the picture
Contents of the user manual for the American DJ Fog Fury Jett -
- Product category: Fog & Haze Machines American DJ
- Brand: American DJ
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for American DJ Fog & Haze Machines
 |
User manual for the American DJ Fog Fury Jett - contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any American DJ product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official American DJ user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a American DJ product will considerably shorten its lifespan!
|

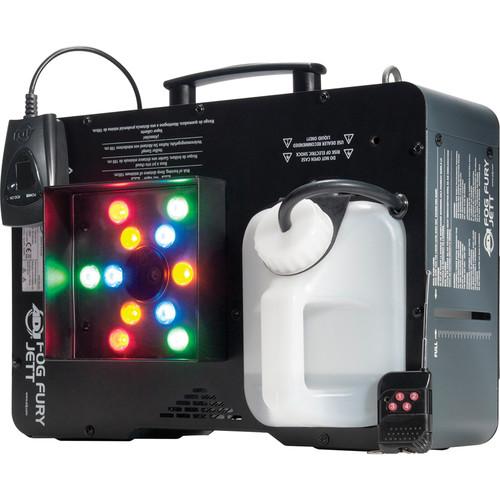

Product description The American DJ Fog Fury Jett is a high-velocity fog machine that uses red, green, blue, and amber LEDs to add color to blasts of fog over 25' in the air. The machine has a 0.8 gal tank that can be mounted in the front or rear of the unit so that it can be used vertically or horizontally. Fog output is 20,000 ft3/min and ADJ employs Electronic Thermo Sensing Technology to maintain constant temperature to avoid long warm-up times between blasts. A sensor inside the reservoir tank will cause an LED to flash when the level is low and, once it reaches a lower level, will automatically shut off the pump. The Fog Fury Jett has manual control and remote control via the included wireless remote. It also has five DMX channel modes (1, 2, 3, 5, and 7 channels), with controls available for fog, color mixing, and strobing. - Benefits
-
- 700W professional DMX vertical fog machine
- 12 x 3W RGBA LEDs (3 of each: red, green, blue, amber)
- High-performance pump for optimum output
- ADJ’s Electronic Thermo Sensing (ETS) technology
- Special heating element design that uses an oil-type transmission pipeline system to minimize the possibility of clogging
- 3 Operational modes: Manual, Remote Control, or DMX Controlled
- 5 DMX Channel Modes: 1, 2, 3, 5 or 7 channels

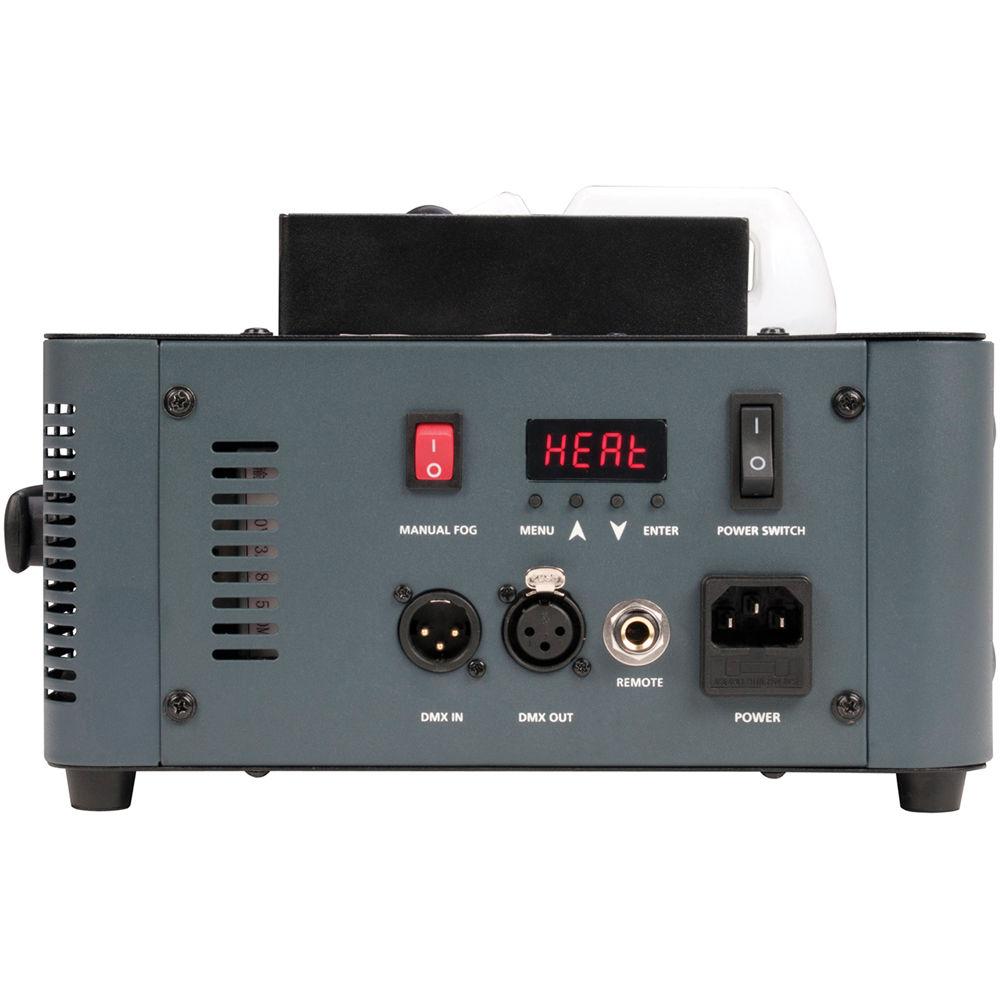

- 4-button control panel & LCD display on rear panel
- XLR 3-pin DMX input and output connections
- Convenient carrying handle
- Visible fog-fluid level indicator on rear
- LED in reservoir flashes when level is low and automatically turns off pump at a lower level
- Tank can be mounted to either front or rear so that the effect may be pointed up or down
- Only use high-quality, water-based fog fluid
- Safety Loop on board

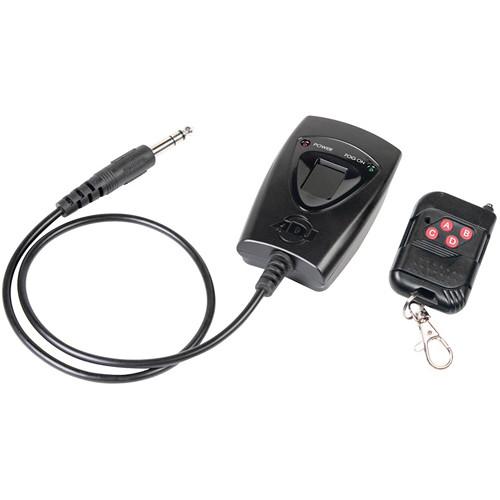

UPC: 819730013835 In the Box American DJ Fog Fury Jett - RGBA LED Fog Machine FFJWR Wireless Remote for Fog Fury Jett Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the American DJ Fog Fury Jett - RGBA LED Fog Machine in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersAmerican DJ Fog Fury Jett Specs | LED Source | 12 x 3 W R/G/B/A LEDs
3 x red, 3 x green, 3 x blue, 3 x amber | | Output | Fog: 20,000 ft3/min | | Tank Volume | 0.8 gal (3 L)
| | Fluid | Water-based | | Warm-Up Time | 9 minutes | | Heater | 700 W | | Operation Modes | 3 x Modes: manual, remote control, DMX | | DMX Connectors | Input: XLR 3-Pin
Output: XLR 3-Pin | | DMX Channel Modes | 5 x Modes: 1, 2, 3, 5, 7 channels | | Wireless Remote | ADJ FFJWR | | Voltage | 120 VAC, 60 Hz | | Power Connections | Input: IEC | | Power Consumption | 730 W (full on) | | Dimensions (L x W x H) | 15.5 x 12.0 x 7.5" (397.0 x 302.0 x 191.0 mm) | | Weight | 16.0 lb (7.1 kg) | | | | Package Weight | 19.55 lb | | Box Dimensions (LxWxH) | 19.7 x 14.4 x 10.0" |
