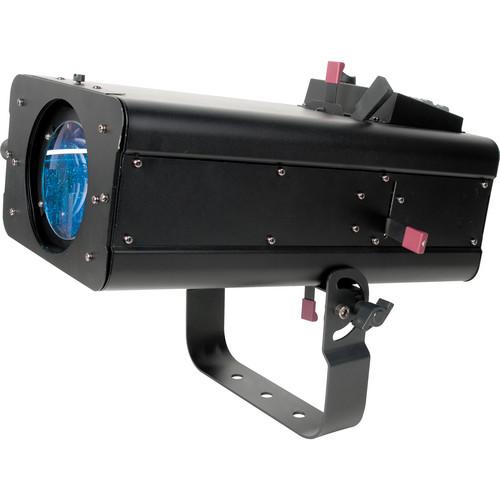

Product description The FS600LED from American DJ is a powerful followspot designed to project bright beams of color and white light in theaters, clubs, and similar locations.Combining traditional spotlight functionality with the benefits of LED technology, the FS600LED features a fan-cooled, 60W high-powered white LED which draws only 80W of power, allowing it to stay cool and to provide a longer lifespan than with traditional bulbs. It is capable of throwing spot beams in eight different colors (white, warm white, red, blue, green, orange, yellow, and UV).The fixture includes a manually adjustable iris, focus, framing shutters, and an 18 to 26° beam angle. Color selection, LED strobe effect, and 0-100% electronic dimming can be controlled via on-board sliders or via three DMX channels, letting you integrate the unit into your existing lighting setup.The FS600LED comes equipped with a gobo and a gel frame holder, a hanging bracket, and a universal auto-sensing power supply. - Followspot with one 60W high-powered white LED source
- Fan-cooled fixture with low 80W power draw – stays cool and provides longer lifespan than traditional bulbs
- 8 Colors: white, warm white (3200K), red, blue, green, orange, yellow, UV
- Typical Throw: 131' (18°) to 92' (26°)
- Manually adjustable iris, focus, framing shutters, and 18° or 26° beam angle

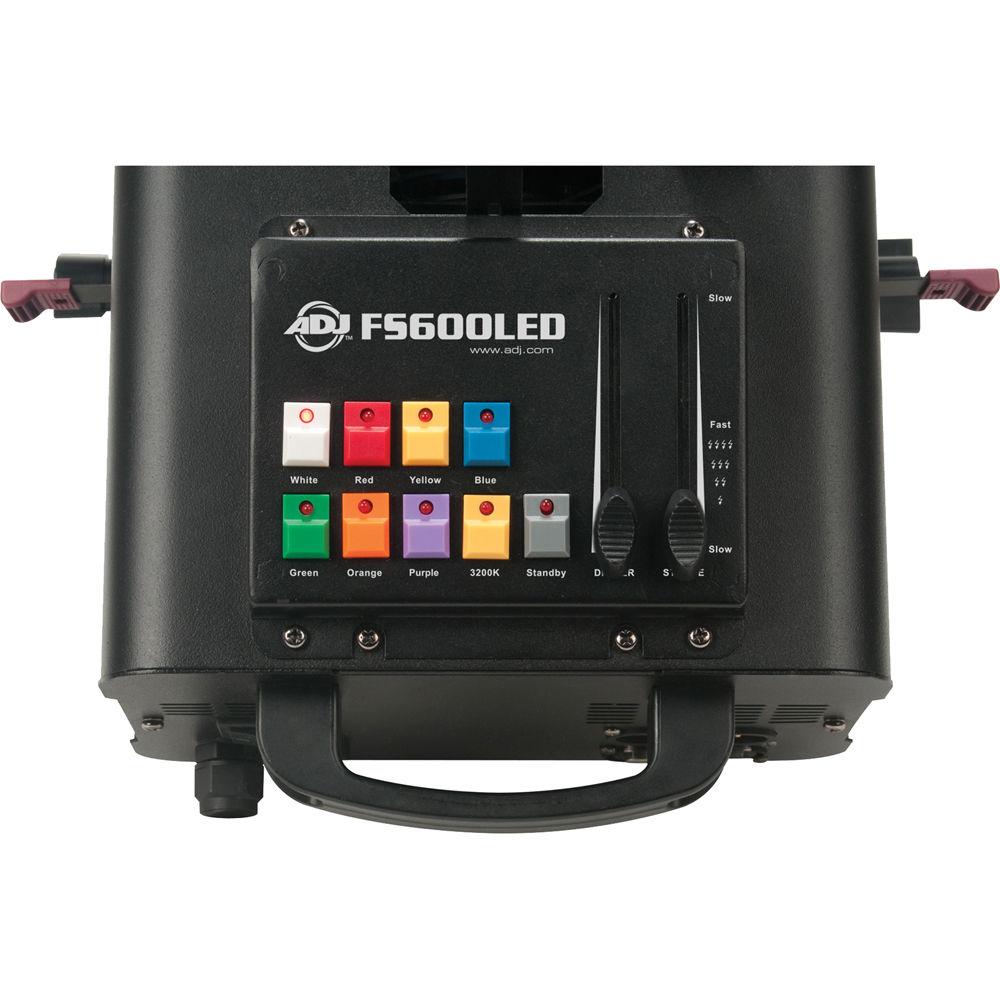

- 0-100% electronic dimming and LED strobe effect controlled via on-board sliders

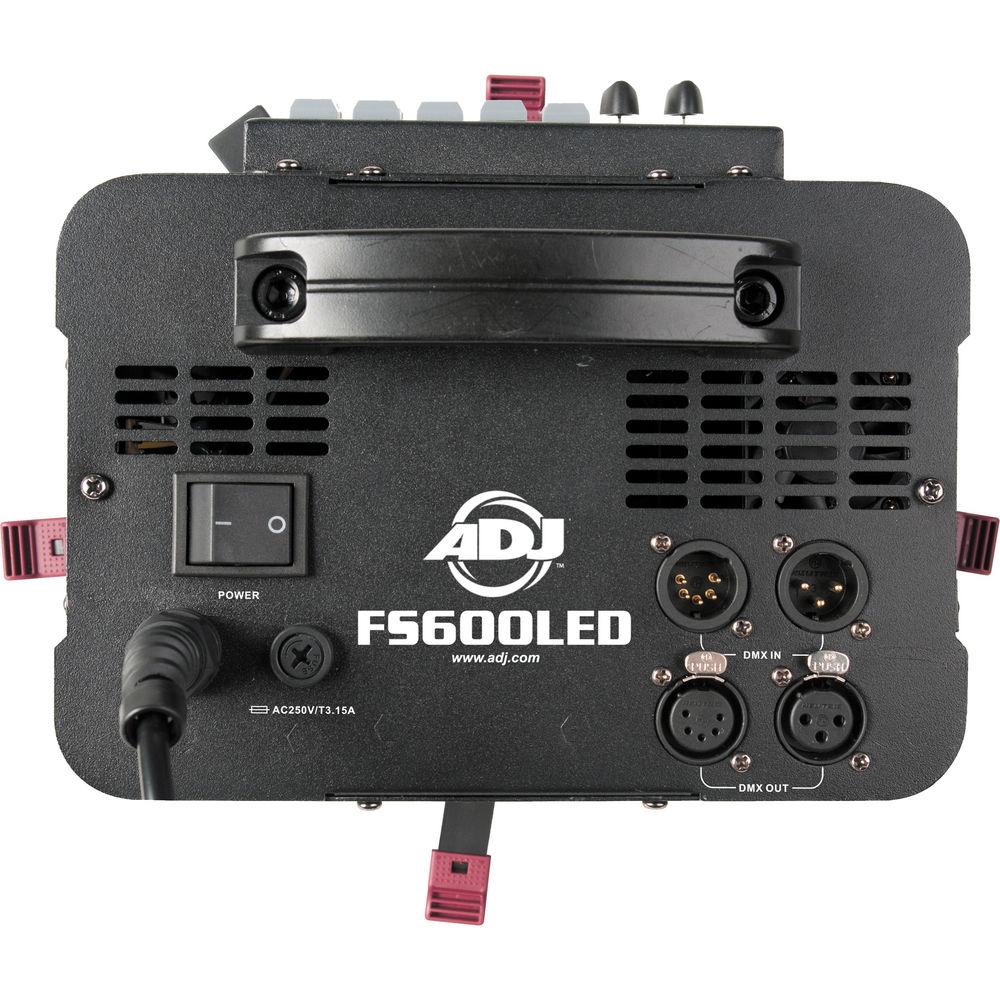

- 3 x DMX channels – 3-pin & 5-pin DMX connections
- Gobo holder and gel frame holder included
- Multi-voltage operation: 100-240 VAC, 50/60 Hz, auto-sensing
UPC: 819730010438 In the Box American DJ FS600LED 60W LED Followspot Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the American DJ FS600LED 60W LED Followspot in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersAmerican DJ FS600 LED Specs | Light Source | 1 x 60 W white LED | | Colors | 8 x Colors: white, warm white (3200° K), red, blue, green, orange, yellow, UV | | Beam Angle | 18 to 26° | | Zoom | Manual | | Photometrics | 18° at 16.4' / 5 m: 1328 lux
18° at 22.9' / 7 m: 709 lux26° at 16.4' / 5 m: 633 lux
26° at 22.9' / 7 m: 340 lux | | Throw Distance | 18°: 131.2' / 40.0 m
26°: 91.8' / 28.0 m | | Electronic Dimming | 0-100% | | Strobe | Type: electronic
Effects: standard, pulse, random | | Focus | Manual | | Iris | Manual | | Framing | Manual, 4-blade system | | Compatible Gobos | Size: 1.06" / 27 mm
Viewing Size: 0.90" / 23 mm | | DMX Channel Modes | 3 channels | | DMX Connectors | Inputs: 3-pin XLR, 5-pin XLR
Outputs: 3-pin XLR, 5-pin XLR | | Input Voltage | 100-240 VAC, 50/60 Hz, auto-sensing | | Power Consumption | 80 W maximum | | Fuse | 3 A | | Cooling | Fan | | Mounting | Single yoke bracket | | Working Position | Any safe, secure position | | Dimensions (L x W x H) | 11.50 x 19.25 x 14.75" / 290.00 x 484.00 x 370.00 mm | | Weight | 18.0 lb / 7.8 kg | | | | Package Weight | 19.5 lb | | Box Dimensions (LxWxH) | 22.0 x 14.0 x 13.25" |
