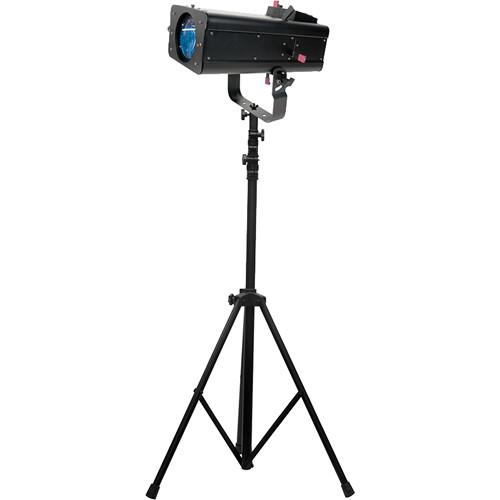

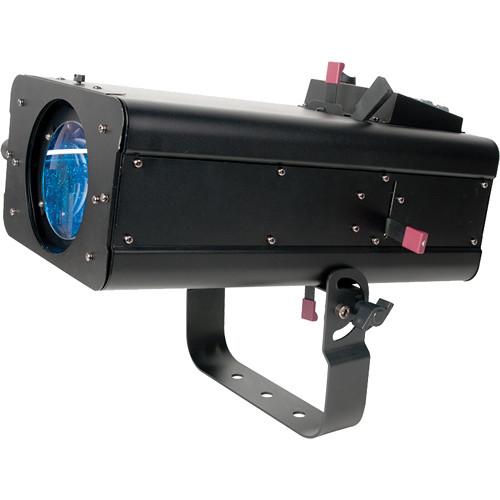

Product description The FSL101 System from American DJ comprises the FS600LED followspot and the LTS-6 tripod stand, and is an ideal solution for mobile DJs and entertainers who need to quickly position their light wherever it is needed most, in clubs, theaters, event spaces, and more. - FS600LED 60W LED Followspot The FS600LED from American DJ is a powerful followspot designed to project bright beams of color and white light in theaters, clubs, and similar locations.Combining traditional spotlight functionality with the benefits of LED technology, the FS600LED features a fan-cooled, 60W high-powered white LED which draws only 80W of power, allowing it to stay cool and to provide a longer lifespan than with traditional bulbs. It is capable of throwing spot beams in eight different colors (white, warm white, red, blue, green, orange, yellow, and UV).The fixture includes a manually adjustable iris, focus, framing shutters, and an 18 to 26° beam angle. Color selection, LED strobe effect, and 0-100% electronic dimming can be controlled via on-board sliders or via three DMX channels, letting you integrate the unit into your existing lighting setup.The FS600LED comes equipped with a gobo and a gel frame holder, a hanging bracket, and a universal auto-sensing power supply.
- Followspot with one 60W high-powered white LED source
- Fan-cooled fixture with low 80W power draw – stays cool and provides longer lifespan than traditional bulbs
- 8 Colors: white, warm white (3200K), red, blue, green, orange, yellow, UV
- Typical Throw: 131' (18°) to 92' (26°)
- Manually adjustable iris, focus, framing shutters, and 18° or 26° beam angle
- 0-100% electronic dimming and LED strobe effect controlled via on-board sliders

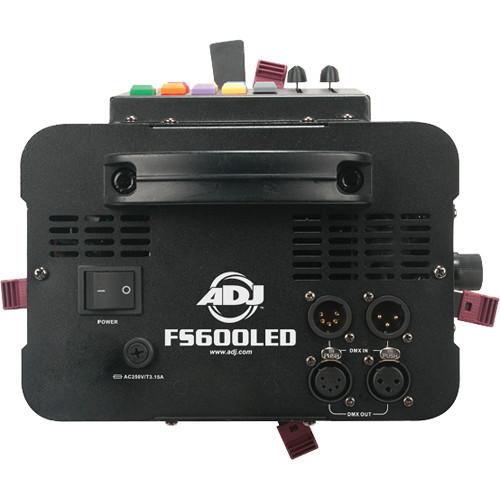

- 3 x DMX channels – 3-pin & 5-pin DMX connections
- Gobo holder and gel frame holder included
- Multi-voltage operation: 100-240 VAC, 50/60 Hz, auto-sensing
UPC: 819730010438 - LTS-6 Tripod Stand with T-Bar (9') The 9' American DJ LTS-6 Tripod Stand with T-Bar is a black stand with a single T-bar for mounting par cans, lighting fixtures, lighting effects, and other accessories. It collapses for easy transport, and weighs 11 lbs (5kg). Mounting hardware is included.
- Stand collapses easily for transport and is suitable for mobile DJs, bands, or small stage productions
- LTS-6 comes with T-bar with 8 hanging point bolts
- Includes FS-adapter - designed to mount one light at a time at the top of the stand
UPC: 640282033763 In the Box Bundle Items FS600LED 60W LED Followspot vryyqaeeftxffxsxwy LTS-6 Tripod Stand with T-Bar (9') Table of Contents
|
Upload User Manual
Have you got an user manual for the American DJ FSL101 System with FS600 LED Followspot and LTS-6 Tripod Stand in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - FS600LED 60W LED Followspot
| Light Source | 1 x 60 W white LED | | Colors | 8 x Colors: white, warm white (3200° K), red, blue, green, orange, yellow, UV | | Beam Angle | 18 to 26° | | Zoom | Manual | | Photometrics | 18° at 16.4' / 5 m: 1328 lux
18° at 22.9' / 7 m: 709 lux26° at 16.4' / 5 m: 633 lux
26° at 22.9' / 7 m: 340 lux | | Throw Distance | 18°: 131.2' / 40.0 m
26°: 91.8' / 28.0 m | | Electronic Dimming | 0-100% | | Strobe | Type: electronic
Effects: standard, pulse, random | | Focus | Manual | | Iris | Manual | | Framing | Manual, 4-blade system | | Compatible Gobos | Size: 1.06" / 27 mm
Viewing Size: 0.90" / 23 mm | | DMX Channel Modes | 3 channels | | DMX Connectors | Inputs: 3-pin XLR, 5-pin XLR
Outputs: 3-pin XLR, 5-pin XLR | | Input Voltage | 100-240 VAC, 50/60 Hz, auto-sensing | | Power Consumption | 80 W maximum | | Fuse | 3 A | | Cooling | Fan | | Mounting | Single yoke bracket | | Working Position | Any safe, secure position | | Dimensions (L x W x H) | 11.50 x 19.25 x 14.75" / 290.00 x 484.00 x 370.00 mm | | Weight | 18.0 lb / 7.8 kg | | | | Box Dimensions (LxWxH) | 22.0 x 14.0 x 13.25" | - LTS-6 Tripod Stand with T-Bar (9')
| Mounting Options | T Bar & Light Tree | | Maximum Working Height | 9' / 2.7 m | | Air Cushioned | No | | Detachable Base | No | | Leveling Leg | No | | Reverse Legs | No | | Finish | Black | | Weight | 11.0 lb / 5.0 kg | | | | Box Dimensions (LxWxH) | 44.5 x 5.0 x 4.0" |
