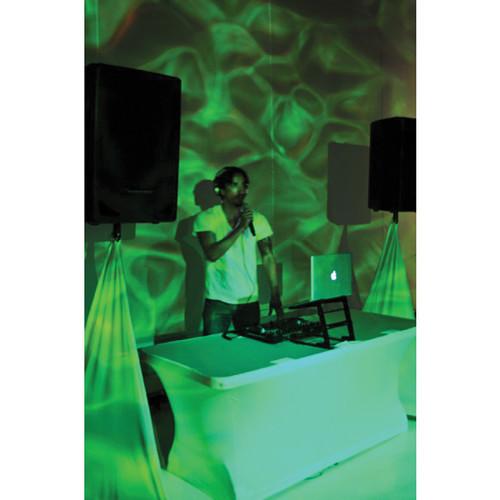

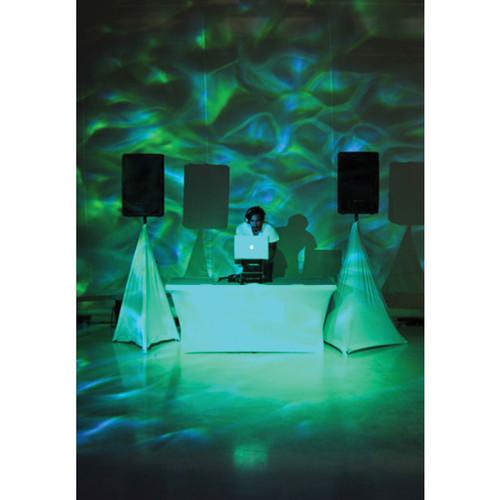

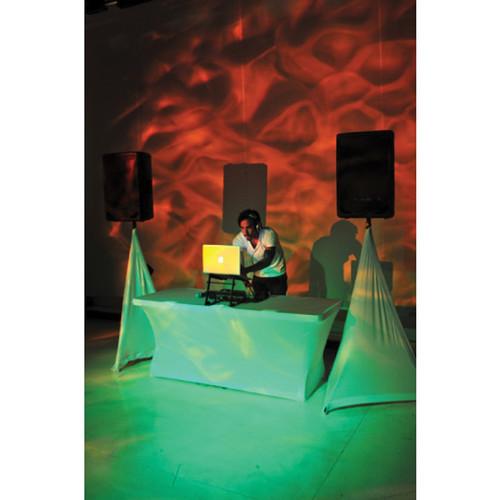

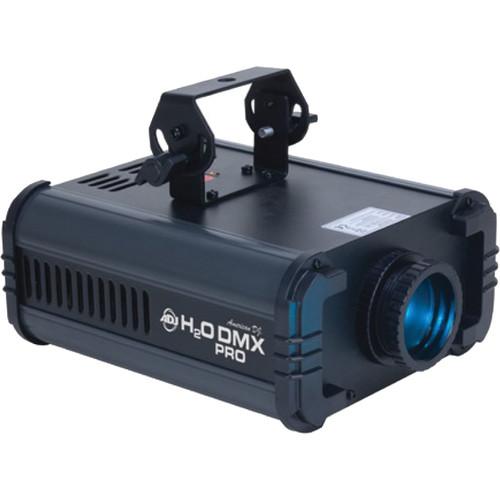

Product description The H2O DMX Pro from American DJ is a multi-colored lighting fixture that simulates the effect of flowing water. It can be used with or without fog to create stunning and realistic water effects and mood lighting in applications such as live shows, DJ booths, nightclubs, lounges, art installations, and more. The H20 DMX Pro unit features 6 dichroic colors (orange, green, blue, yellow, purple, and white), a bright 50W LED, and an adjustable beam angle between 34 and 52° (includes 2 replaceable lenses to change beam angle). The H2O DMX Pro is DMX controllable and features 3 DMX channels. Sound Activate and Master Slave Modes are also standard. Of course, as with all LED lighting, the unit runs cool so there are no cycle duties to manage. - Bright 50W LED source simulates water flowing effect
- Designed to project on walls, ceilings or floors with or without fog for mood or background lighting
- Digital DMX display with 4-button menu for easy navigation
- Equipped with 2 glass effect wheels and 1 independent dichroic color wheel
- Beam angle is 34 or 52 degrees
UPC: 819730016560 In the Box American DJ H2O DMX Pro IR LED Water Wave Effect Hanging Bracket 34° and 52° Beam Angle Lenses Limited 2-Year Warranty for LEDs Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the American DJ H2O DMX Pro IR LED Water Wave Effect in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.

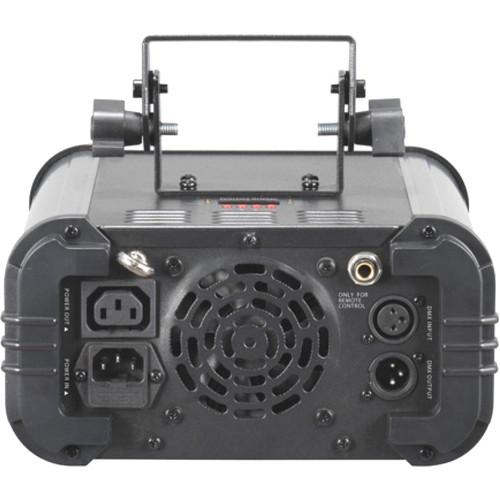

Technical parametersAmerican DJ H2O DMX Pro IR Specs | Light Source | 50 W LED | | DMX Channels | 3 | | Operational Modes | 3 Modes: DMX, stand alone, and master/slave | | Display | Digital DMX with 4-button menu | | Beam Angle | 34 or 52° | | Colors | 6 Dichroic: Orange, green, blue, yellow, purple, and white | | Input | 1/4" (6.3 mm) input for optional UC3 remote control (sold separately) | | Lux | @ 3M: 1800 (34-degree lens), 1100 (52-degree lens) | | Power Supply | Voltage: 100~240 V 50/60 Hz
Consumption: 69 W | | Fuse | 7 A | | Dimensions (LxWxH) | 11.5 x 8.75 x 4.75 (292 x 236 x 121 mm) | | Weight | 9 lb (4 kg) | | | | Package Weight | 11.4 lb | | Box Dimensions (LxWxH) | 14.4 x 12.2 x 11.2" |
