Product description The Hex Par Pak from American DJ consists of four 5P Hex LED Par lights plus a Dotz Par RF remote for creating and controlling an up-lighting and stage lighting display. The lights contain five 6-in-1 HEX + LEDs which offer smooth RGBAW and UV color mixing without casting a RGB shadow. The lights include a 30° beam angle, five operational modes, and four DMX channel modes for a variety of programming options. The remote allows you to control the lights from up to 75' away. - 5P HEX - Low-Profile RGBAW+UV LED PAR The American DJ 5P HEX is an RGBAW+UV (red, green, blue, amber, white + ultraviolet) LED PAR fixture designed to produce UV-infused color washes, with bright and smooth color mixing. With five, 10W (6-in-1) HEX LEDs and a 30° beam angle, it produces wide washes for venue uplifting or for heat-free illumination to performers on stages.Featuring a sit-flat design with convenient side-positioning of power and DMX in/out sockets, the 5P HEX can sit directly on the ground or inside a truss for up-lighting effects, ideal in applications where space is limited.Easy to use, the 5P HEX gives you plenty of creative options. It offers automated programs such as Sound-Active, RGBAW + UV Dimmer, and Color Strobe for fast setup, and a four-channel DMX mode for in-depth control. The master/slave option lets you coordinate multiple fixtures without the need for a controller.Other features include flicker-free operation (for video applications), 63 built-in color macros, a metal gel frame, and an auto-sensing power supply. You can also daisy-chain power for up to 8 units at 120V.The 5P HEX comes equipped with a dual-yoke bracket, which can be used for conventional mounting to a truss or lighting stand, or to create a variable-angle floor stand. The fixture can be wirelessly controlled via the Dotz Par RF wireless remote (available separately).
- Key Features
-
- Bright, flat-profile PAR with 5 x 10W RGBAW + UV (6-in-1) HEX LEDs
- Smooth RGBAW + UV color mixing (red, green, blue, amber, white, ultraviolet)
- Produces wide washes for uplifting venues or for providing heat-free illumination to performers on stages
- Sit-flat design with DMX and IEC AC in/out connectors on the side, for positioning fixture flat on the ground or recessed inside a truss
- 4 x DMX channel modes: 6, 7, 8 and 12
- 7 x built-in programs
- 5 x operational modes: Static Color, RGBAW + UV Dimmer, Program, Sound-Active, and DMX-controlled
- Beam angle: 30°
- 4-button DMX LED display on rear panel
- 63 x built-in color macros
- Flicker-free operation for use with video applications
- LED pulse and strobe effect
- Electronic dimming: 0-100%, with five dimmer curves (Standard, Stage, TV, Architectural, & Theater)
- Standalone or master/slave configuration
- Daisy-chain power for up to 8 units at 100V (21 units maximum for 240V)
- Metal gel frame – diffuse beam angle with optional filters (available separately)
- Fixture equipped with dual-yoke bracket to hang on truss, mount on a wall, or set on the ground
- Compatible with the Dotz Par RF wireless remote (available separately)
- Multi-voltage operation: 100-240 VAC, 50/60 Hz, auto-sensing
- Dotz PAR RF Remote The Dotz PAR RF Remote from American DJ allows you to wirelessly control the built-in programs on your Dotz PAR and other selected ADJ fixtures from a distance up to 75'.
- Blackout – pressing this button blacks out the fixture
- Fade – this button activates the Color-Fade program
- Color – this button activates the Static-Color mode (use the "+" and "-" buttons to scroll through the colors)
- Sound-Active – this button activates Sound-Active mode
- Auto-Run – this button activates Auto-Run mode (use the "+" and "-" buttons to adjust the speed of the effect)
- Programs – this button activates the built-in Program modes (use the "+" and "-" buttons to scroll through the programs)
- Compatible With:
-
- Dotz PAR
- Dotz PAR 100
- 5P Hex
- 5P Hex Pearl
- 12P Hex
- 12P Hex Pearl
- Wifly EXR Dotz PAR
- UV Flood 36

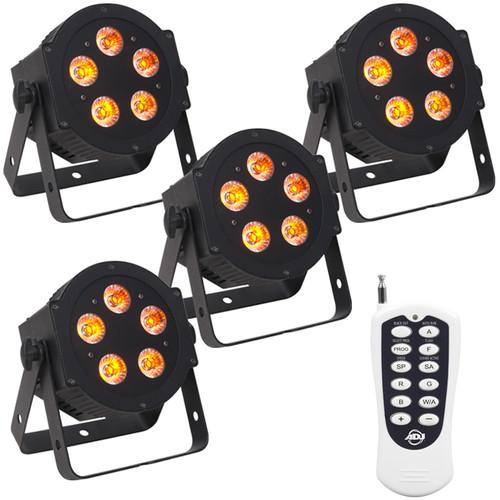

UPC: 819730015181 In the Box Bundle Items 4 x 5P HEX - Low-Profile RGBAW+UV LED PAR ufrztttdt Dotz PAR RF Remote Table of Contents
|
Upload User Manual
Have you got an user manual for the American DJ Hex Par Pak Bundle in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - 5P HEX - Low-Profile RGBAW+UV LED PAR
| Light Source | 5 x 10 W RGBAW + UV (6-in-1) HEX LEDs - red, green, blue, amber, white + ultraviolet
UV Wavelength: 395 nm
Refresh Rate: 3.6 kHz | | Life Expectancy | 50,000 hours | | Illuminance | 1250 lux at 6.5' (2 m)
318 lux at 13.1' (4 m) | | Beam Angle | 30° | | Colors | RGBAW + UV color mixing | | Operational Modes | Static Color, RGBAW + UV Dimmer, Program, Sound-Active, DMX-controlled | | Programs and Effects | 7 built-in programs
63 built-in color macros
LED pulse and strobe effect | | Dimming | 0-100%, flicker-free
5 x dimmer curves (Standard, Stage, TV, Architectural, Theater) | | DMX Channel Modes | 6, 7, 8, 12 | | Display | 4-button DMX LED display | | Connectors | DMX: 3-pin XLR, in/out
Power: IEC in/out | | Wireless Control | Dotz Par RF wireless remote (available separately) | | Mounting | Dual-yoke bracket | | Certifications | ETL-approved | | Power Linking | Up to 8 units at 100 V
Up to 21 units at 240 V | | Power | 100-240 VAC, 50/60 Hz | | Power Consumption | 49 W, maximum (all LEDs full on) | | Dimensions | 8.25 x 4 x 8.75" / 210 x 100 x 222 mm | | Weight | 5 lb / 2 kg | | | | Box Dimensions (LxWxH) | 11.1 x 9.3 x 5.8" | - Dotz PAR RF Remote
| Compatible With | - Dotz Par
- Dotz Par 100
- 5P Hex
- 5P Hex Pearl
- 12P Hex
- 12P Hex Pearl
- Wifly EXR Dotz Par
- UV Flood 36
| | Transmission Range | 75' (23 m) | | Battery | A23 / 12 V | | | | Box Dimensions (LxWxH) | 6.4 x 2.6 x 1.15" |
