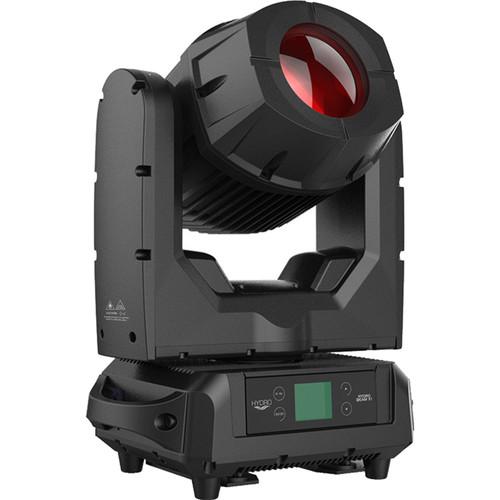

User Manual for American DJ Hydro Beam X1 - IP65 Moving Head Fixture Click to enlarge the picture
Contents of the user manual for the American DJ Hydro Beam X1 -
- Product category: DJ & Effect Lights American DJ
- Brand: American DJ
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for American DJ DJ & Effect Lights
|
User manual for the American DJ Hydro Beam X1 - contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any American DJ product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official American DJ user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a American DJ product will considerably shorten its lifespan!
|
Product description The IP65-rated American DJ Hydro Beam X1 is a professional moving-head fixture designed for indoor or outdoor use and is well suited for events, festivals, touring companies, rental houses, houses of worship, and more. From the dusty deserts of Nevada to the rainy fields of England, this fixture can withstand all the elements including sand, dust, moisture, and liquids. Powered by a 100W Osram Sirius HRI lamp, the fixture produces a razor sharp 3° beam. The lamp is also rated for 6000 hours, ensuring a long life without worry.The Hydro Beam FX1 offers advanced, high-performance features, such as a 16-facet circular prism with overlay and an independent frost filter for wash effects. The color wheel offers twelve colors plus CTB and UV, while the gobo wheel features eleven gobos and four gobo reducers. Additional features include various strobe speeds and 0-100% smooth dimming. The American DJ Hydro Beam X1 ships with a power cord and omega brackets. - Effects
-
- 12 colors plus CTB and UV + open
- 11 gobos, four gobo reducers + open
- 3° beam
- Independent frost filter for wash effects
- 16-facet prism (rotates in either direction)
- Various strobe speeds
- Control
-
- Electronic dimming 0-100%
- 540° pan and 270° tilt
- Selectable DMX channel modes: 13 or 14 channels
- RDM control
- With wired digital communication network
- OLED display
- Connectors
-
- Data in/out: 3-pin DMX IP65 (with rubber protective covers over connections)
- Power in/out: powerCON IP65 (with rubber protective covers over connections)
In the Box American DJ Hydro Beam X1 - IP65 Moving Head Fixture Power Cord 2 x Omega Brackets Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the American DJ Hydro Beam X1 - IP65 Moving Head Fixture in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersAmerican DJ Hydro Beam X1 Specs | Light Source | Lamp: Osram Sirius HRI 100W
Life Expectancy: 6000 Hours
Color Temperature: 9000K
CRI: 60
Beam Angle: 3° | | Filter | Independent Frost Filter | | Color Wheel | 12 Colors + CTB & UV + Open | | Gobos | Metal GOBO Wheel: 11 GOBOs, 4 GOBO Reducers + Open | | Prism | 16-Facet Prism | | Pan/Tilt | Pan: 540°
Tilt: 270° | | Electronic Dimming | 0-100% | | Operation Modes | DMX512 or RDM
Wired Digital Communication Network | | DMX Connectors | Input: XLR 3-Pin with Rubber Protective Covers over Connections
Output: XLR 3-Pin with Rubber Protective Covers over Connections | | DMX Channel Modes | 13 or 14 Channels | | Protection Rating | IP65 | | Power Connectors | Input: powerCON with Rubber Protective Covers over Connections
Output: powerCON with Rubber Protective Covers over Connections | | Power | Power Voltage: 100 to 240 VAC, 50/60Hz (Multi-Voltage)
Power Consumption: 199 W @ 120 V; 192 W @ 220 V | | Dimensions (L x W x H) | 12.0 x 9.0 x 19.0" / 304.8 x 228.6 x 482.6 mm | | Weight | 34.5 lb / 15.5 kg |
