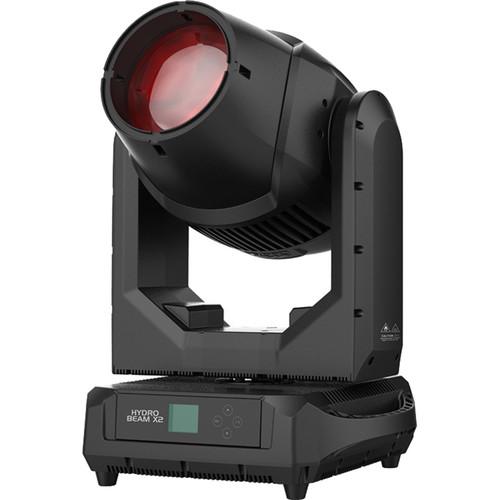

User Manual for American DJ Hydro Beam X2 - IP65 Moving Head Fixture Click to enlarge the picture
Contents of the user manual for the American DJ Hydro Beam X2 -
- Product category: DJ & Effect Lights American DJ
- Brand: American DJ
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for American DJ DJ & Effect Lights
|
User manual for the American DJ Hydro Beam X2 - contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any American DJ product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official American DJ user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a American DJ product will considerably shorten its lifespan!
|
Product description The IP65 rated American DJ Hydro Beam X2 is a professional moving head fixture designed for indoor or outdoor use and is well suited for events, festivals, touring companies, rental houses, houses of worship, and more. From the dusty deserts of Nevada to the rainy fields of England, this fixture can withstand all the elements including sand, dust, moisture, and liquids. Powered by a 370W Osram Sirius HRI lamp, the fixture produces a razor sharp 3° beam. The lamp is also rated for 6000 hours, ensuring a long life.The Hydro Beam FX2 offers advanced, high-performance features, such as an 8-facet linear prism, 8-facet circular prism, and independent frost filter for wash effects. The color wheel offers ten colors + 3200K & 5600K + open, while the gobo wheel features five glass gobos, three metal gobos, and three gobo reducers + open. Additional features include various strobe speeds and 0-100% smooth (16-bit) dimming. The fixture is controllable via DMX512 (14/16 channel modes) and RDM. Data connection is via 5-pin DMX IP65, while power connections use standard powerCON IP65 connectors. Both data and power connectors feature rubber protective covers. The American DJ Hydro Beam X2 ships with a power cord and omega brackets. - Effects
-
- 10 colors + 3200K & 5600K + open
- 5 glass GOBOs, 3 metal GOBOs, and 3 GOBO reducers + open
- 3° beam
- Independent frost filter for wash effects
- 8-facet linear prism and 8-facet circular prism
- Various strobe speeds
- Control
-
- Electronic dimming 0-100%
- 540° pan and 270° tilt (16-bit resolution)
- Selectable DMX channel modes: 14 or 16 channels
- RDM control
- With Wired Digital Communication Network
- OLED display
- Connectors
-
- Data in/out: 5-pin DMX IP65 (with rubber protective covers over connections)
- Power in/out: powerCON IP65 (with rubber protective covers over connections)
In the Box American DJ Hydro Beam X2 - IP65 Moving Head Fixture Power Cord 2 x Omega Brackets Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the American DJ Hydro Beam X2 - IP65 Moving Head Fixture in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersAmerican DJ Hydro Beam X2 Specs | Light Source | Lamp: Osram Sirius HRI 370W
Life Expectancy: 6000 hours
Color Temperature: 8000K
CRI: 70
Beam Angle: 3° | | Filter | Independent frost filter | | Color Wheel | 10 colors + 3200K & 5600K + open | | Gobos | 1 GOBO Wheel with 5 glass GOBOs, 3 Metal GOBOs, and 3 GOBO Reducers + Open
All GOBOs Rotate and are Removable
GOBO Outside Diameter: 0.4" / 9.8 mm
GOBOs Image Diameter: 0.3" / 6.5 mm | | Prism | 8-Facet Linear Prism
8-Facet Circular Prism | | Pan/Tilt | Pan: 540°
Tilt: 270°
Pan/Tilt Resolution: 16-bit | | Electronic Dimming | 0-100% | | Strobe Rate | Various Speeds | | Operation Modes | DMX512 or RDM
Wired Digital Communication Network | | DMX Connectors | Input: XLR 5-Pin with Rubber Protective Covers over Connections
Output: XLR 5-Pin with Rubber Protective Covers over Connections | | DMX Channel Modes | 14 or 16 channels | | Power Connectors | Input: powerCON with rubber protective covers over connections
Output: powerCON with rubber protective covers over connections | | Protection Rating | IP65 | | Power | Power Voltage: 100 to 240 VAC, 50/60 Hz (Multi-Voltage)
Power Consumption: 490 W | | Dimensions (L x W x H) | 16.0 x 13.0 x 25.0" / 406.4 x 330.2 x 635.0 mm | | Weight | 64.0 lb / 29.0 kg |
