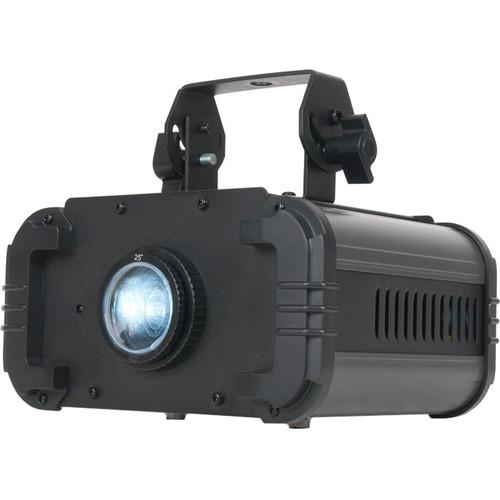

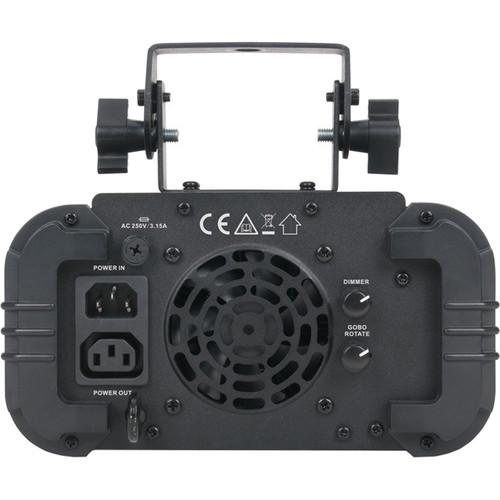

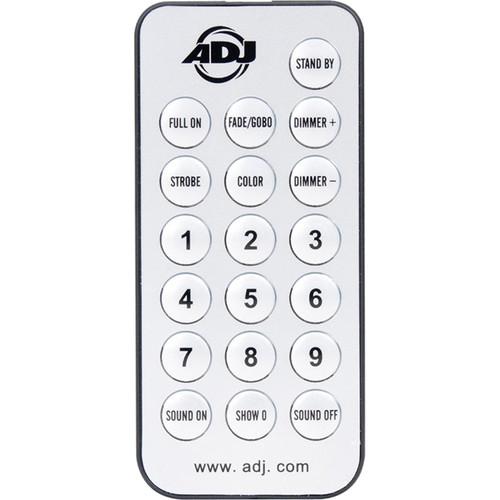

Product description The Ikon IR Gobo Projector from American DJ is a standalone, rotating gobo projector powered by a bright 80W (7500K) white LED. You can adjust the LED brightness and gobo rotation using the buttons provided on the rear of fixture or by the included wireless UC IR remote control. Although the projector comes with four metal gobos, you can also use any custom gobo of your choice.Ikon IR comes with three interchangeable lenses that produce different beam angles (25°, 32°, or 43°), making it suitable for a wide variety of applications. The projector is designed for mobile DJs, clubs, bands, roller rinks, and more. It is also suitable for theaters, studios, retail stores, and similar locations. UPC: 819730017161 In the Box American DJ Ikon IR Gobo Projector IR Remote for Inno Pocket Spot stedzuqwadccs 3 x Lens 4 x Gobo Pattern Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the American DJ Ikon IR Gobo Projector in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersAmerican DJ Ikon IR Specs | LED | 1 x 80 W | | Colors | White | | Beam Angle | 25 / 32 / 43° | | Gobos | Size: 2.1" (5.4 cm)
Viewable: 1.9" (5.0 cm) | | Power Cord Daisy Chain | 9 fixtures maximum (120 V)
17 fixtures maximum (230 V) | | Duty Cycle | None | | Voltage | 100 to 240 V, 50/60 Hz | | Fuse | 3.15 A | | Power Consumption | 74 W | | Dimensions | 9.5 x 9.5 x 8.5" (23.6 x 23.6 x 21.5 cm) | | Weight | 6.6 lb (3.0 kg) | | | | Package Weight | 10.3 lb | | Box Dimensions (LxWxH) | 12.2 x 12.1 x 11.1" |
